Test Navigator View

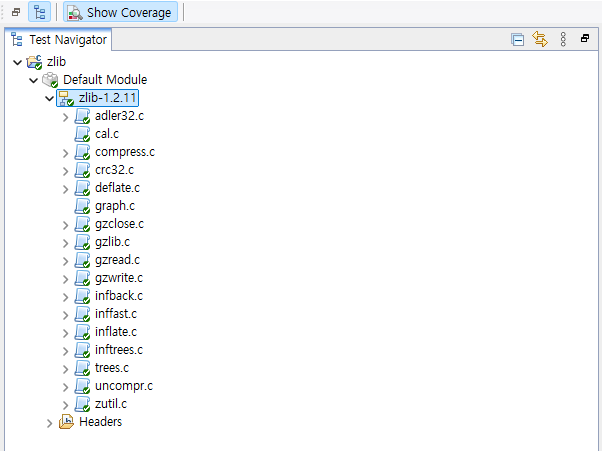

The Test Navigator View shows the hierarchy structure of the projects and the test models under the projects included in the workspace.

The Test Navigator View does not occupy any space but remains the minimized state. If you select [Test Navigator] in the dashboard, the Test Navigator View is located above the Source Code Editor.

Icon

Icon	Description(*: created after analysis)
	Open project
	Closed project
	Module
	Source root
	Source file
	*Global variable
	*Function
	*Header folder
	*Header file
	*System header file

Toolbar menu

Menu	Description
Link with Selection	Highlights the items selected in the other view.
Collapse All	Hides all tree nodes.

Icon overlay

Icon overlay	Description
	Analyzed
	Changed after analysis

Collect Project Log

This feature collects the logs left in use of CT 2024.12 on a project basis in batch and exports them.
When you contact Technical support due to an error occurred, please send us the collected compressed file so that we can solve the problem more quickly.

When you select and right-click a project, [Collect project log] item is indicated.
