Unit Test View

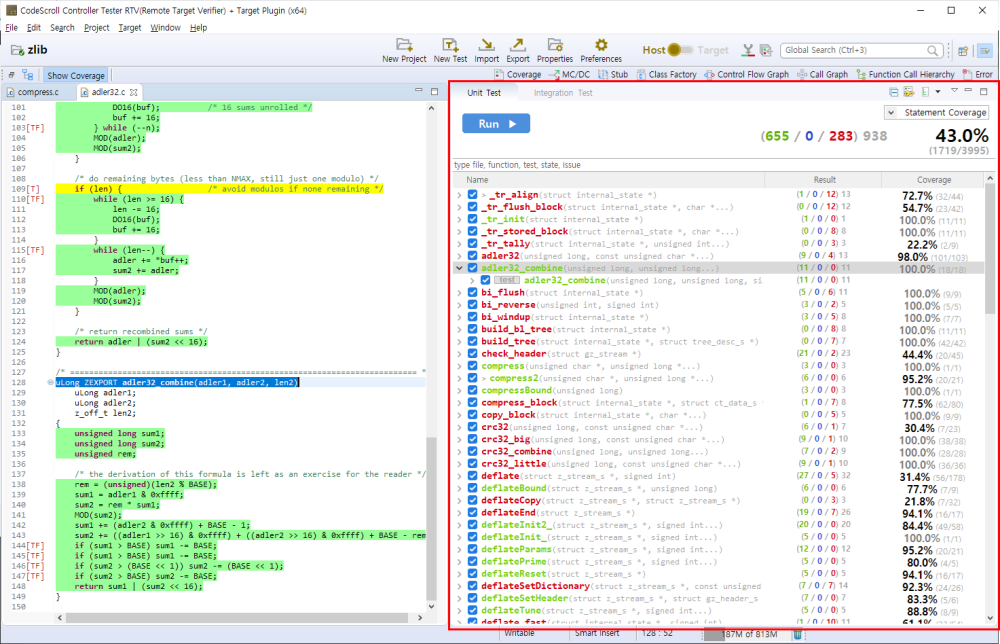

The Unit Test View section is located on the right of the screen. The Unit Test View combines the test and coverage information and provides it in a single view.

Toolbar menu in the Unit Test View

Toolbar icon	Description
Fault Localization	Identify the location of defects or failures from failed test cases
Expand All	Shows all test view tree.
Collapse All	Hides all test view trees.
Sort by Unique Test Name	Sort by unique test name.
Show as Unique Test Name	Displays by unique test name.
Total	Displays all the tests.
Failure/Error	Displays only the tests that the test result is Failure/Error.
Failure	Displays only the tests that the test result is Failure.
Error	Displays only the tests that the test result is Error.
Success	Displays only the tests that the test result is Success.
Function changed	Displays only the tests that the function to be tested has been changed.
Run not guaranteed	Displays only the tests that the test execution is not ensured.
Host/Target result different	Displays only the test that the host result and the target result are different.

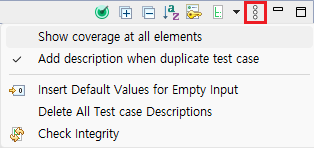

Pull-down menu in the Unit Test View

Menu name	Description
Show coverage at all elements	Displays the coverage in all items. (function, test, test case)
Add description when duplicate test case	Adds original test case number on duplicated test case.
Insert Default Values for Empty Input	When input data are empty, inserts default values.
Delete All Test case Descriptions	Delete test case descriptions all together.
Check Integrity	Checks integrity about functions and stubs. Then, reset test if it needs.

• Insert Default Values for Empty Input


  Variable type	Default value
  string	(empty string)
  without string	0

*For [Test reconfiguration], refer to [Source Code Modification and Test Reconfiguration]

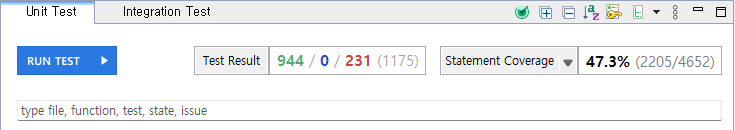

Dashboard in the Unit Test View

Menu	Description
	Runs unit tests.
	Shows success, failure, error and total of test case.
	Selects the coverage type to be displayed in the Unit Test View. (statement, branch, MC/DC, function call)
	Shows the selected kind of full coverage.

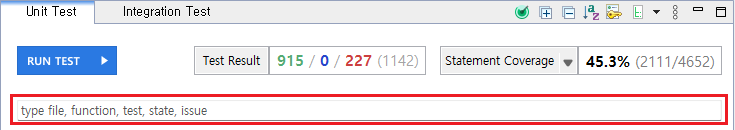

Search

In the Unit Test View, you can search functions, tests and test cases by file, function, test, status (success, failure, error) and issue name.

Status search keyword

In the Unit Test View, you can filter the tests that are displayed by the status search keyword. It provides searchable keyword recommendation and auto-complete function.

Keyword	Description
%TEST_SUCCESS%	Test success
%TEST_FAILURE% %TEST_ERROR%	Test failure/error
%TEST_FAILURE%	Test failure
%TEST_ERROR%	Test error
%TEST_HAS_NOT_FUNCTION%	Function changed
%TEST_NOT_GUARANTEE%	Run not guaranteed
%TEST_RESULT_DIFFERENT%	Host/Target result different

*‘Run not guaranteed’ is a case where test code is generated, but there is no guarantee that it will run normally. This is the case when using a type that is difficult to specify as a parameter or return value.

Structure of the Unit Test View

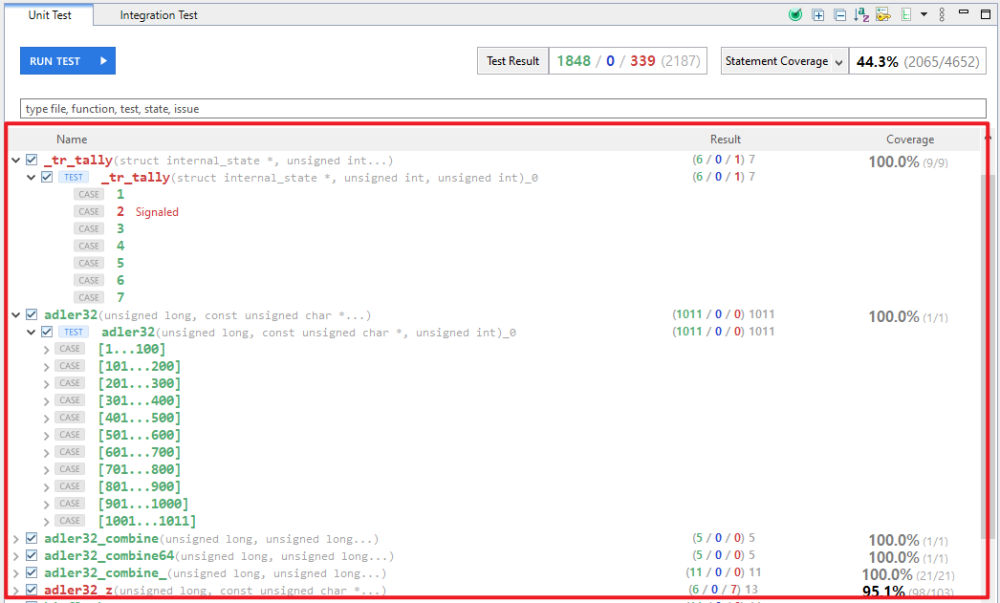

The Unit Test View presents the hierarchy structure of [Function] > [Test] > [Test case]. If there are more than 100 test cases in a test, they are grouped in groups of 100 to represent a group.

Item icons in the Unit Test View

Item icon	Description
None	Function
	Test
	Scenario test
	Test case, Test case group

Item status color in the Unit Test View

The execution information of functions, tests, and test cases in the Unit Test View is represented by colors.

Color	Description
Green	Function/Test: If the execution result of all the test cases under it is success. Test case: The result of execution is success.
Blue	Function/Test: If only test cases with failure and no test cases with errors exist under it. Test case: The result of execution is failure.
Red	Function/Test: If test cases with error exist under it. Test case: The result of execution is error.
Orange	Function/Test: All test cases have not been executed under it and test cases that are not guaranteed to run exist. Test case: Run not guaranteed.
Black	Function/Test: All test cases under it have not been executed. Test case: Not been executed.

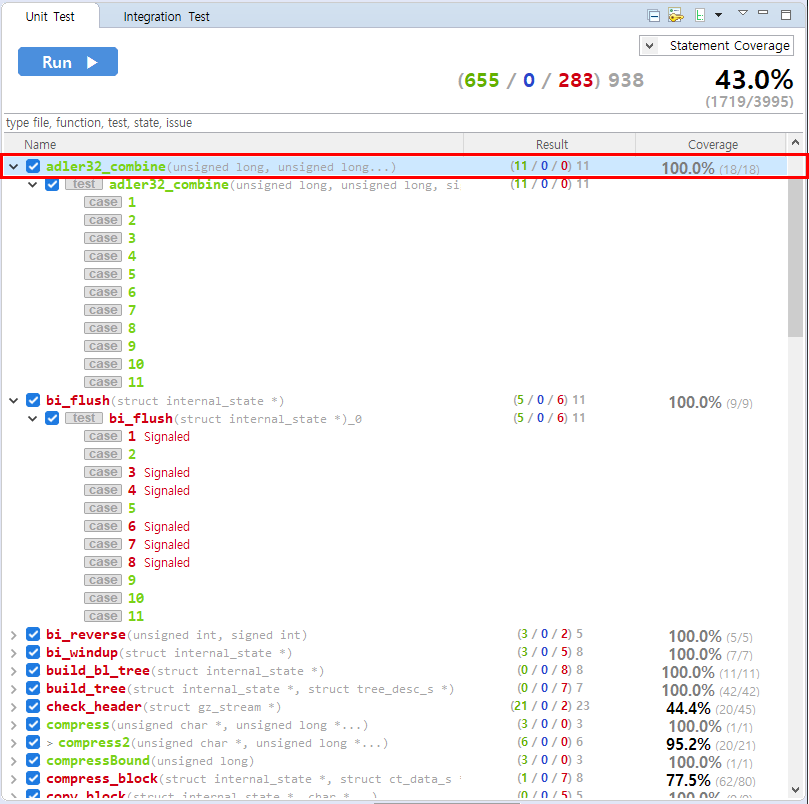

Function

The functions provide the function name, the coverage and the test case execution results (success, failure, error and total).

*For the coverage for each function, the test execution result of the other function may be applied depending on the call relationship between functions.

Double-click on a function to check the location of the function in the Source Code Editor.

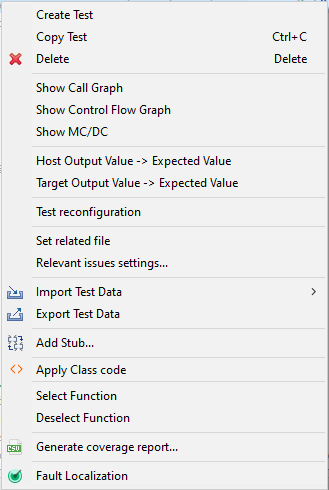

Context menu of the function

Context menu	Description
Create Test	Creates a test of the selected function.
Copy Test	Copies tests of the selected function.
Delete	Deletes tests and test cases of the selected function.
Show call graph	Shows the function call graph of the selected function.
Show Control Flow Graph	Shows the control flow graph of the selected function.
Show MC/DC	Shows MC/DC of the selected function.
Host Output Value -> Expected Value	Pastes the host output value to the expected value.
Test reconfiguration	Reconfigure test information.
Set related file	Selects the files containing that test.
Relevant issues settings	Associates the selected test with the issue of the management tool.
Import Test Data	Imports the test data saved in local.
Export Test Data	Exports the test data to local.
Add Stub	Adds the stub to the selected test.
Apply Class Code	Apply the class code generated in the Class Factory View to the function.
Select Function	Selects the checkbox of all the functions selected by a mouse.
Deselect Function	Deselects the checkbox of all functions selected by a mouse.
Generate coverage report	Exports the selected test coverage to the selected path.
Fault Localization	Identify the location of defects or failures from failed test cases.

*For [Test reconfiguration], refer to [Source Code Modification and Test Reconfiguration]

Test

The test provides coverage, test case execution results(success, failure, error, total).
Double-click on a test to open its Test Editor.

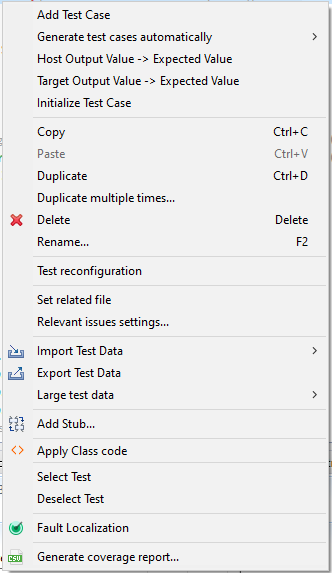

Context menu of the test

Context menu	Description
Add Test Case	Adds the test case to the unit test selected.
Generate test cases automatically	Creates the test case in various ways.
Host Output Value -> Expected Value	Pastes the host output value to the expected value.
Initialize Test case	Delete all the test cases.
Copy	Copies the test and test case.
Paste	Pastes the test and test case.
Duplicate	Duplicates the test and test case.
Duplicate multiple times	Duplicates tests and test cases as many as the number entered.
Delete	Deletes the test and test case.
Rename	Modifies the test name.
Test reconfiguration	Reconfigure test information.
Set related file	Selects the files containing that test.
Relevant issues settings	Associates the selected test with the issue of the management tool.
Import Test Data	Imports the test data saved in local.
Export Test Data	Exports the test data in local.
Large test data	Exports it locally or registers the file written by the user to the target test as a test case.
Add Stub	Adds the stub to the selected test.
Apply Class Code	Apply the class code generated in the Class Factory View to the test.
Select Test	Checks all checkbox of the tests selected.
Deselect Test	Checks all checkbox of the tests selected.
Fault Localization	Identify the location of defects or failures from failed test cases.
Generate coverage report	Exports the selected test coverage to the selected path.

• Rule for importing test data
  When importing the test data, if you select multiple test data numbered with the test name, it imports those files by merging them.

*For [Test reconfiguration], refer to [Source Code Modification and Test Reconfiguration]

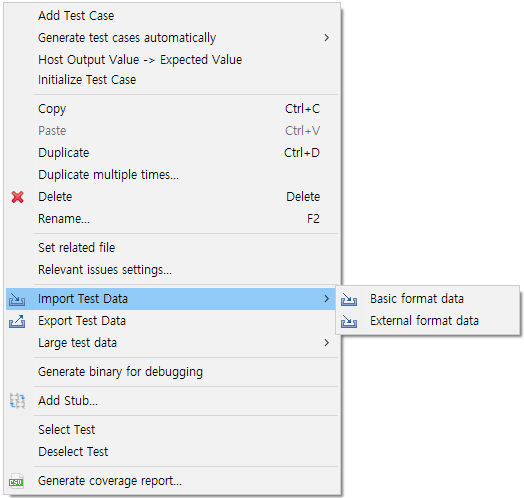

Import test data

You can import the test data in various formats (csv, xlsx, txt, json).

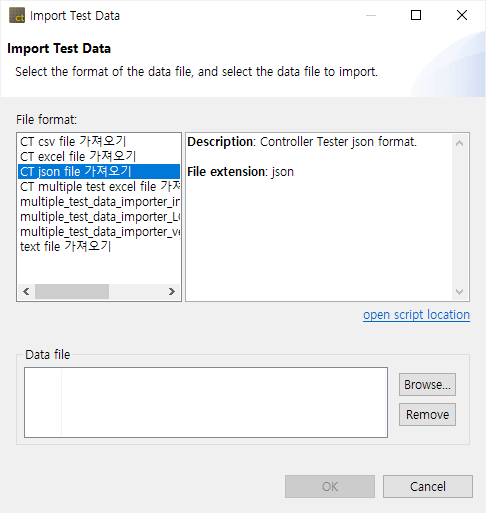

1. In the context menu of the Unit Test View, click [Import Test Data] and select either [Basic format data] or [External format data].
2. If you select [Basic format data], the test data with the format (csv) exported from the CT 2023.12 is imported.
3. If you select [External format data], the test data is imported from the files in various formats (csv, xlsx, txt, json).

Generate test cases automatically

It creates a test case by using [Flat/Pairwise/Random combination], [Generates with Function Generator], and [Search-based Test case Generation (CS Labs)].

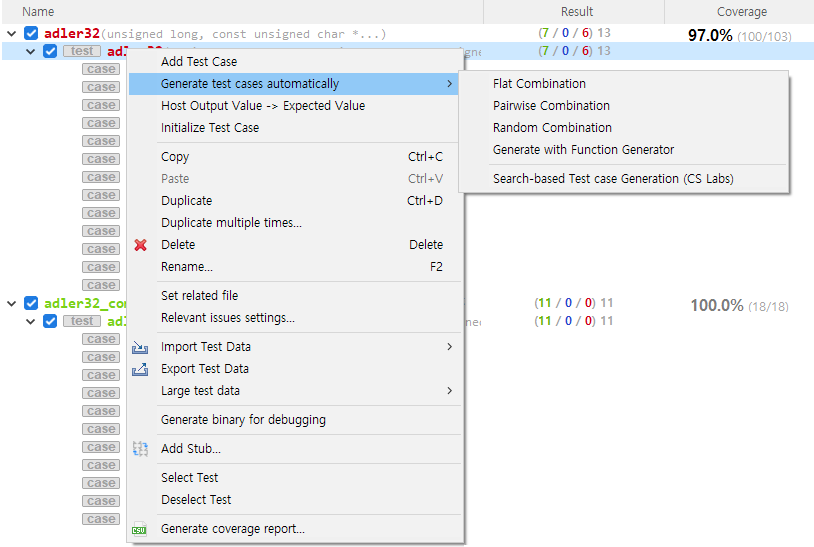

1. In the context menu of the Unit or the Integration Test View, click [Generate test cases automatically] and select one among [Flat Combination], [Pairwise Combination], [Random Combination], [Generate with Function Generator] and [Search-based Test case Generation (CS Labs)].

Method	Description
Flat	Combines simply based on variables having the largest number of test data.
Pairwise	Combines so that each selected parameter data is paired at least once with the parameter data other than itself. ※ The number of variable partitions must be more than 2 and less than 52.
Random	Combines the test data as many as the number of test cases that the user defines any value between the minimum value and the maximum value for the variable partition of input parameters.
Generate with Function Generator	Creates a test case by using six function types. (Ramps, Random, Range, Sine, Toggle, and Single Value)
Search-based Test case Generation (CS Labs)	Creates a test case by using AVM, which is a local search algorithm. ※ Currently, only C language is supported.

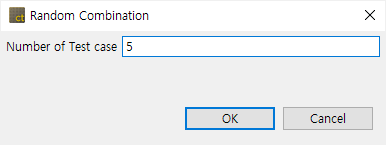

2. If you select [Random combination], the Random combination window is displayed so that the user can enter the number of test cases.

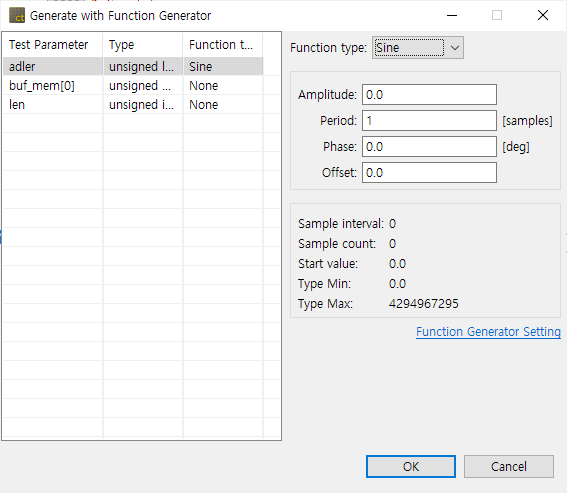

3. If you select [Generate with Function generator], you can select the function type (Ramps, Sine, Random, Toggle, Range, Single value and None) and change the settings of the function selected via the settings of the function generator. In the properties window of the project, you can set the function generator information in [Test] > [Generate test cases automatically] > [Function Generator].

a. Common settings

You can change the value in [Project] > [Properties] with the setting value common to each function.

Setting	Description
Sample interval	The interval of samples to be sampled from the function.
Number of sample	The number of samples to be sampled from the function(The number of test cases).
Start value	The default value at which the function is started (the values are created based on the start value).
Minimum value of type	The minimum value of variable partition. (If the return value of the function is less than the minimum value of type, the minimum value of type is returned.)
Maximum value of type	The maximum value of variable partition. (If the return value of the function is greater than the maximum value of type, the maximum value of type is returned.)

b. Ramps function

It is a function that creates a pulse by using Pre, Post and Hold values. If the number of samples is greater than the period of the function, the function is called recursively.

Setting	Description
Pre delay	The time to last Pre/Post sample value.
Rise samples	The time to rise from Pre/Post sample value to Hold sample value.
Hold samples	The time to last Hold sample value.
Fall samples	The time to fall from Hold sample value to Pre/Post sample value.
Post delay	The time to last Pre/Post sample value.
Pre/Post delay value	Pre/Post delay sample value.
Hold value	Hold sample value.

c. Random function

It is a function that creates a random value between the minimum value (Min) and the maximum value (Max).

Setting	Description
Min	The minimum value of random range.
Max	The maximum value of random range.

d. Range function

It is a function that creates values that increments or decrements by a certain interval (Step Size) between the minimum value of type and the maximum value of type.

Setting	Description
Step size	The size of increment or decrement value.
Hold	The number of times that the Step size holds.
Rising	The function type that rises by the Step size. Ex) if the step size is 30, 0,30,60……
Falling	The function type that falls by the Step size. Ex) if the step size is 30, 100,70,40……
Alternate	If the result value of function meets the minimum/maximum value of type, the function type that changes to rise or fall. Ex) if the step size is 30 and the maximum/minimum value are 0~100, 0,30,60,90,60,30,0……

e. Sine function

It is a function that creates Sine value. If the number of samples is greater than the period of the function, the function is called recursively.

Setting	Description
Amplitude	The amplitude of Sine function.
Period	The period of Sine function.
Phase	The phase of Sine function.
Offset	The offset of Sine function.

f. Toggle function

It is a function that creates FirstValue and SecondValue repeatedly.

Setting	Description
First value	The first value that is repeated in Toggle function.
Second value	The second value that is repeated in Toggle function.

g. SingleValue function

It is a function that returns only a constant single value.

Setting	Description
Value	The value to be created.

h. None

It does not create a function.

Relevant issues settings

It associates the selected test with the issue in the issue management tool registered. The CT 2023.12 supports the following issue management tools: JIRA, Trac, Redmine, Mantis, Bugzilla.

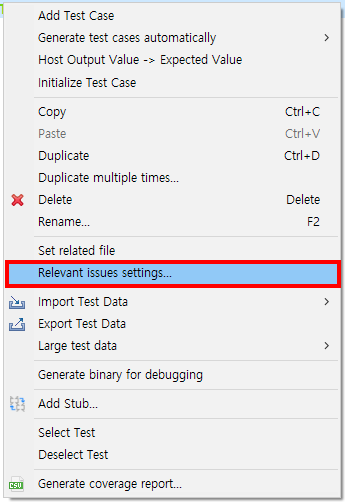

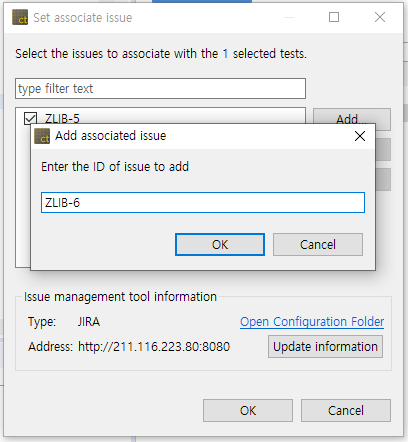

1. In the context menu of Unit Test View, click [Relevant issues settings…].

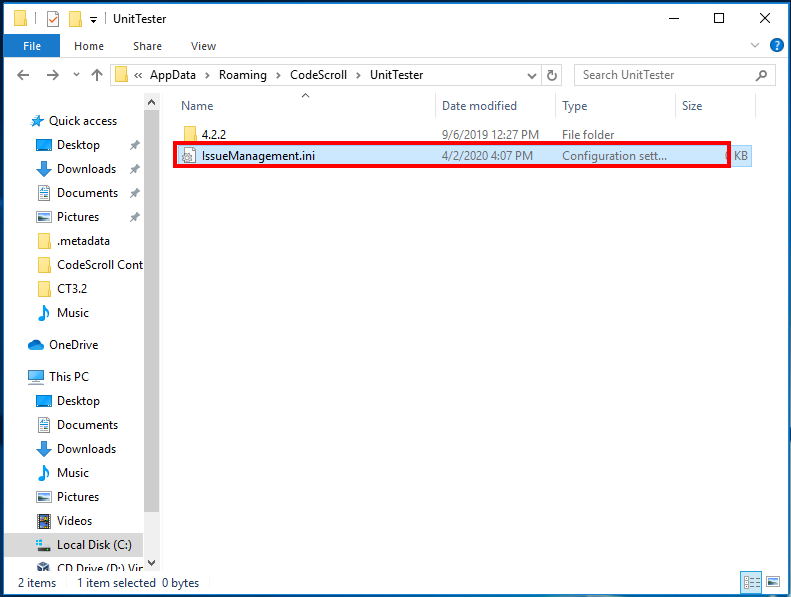

2. Enter the information of the issue management tool in the configuration file (IssueManagement.ini).

3. Add the issues to be associated with the test.

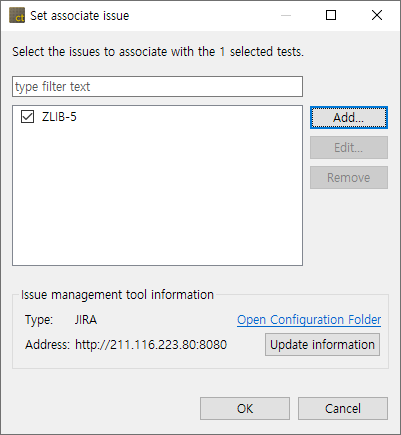

4. Check the checked issue list and click [OK].
