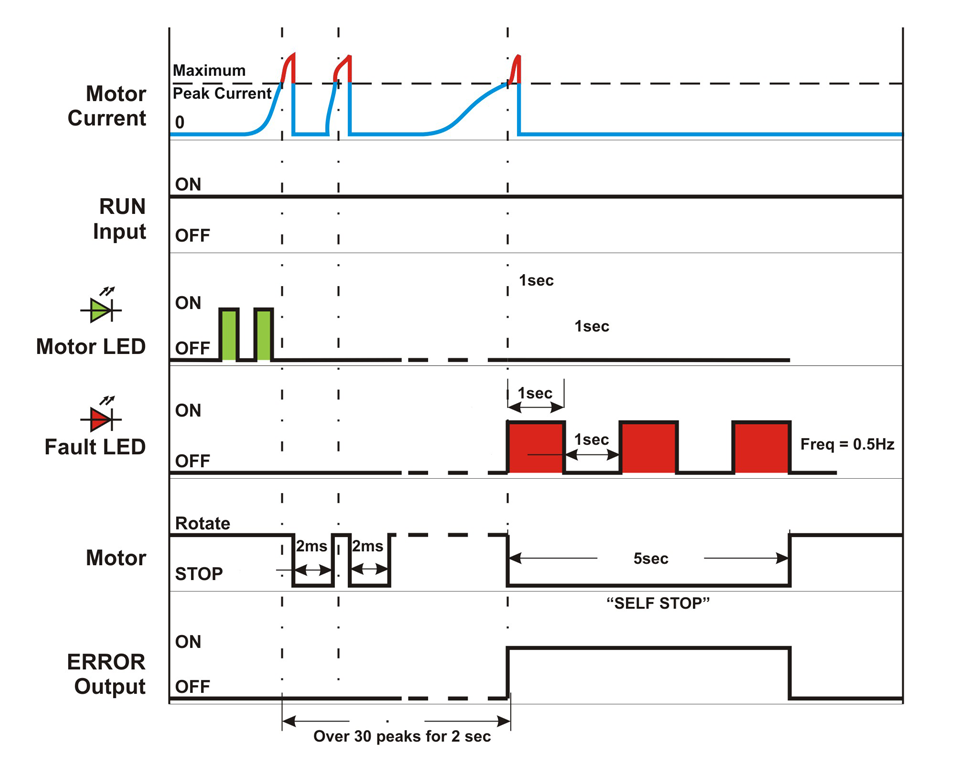

*Diagram depicts operation when CONFIG DIP SW 4 is set to ON (Automatic Reset) which causes the motor to automatically restart after forced stop. If CONFIG DIP SW 4 is set to OFF (Manual Reset), then the RUN signal must be toggled OFF then ON again to restart the motor.
