Tube Materials and Lagging Options are identified as ⑤ in the Part Number Definition topic

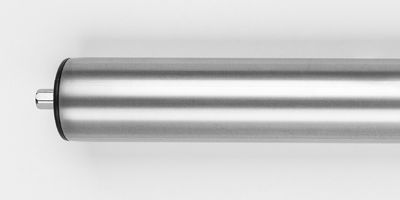

| Z Steel – ZAM Plating ● No Lagging ● Standard for 48.6 & 50 mm Diameters |
 |

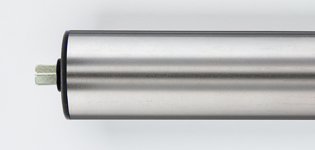

| A Steel – Unichrome Plating ● No Lagging ● Standard for Roller Diameter 60 |
 |

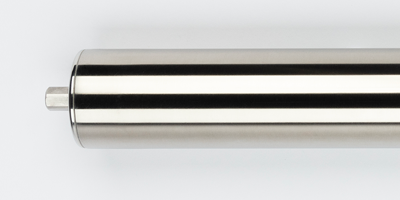

| A Stainless Steel ● No Lagging ● SUS304 Tube and SUS303 Bearing/Shaft ● Standard for Washdown models V and W |
 |

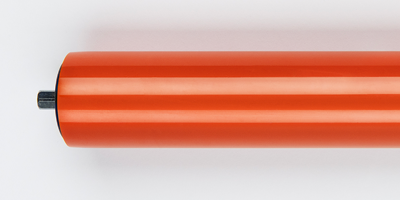

| K 3 mm (1/8”) Kastalon Sleeve ● 85 Shore A Durometer |
 |

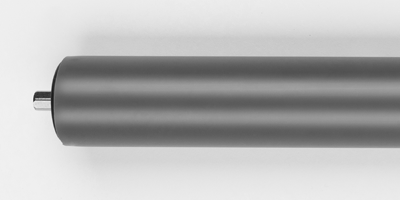

| Q 2 mm Grey PVC Sleeve ● 65 Shore A Durometer |
 |
| B 3 mm Black Rubber ● 70 Shore A Durometer |
 |

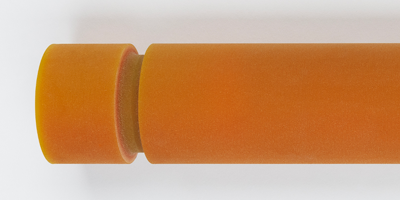

| W Custom Urethane Coating ● Custom thickness ● Machined to customer spec |
 |
