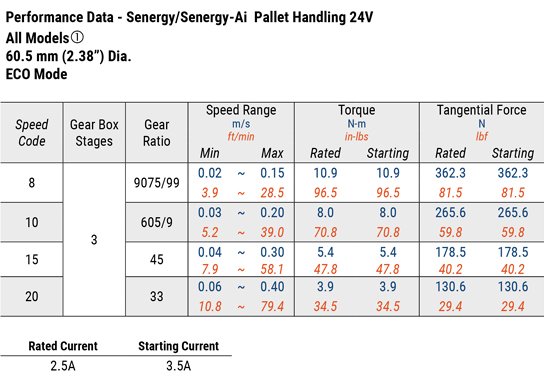

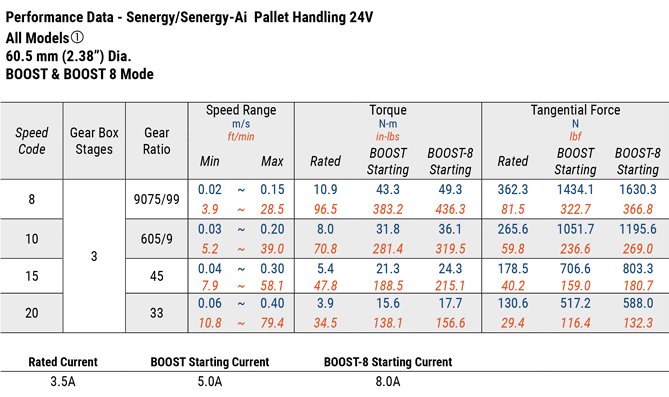

60.5 mm (2.38”) Diameter

Performance Data
63.5 mm (2.5”) Diameter

*Please note that Speed and Tangential Force are proportional to roller diameter and that these data do not include any change in diameter due to added lagging or coating options.

!Please note that BOOST 8 performance requires ConveyLinx-HTF for JST version or ConveyLinx-Ai2/Ai-3 or MotionLinx-Ai controllers
