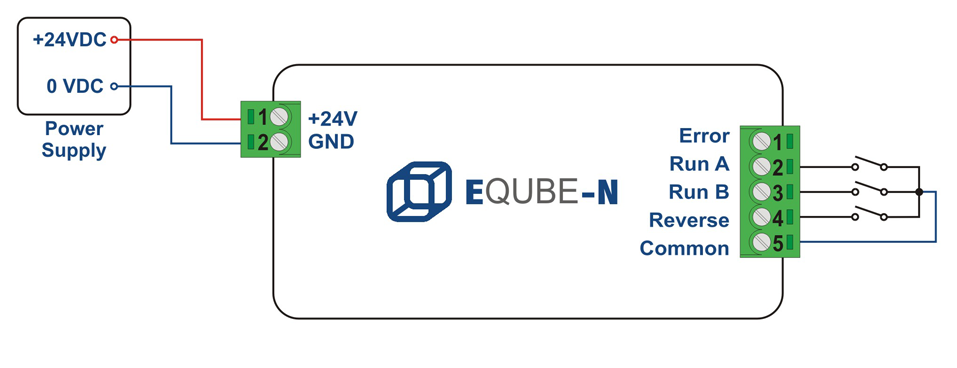

Single NPN Module Wiring
![]()
!To use the REVERSE input, either RUN A or RUN B must also be energized. Please note that you DO NOT have to de-energize both RUN A and RUN B signals in order to change MDR direction with the REVERSE input.

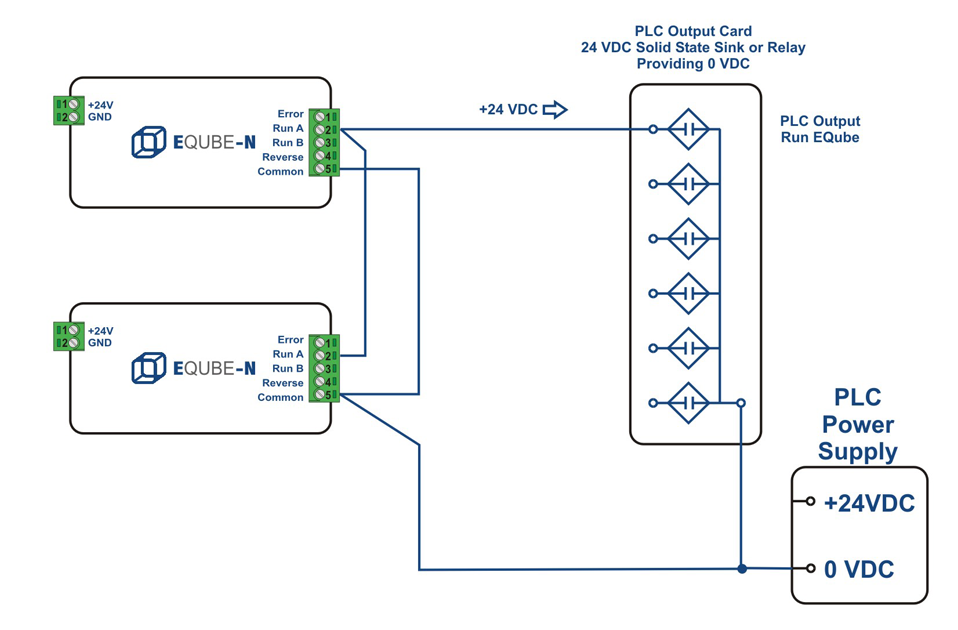

Wiring Multiple NPN Modules in Parallel
![]()
