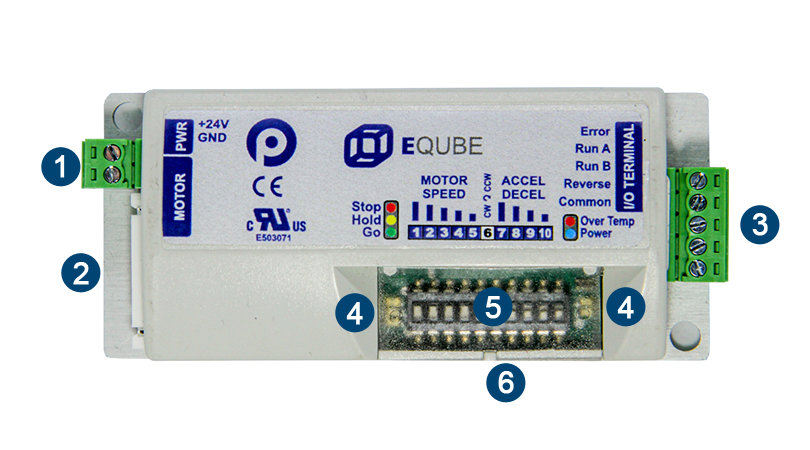

E-Qube-N and E-Qube-P
| Item | Description |
|---|---|
 |
Removable 24VDC Power Connector Terminal Block |
 |
Senergy Motor Port – 9-pin JST style header for MDR/PGD connection |
 |
Removable I/O Terminal Block |
 |
Module Status LEDs |
 |
Speed & Configuration 10 Position DIP Switch |
 |
DIP Switch and LED Hinged Clear Protective Cover |

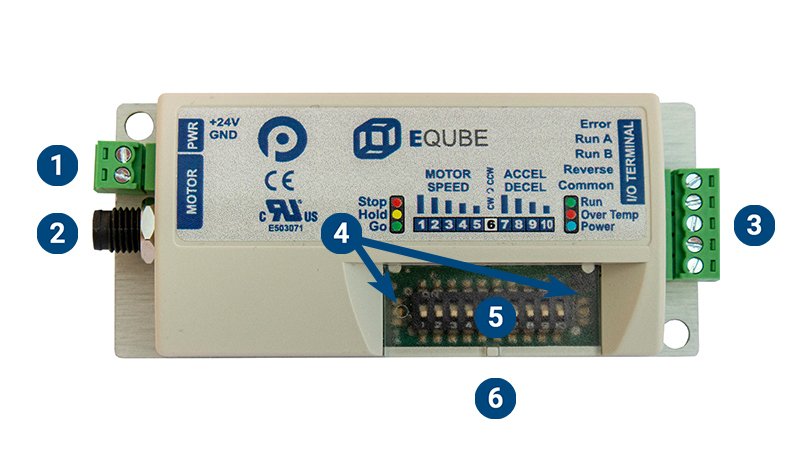

E-Qube-Ai-P
| Item | Description |
|---|---|
|
Removable 24VDC Power Connector Terminal Block |
|
Senergy-Ai Motor Port – 4-pin M8 style header for MDR/PGD connection |
|
Removable I/O Terminal Block |
|
Module Status LEDs |
|
Speed & Configuration 10 Position DIP Switch |
|
DIP Switch and LED Hinged Clear Protective Cover |
