Using line colouring in CadConnect

Using line colours in CadConnect

The colours as seen in the figure and on the items in the CadConnect have the following meanings in relation to data in BC.

  • Blue = This line colour is used on routings and operations
  • Green = This line colour is used on items and means that the item exists in BC and itself is a production BOM in BC
  • Black = This line colour is used on items, and means that the item / component exists in BC as a purchaased item
  • Red = This line colour is used on items, and means that the item does not exist in BC,

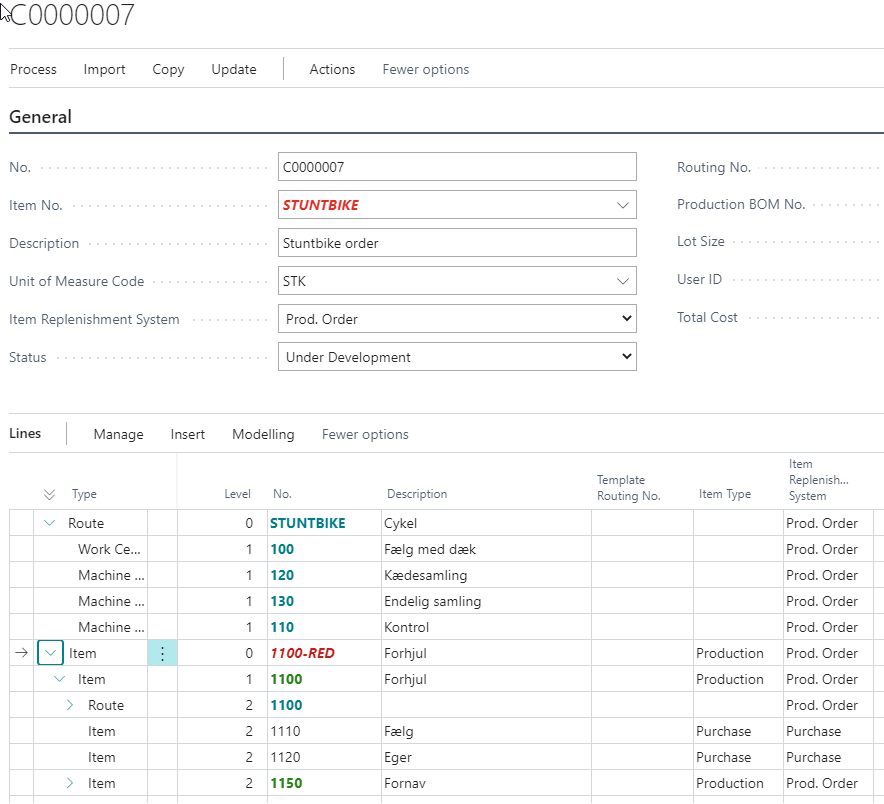

    So you can possibly end up with a new CAD structure with the following colouring.
