How to start monitoring

To start monitoring, press and hold the multifunctional button

!To start monitoring, press and hold the multifunctional button for longer than 3 seconds until the letters are replaced with stars (“*****”).

Nr.	Screen	Description

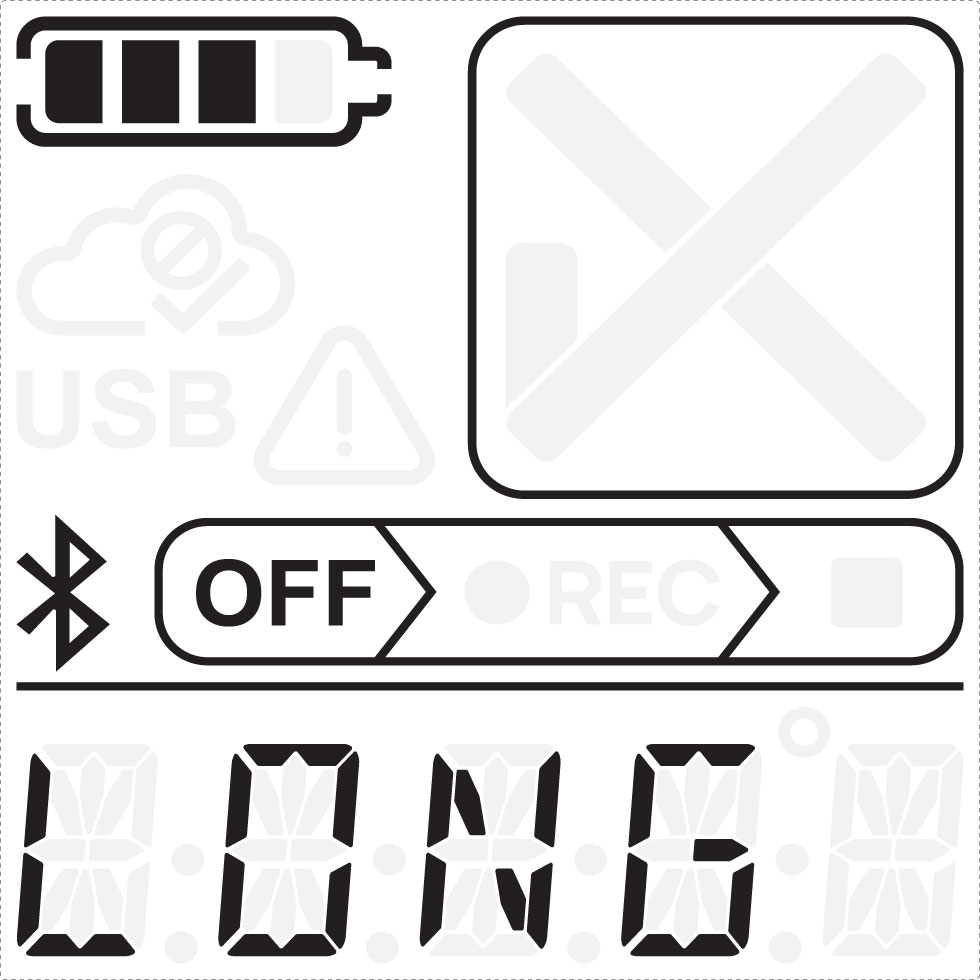

1		Upon device interaction, the device will indicate to the user that long-press of the multifunctional button is required for start. ! If long-press released too early, during the start process, the screen will be displayed.

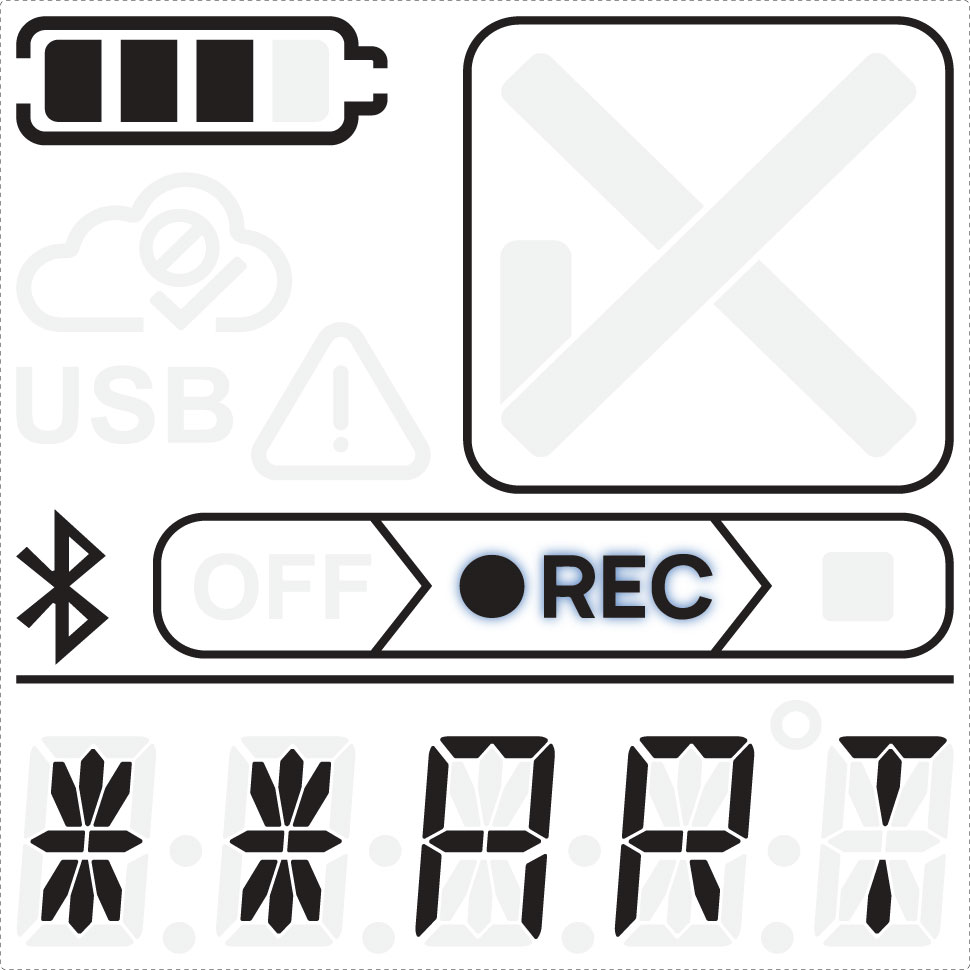

2		Upon long-press device interaction, the start screen will be loaded.

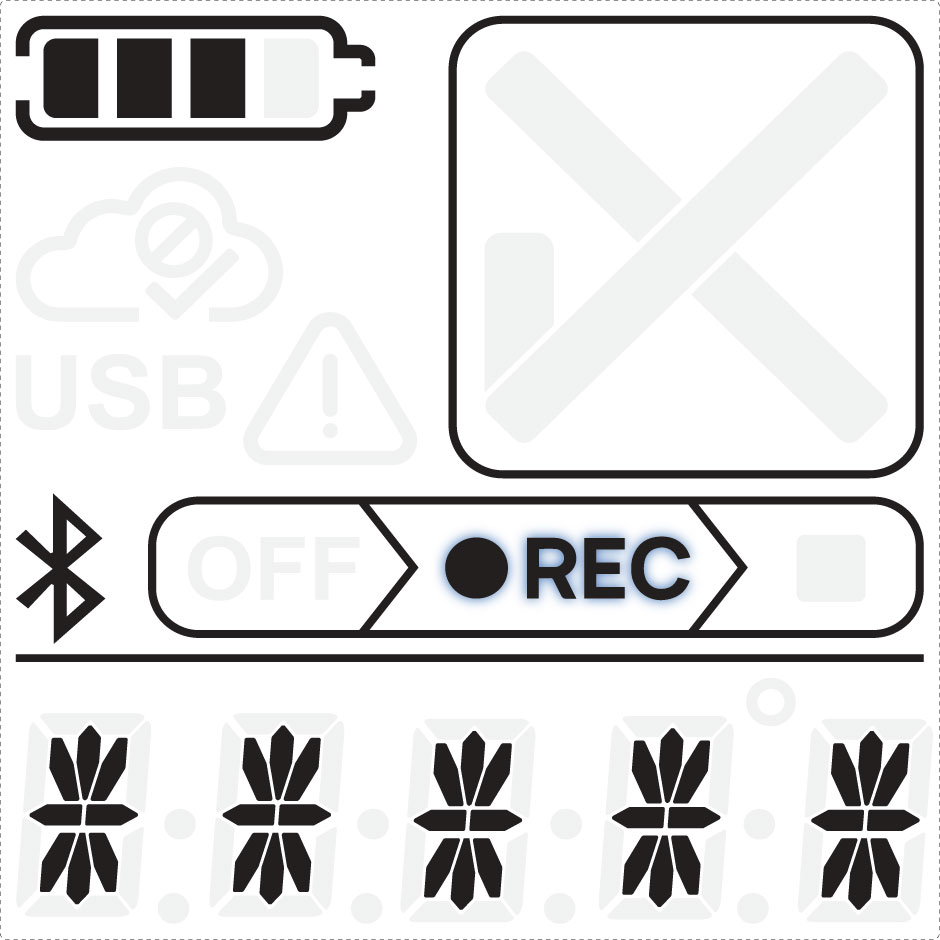

3		Hold the button until the letters are replaced with stars (“*****”) from left to right.

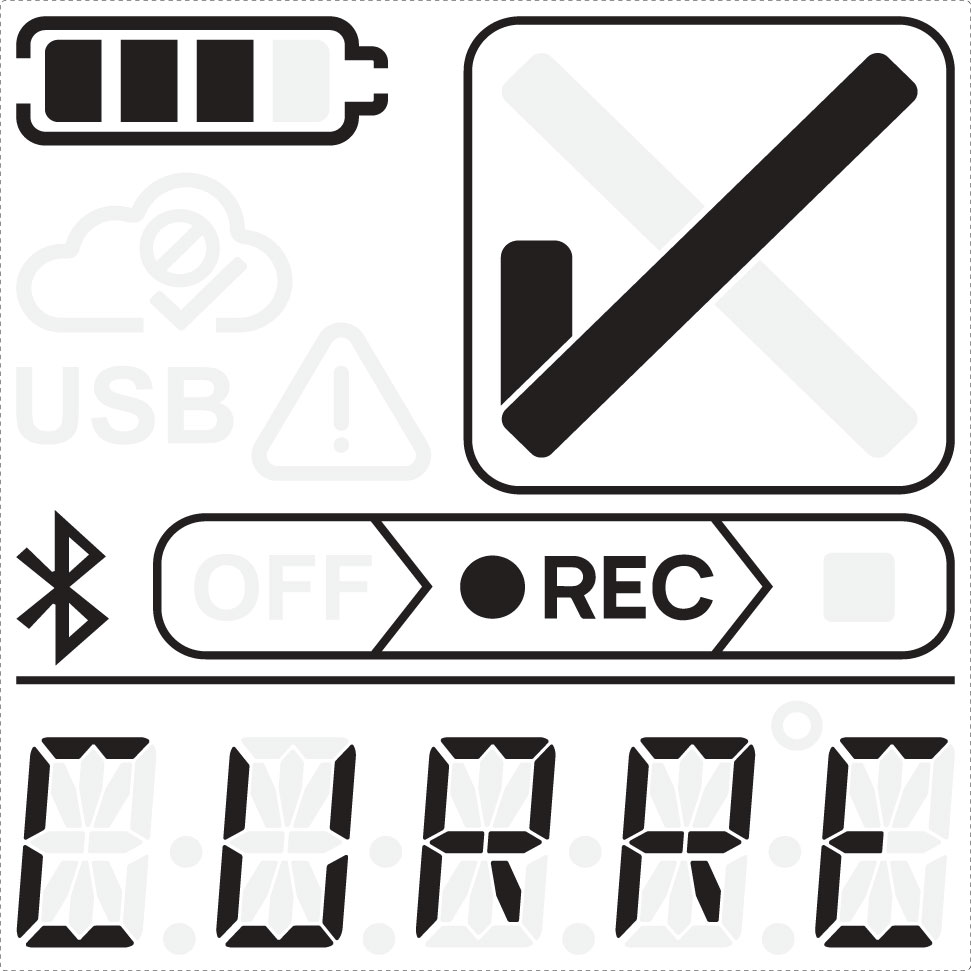

4		If no start delay is configured, in case of a successful start, record sign ( ) will be on and tick* () will be displayed. The 5-digit text field will display the temperature.

Start delay

!If a start delay is configured, the device starts with alarming only after start delay countdown. The remaining countdown is indicated on the display in days:hours:minutes format (if >24h: DDdHH, if <24h: HH:MM).

---

SmartMonitor start prevention

If the SmartMonitor displays “DO:SETUP” on the screen, a start prevention is defined in SmartView and a manual device configuration is required.

When the function is enabled, the SmartMonitor cannot be started by pushing the multifunctional button as it is preventing the start of the SmartMonitor until assigning and downloading of another, startable configuration policy in SmartView.

Check here for WARNINGS on device start.

* The tick can be hidden by disabling the alarm status function in the configuration policy in SmartView. In this case, the field remains empty.
