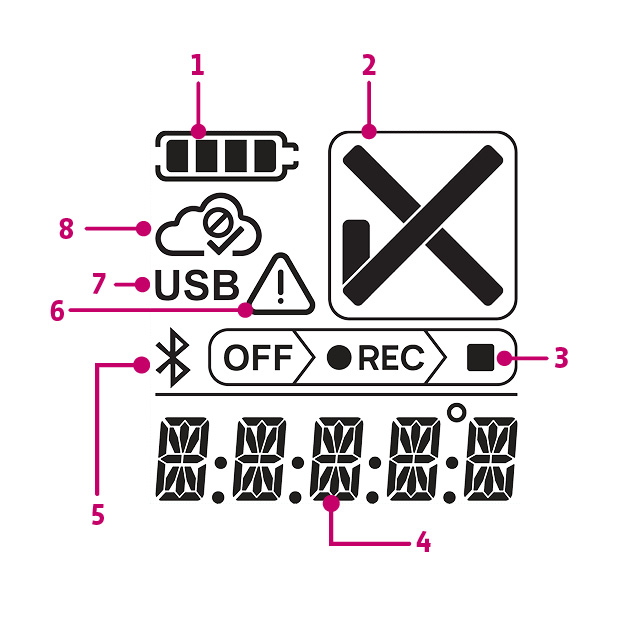

Display

No.	Name	Description
1	Battery status	Indicates the battery status
2	Alarm status	indicates that there is no temperature alarm violation on the device indicates that there is one or more temperature alarm violation on the device
3	Measurement status	SmartMonitor is ready to start – The device is not measuring yet SmartMonitor is measuring SmartMonitor has stopped
4	5-digit text field	Static or scrolling text to support user On home screen, the text field displays the current temperature On single button interaction, additional info is displayed
5	Bluetooth	Indication if Bluetooth is enabled En-/disable in the SmartView configuration
6	USB	Indicates option of manual configuration upload or data readout
7	Warning symbol	Warning that device needs attention
