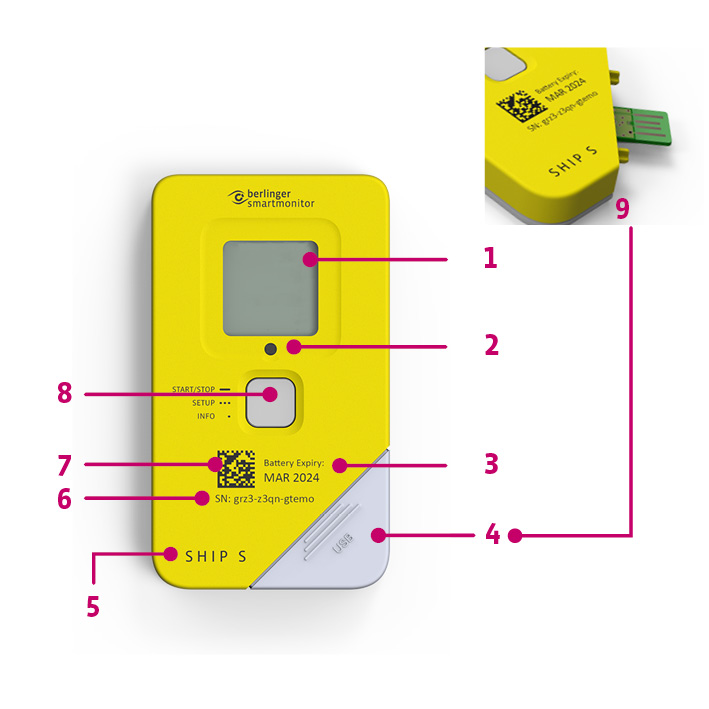

Device

No.	Name	Description
1	Display	Multi-information display
2	Light sensor	Monitors light events
3	Expiry date	Indication for battery expiry
4	Removeable cap	Remove for use of USB
5	Device type	SmartMonitor model
6	Serial number	Uniquely identifiable number of the device
7	Barcode	Contains the serial number for read out with barcode scanner
8	Multifunctional button	Button for device interaction. Check the following chapters to get detailed information on user interaction
9	USB	USB-plug that can be connected with computer

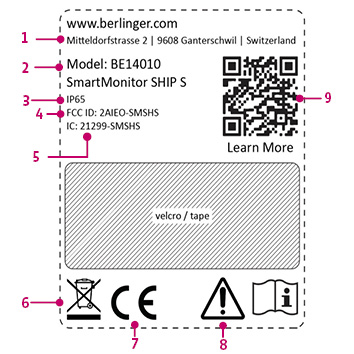

Backside label of the device:

No.	Name	Description
1	Contact	Berlinger contact details
2	Model	Model under which SmartMonitor is registered with approval authorities
3	IP65	Protected from dust ingress. Protected from water spray from any direction
4	FCC ID	Unique identifier assigned to the device registered with the United States Federal Communications Commission
5	IC	Unique identifier assigned to the device registered with Industry Canada
6	Waste electrical	Do not put in general waste. Contact Berlinger for recycling and refurbishment services. More information in chapter DISPOSAL
7	CE (conformité européenne)	Means that the SmartMonitor meets the European health, safety and environmental protection standards
8	General warning	See warnings in chapter WARNINGS
9	“Learn more” QR code	More information about SmartMonitor by scanning the QR code
