Edit a Map

	This is the Map icon.		This is the Rotate icon.
	This is the Show Camera Bag icon		This is the Upload Map icon.
	This is the Hide Camera Bag icon		This is the Zoom In icon.
	This is the standard Camera icon.		This is the Zoom Out icon.
	This is the Dewarp Camera icon.		This is the Delete icon.
	This is the PTZ Camera icon.

You can make changes to your Maps at any time.

1. To edit a Map, click on the Camera Group to expand it.

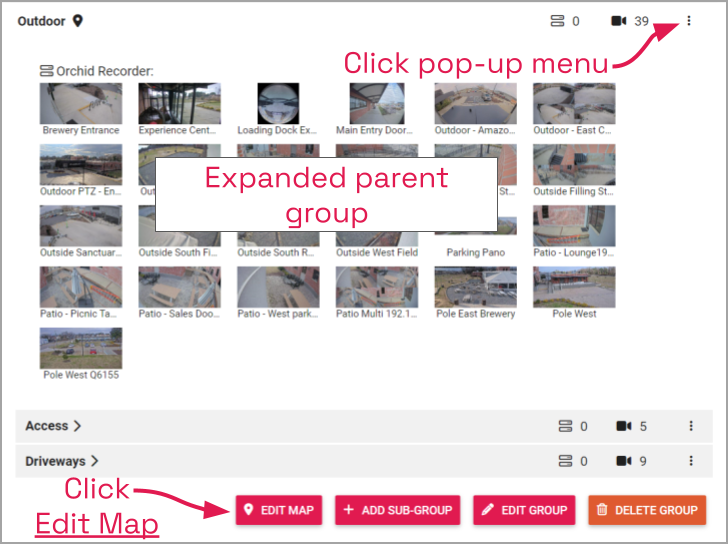

2. To edit a map for a top-level group, do either of the following:
   1. Click the Edit Map button at the bottom of the group screen, or
   2. Click on the group’s pop-up menu and select Edit Map.
3. To edit a map for a sub-group:
   1. Click on the sub-group’s pop-up menu and select Edit Map.

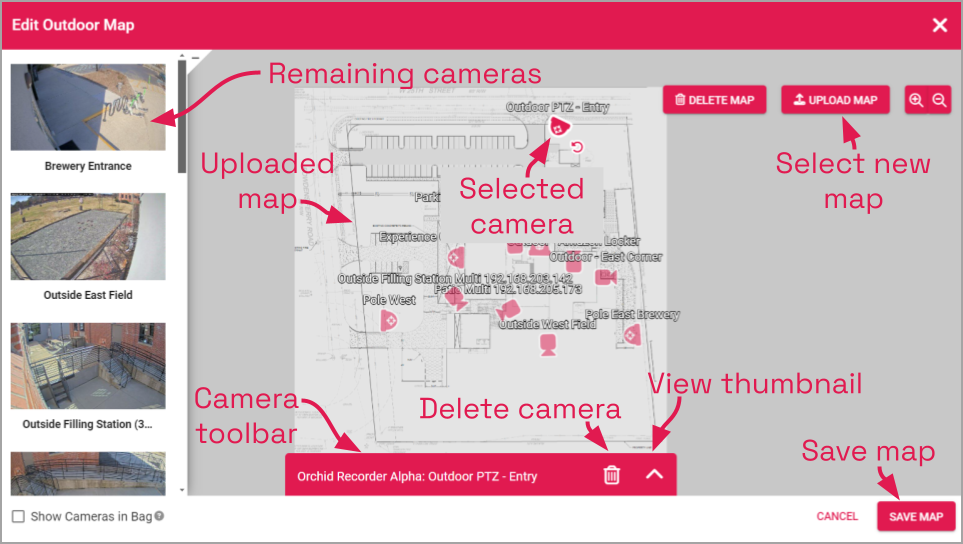

The Edit Map screen will appear.

Using the Edit screen, you can:

• Add any of the group’s remaining cameras
  • Double-click one of the available thumbnails, or
  • Click & drag one of the thumbnails to a specific location.
• Reposition cameras
  • Click & drag to move the Camera icon to another location.
  • Click & drag the Rotate icon to adjust the Camera icon’s point of view.
• Delete cameras
  • Click on the Camera icon.
  • Then click the Delete icon on the camera toolbar (and confirm).
• Replace the Map image
  • Click the Upload Map button.
  • Then click the Choose File button to select a new Map image.
  • This will replace the background image but keep the cameras in position.
• Change the Show Cameras setting
  • Mark the box to show this group’s cameras in the main Camera Bag.
  • Un-mark the box to hide the cameras in the main Camera Bag.

4. After all of your changes are complete, click the Save Map button.
