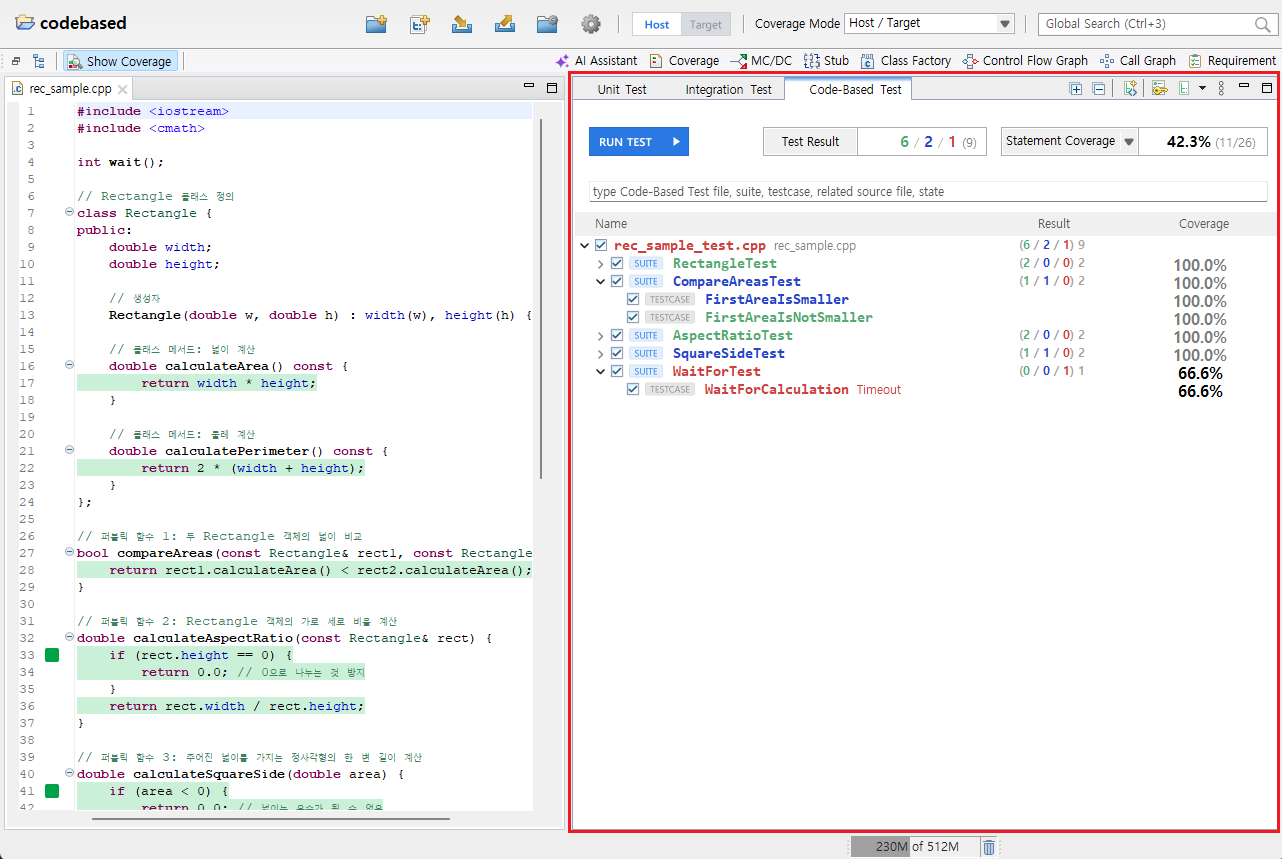

In the [Code-Based Test View], CT executes tests based on user-defined test code and displays the results.
Toolbar menu in the [Code-Based Test View]
| Toolbar icon | Description |
|---|---|
 Expand All |
Shows all test view tree. |
 Collapse All |
Hides all test view trees. |
 Create Code-Based Test |
Creates an code-based test. |
 Show Test Identifiers |
Displays by identifiers assigned to the suite or test case. |
| Show as Unique Test Name |
Displays by unique test name. |
 Total |
Displays all the tests. |
 Failure/Error |
Displays only the tests that the test result is Failure/Error. |
 Failure |
Displays only the tests that the test result is Failure. |
 Error |
Displays only the tests that the test result is Error. |
 Success |
Displays only the tests that the test result is Success. |
 Source File Not Linked |
Displays only the tests that are not linked with source files. |

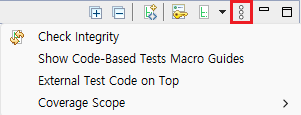

Pull-down menu in the [Code-Based Test View]
| Menu name | Description |
|---|---|
| Check Integrity | Check integrity about functions and stubs. Then, reset test if it needs. |
| Show Code-Based Tests Macro Guides | Show the guide to using macros in code-based tests. |
| External Test Code on Top | Sort external test code on top. |
| Coverage Scope | All: Display the coverage summed over the entire scope on the dashboard of the view. Directly Called Functions: Display only the function coverage directly called in the test code on the dashboard of the view. |

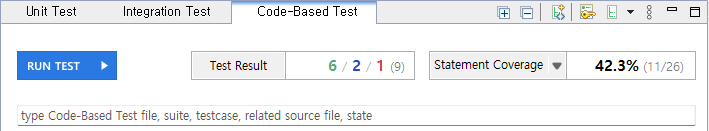

Dashboard in [Code-Based Test View]
| Menu | Description |
|---|---|
 |
Run code-based tests. |
 |
Show success, failure, error and total of test case. |
 |
Select the coverage type to be displayed in the Code-Based Test View. (statement, branch, MC/DC, function call) |
 |
Show the selected kind of full coverage. |

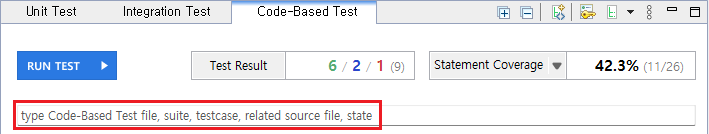

Search
The [Code-Based Test View] provides search functionality for code-based test files, suites, and test cases by code-based test file name, suite name, test case name, related source file, or status (Success, Failure, Error, or Source File Not Linked).
Status search keyword
In the [Code-Based Test View], CT filters the displayed tests by status keyword. The view provides keyword suggestions and an auto-complete function.
| Keyword | Description |
|---|---|
%TEST_SUCCESS% |
Test success |
%TEST_FAILURE% %TEST_ERROR% |
Test failure/error |
%TEST_FAILURE% |
Test failure |
%TEST_ERROR% |
Test error |
%TEST_SOURCE_FILE_NOT_LINKED% |
Source file not linked |

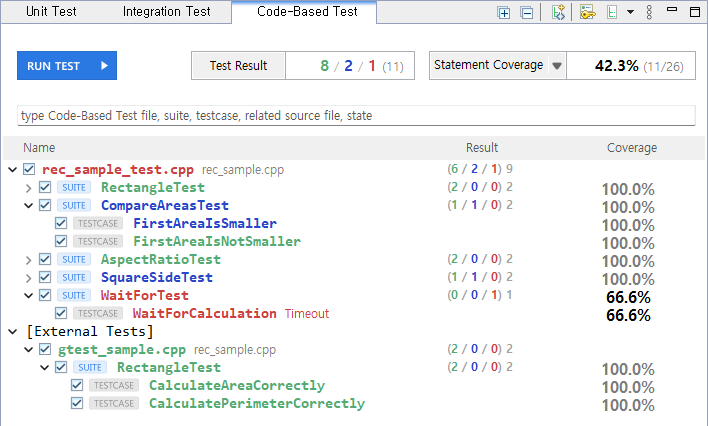

Structure of [Code-Based Test View]
[Code-Based Test View] presents the hierarchy structure of [Code-Based Test file] > [Suite] > [Test case]. External test code is displayed identically under [External Tests].
Item icons in [Code-Based Test View]
| Item icon | Description |
|---|---|
| None | Code-Based Test file or External Tests |
 |
Suite |
 |
Test case |
Item status color in [Code-Based Test View]
The execution information of code-based test files, suites, and test cases in [Code-Based Test View] is represented by colors.
| Color | Description |
|---|---|
| Green | Code-Based Test file/Suite: If the execution result of all the test cases under it is success. Test case: If the result of execution is success. |
| Blue | Code-Based Test file/Suite: If only test cases with failure and no test cases with errors exist under it. Test case: If the result of execution is failure. |
| Red | Code-Based Test file/Suite: If test cases with error exist under it. Test case: If the result of execution is error. |
| Black | Code-Based Test file/Suite: All test cases under it have not been executed. Test case: Not been executed |
Context menu in [Code-Based Test View]
[Code-Based Test View] provides context menu for code-based test file, suite, test case, external test code list.
Context menu of Code-Based Test file
| Context menu | Description |
|---|---|
| Select | Checks the selected file along with all its sub-suites and test cases for execution |
| Deselect | Unchecks the selected file along with all its sub-suites and test cases for execution |
| Delete | Deletes the selected file along with all its sub-suites and test cases |
| Rename | Modifies the file name |
| Show In System Explorer | Opens the location of file in system explorer |
| Open with VS Code | Opens the file with VS Code |
| Open Target Source File | Opens the target source file for testing in [Source Code Editor] |
| Change Target Source File… | Changes the target source file for testing |
| Generate coverage report | Exports coverage information for the suites and test cases corresponding to the file |

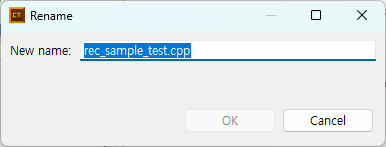

Rename
To rename a file name, use either [Rename…] option from the context menu or F2 shortcut.
The file extension must be .cpp.

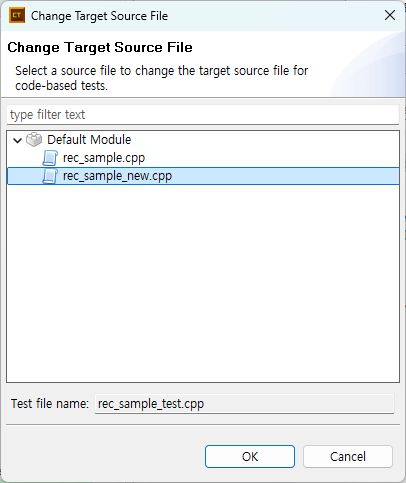

Change Target Source File
You can change the target source file of a code-based test file.
Context menu of Code-Based Test suite
| Context menu | Description |
|---|---|
| Select | Checks the selected suite along with all its test cases for execution |
| Deselect | Unchecks the selected suite along with all its test cases for execution |
| Generate coverage report | Exports coverage information for the suite and test cases |

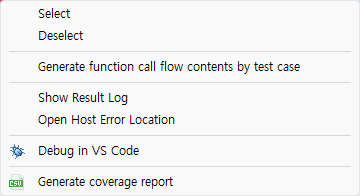

Context menu of Code-Based Test test case
| Context menu | Description |
|---|---|
| Select | Checks the test case for execution |
| Deselect | Unchecks the test case for execution |
| Generate function call flow contents by test case | Generate Function Call Flow Contents by test case |
| Show Result Log | Show the result logs of the selected test cases in [Console View] |
| Open Host Error Location | Open the error location of the test case where an error occurred |
| Debug in VS Code | Debug the test case in VS Code |
| Generate coverage report | Exports coverage information for the test case |

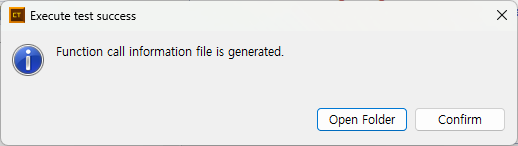

Generate function call flow contents by test case
Export the function call information of the selected test case as a .csv file.
After the export is complete, open the directory to check the function call information.

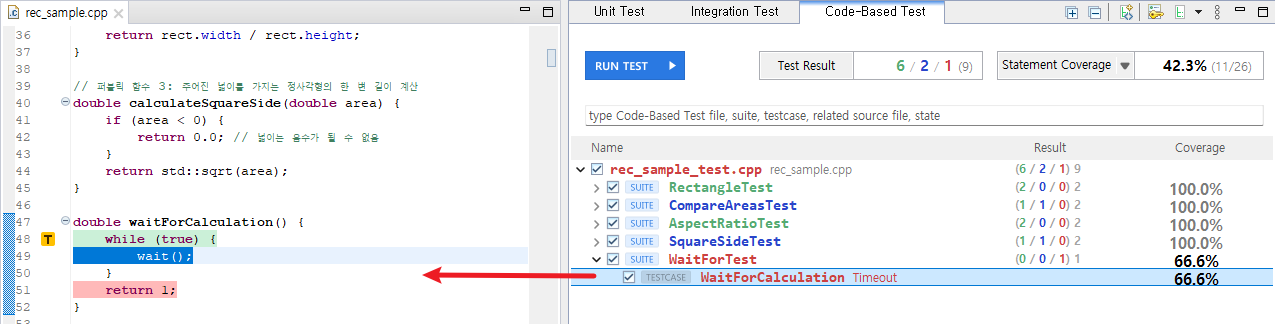

Open Host Error Location
Open the error location of the test case in [Source Code Editor].
Debug in VS Code
Debug test cases using VS Code.
For detailed instructions, refer to [Debug Guide in VS Code] in the User Guide.
