Console View

Toolbar icon in the [Console View]

Toolbar icon	Description
Clear Console	Clears the console contents.
Scroll Lock	Locks the scrolling of the [Console View] screen.
Word Wrap	Wrap lines to fit the window size.
Display Selected Console	Shows the selected console.

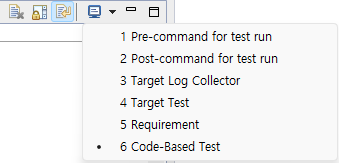

Display Selected Console

• Select [Display Selected Console] to choose the console type to display on the screen.


Pre/Post-command for test run

Enter the instruction or batch file in [Pre-command for test run] and [Post-command for test run] of [Project] -> [Properties] -> [Test] -> [External Command] and execute the unit test to display the execution result for the external instructions before and after the test execution in [Console View].

• If you select [Pre-command for test run], the execution result for the external command before running the test is displayed in [Console View].

• If you select [Post-command for test run], the execution result for the external instructions after the test execution is displayed in [Console View].


Target Log Collector and Target Test

• Enable the [Auto-detect on] option in [Preferences] > [Target Test] > [Target Log Collector] to display execution results in [Console View].
• The execution results appear in [Console View] when running a target test.

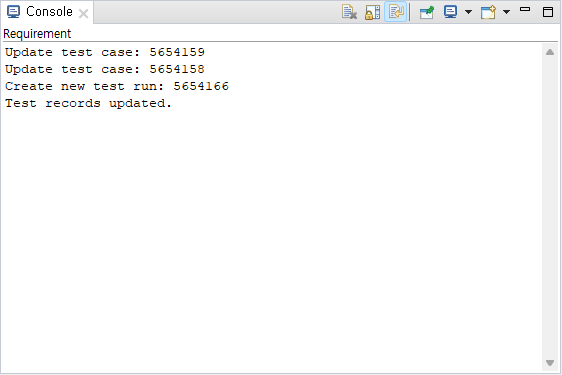

Requirement

When exporting test results from [Export] > [Requirement], you can check the progress in [Console View].

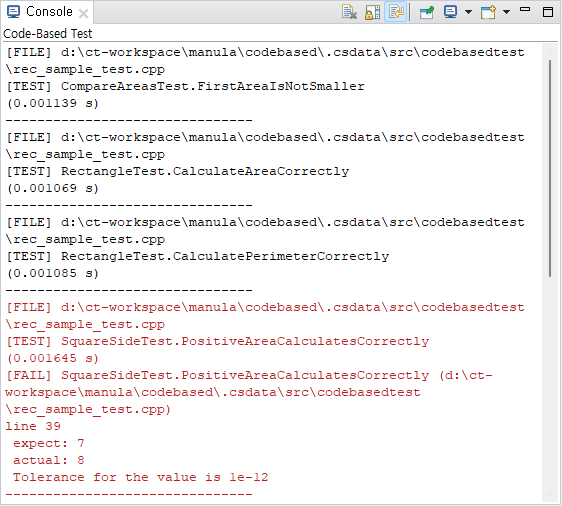

Code-Based Test

When running a code-based test, the execution results appear in [Console View].

• The execution result of a failed test case is displayed in red.
• When [Console View] is open:
  • Double-clicking a test case displays its execution result in [Console View].
• When [Console View] is not open:
  • Double-clicking a failed or errored test case opens [Console View] and displays its execution result.

*The order of the code-based test results and the order of the test cases in [Code-Based Test View] may not correspond exactly.
