RaptorLinx-Ai-ST Controller / Controller Hardware /

LED Status Indicators

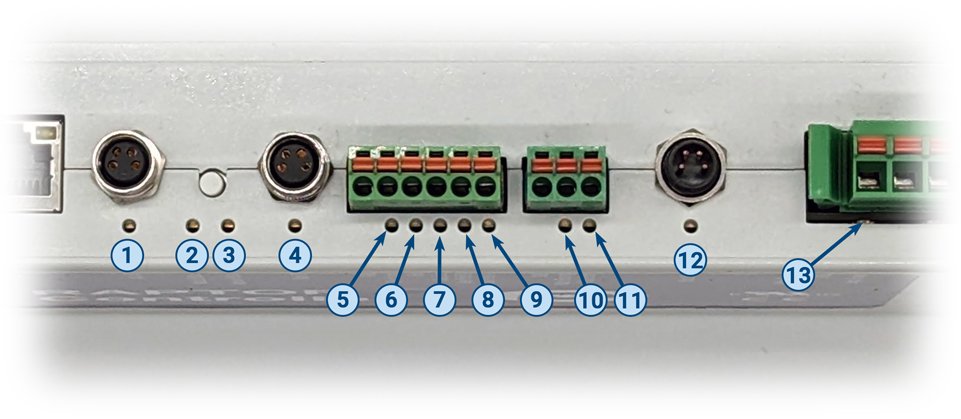

RaptorLinx-Ai-ST status is indicated by several LED’s. All LED’s with the exception of the Ethernet Link and Activity LEDs are multi-colored and context sensitive. The following sections indicate the various meanings of all LED indicators.

Indicator	Item	LED State	Description
M8 Sensors	&	Solid GREEN	Sensor Input is energized
		Solid AMBER	Module is booting up
		Solid RED	Aux I/O Pin 2 is energized (when configured as an Input)
		Flashing RED	Network Stop condition active
		Flashing AMBER	Power supply is less than 10V
		Slow Blinking RED	Profinet enabled discover function initiated from PLC
Module Status		Solid RED	Module is booting up or during Auto-Replacement procedure, module is attempting to retrieve data from neighbor module(s)
		Blinking RED	Module is starting task processes
		Blinking GREEN	Module is Ready
		Flashing GREEN & Blinking RED	Auto-replace procedure has been properly triggered
		Flashing RED & Blinking GREEN	Failsafe Mode
		Flashing RED	Auto Configure Mode is active
		Blinking AMBER	Performing firmware upgrade check
		Solid AMBER	Firmware upgrade in progress
Network Status		Solid RED	Starting Inter-module communications
		Blinking RED	Establishing inter-module connections
		Blinking GREEN	Inter-module communications established
Digital Inputs		Solid GREEN	Sensor Input is energized
		Solid AMBER	Module is booting up
		Flashing RED	Network Stop condition active
		Flashing AMBER	Power supply is less than 10V
		Slow Blinking RED	Profinet enabled discover function initiated from PLC
Digital Output	&	Solid GREEN	Output is Energized
		Slow Flash RED	Output Fault or Short Circuit
Motor		OFF	Motor is not running and no faults detected
		Solid ON GREEN	Motor is running
		Solid ON RED	If Motor is running – indicates current limit If Motor is stopped – indicates motor is not connected properly or is overheated Power supply is under 18V or above 30V
		Slow Blink RED	Motor is overloaded and the module is limiting current to reduce temperature
		Slow Flash RED	Motor short circuit detected between at least two of the phase windings or Motor Power supply is less than 10V

Indicator States
