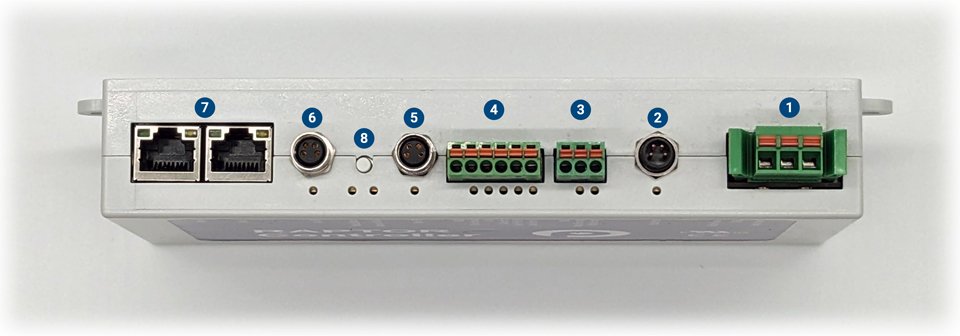

Identifying Module Components
| Item | Description |
 |
24/48 VDC Power Terminals with separate connections for Logic and Motor |
 |
Raptor-Ai-ST Motor Port – 4-Pin M8 Male Receptacle |
 |
Digital Outputs for Motor Running and Motor Error signals |
 |
Digital Inputs for Drive Enable, Run, Clear Error, User Profile0, and User Profile1 |
 |
Main I/O Port – 4-Pin M8 Female Receptacle |
 |
Aux I/O Port – 4-Pin M8 Female Receptacle |
 |
Ethernet Ports – RJ-45 Female Receptacles |
 |
Restore to Factory Default Button |
