RaptorLinx-Ai-ST Controller / Controller Hardware /

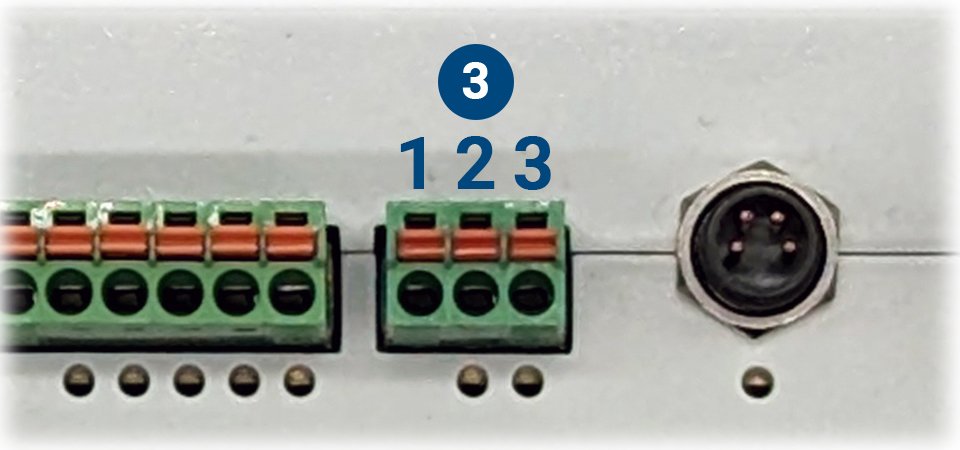

Discrete Output Terminal
| Discrete Output Connector Plug | |
|---|---|
| Part Number | Wurth Electronics. Part number 691304100003 |
| Wire Size | 24 – 16 AWG (0.205 – 1.31 mm 2) |
| Strip Length | 7 – 9 mm |
| Pin | Signal | Description |
|---|---|---|
| 1 | GND | 0V DC Common |
| 2 | Motor Running | Energized when motor is rotating |
| 3 | Run | Energized when a motor error is active |
