Edit Camera Stream Settings

	This is the Expand icon (used to view the list of Recording Statistics).
	This is the Condense icon (used to close the list of Recording Statistics).
	This is the Camera icon that represents the Primary Stream.
	This is the Camera icon that represents the Secondary Stream (if applicable).
	This is the Camera icon that represents a disabled camera stream.

After a camera has been added to an Orchid Core VMS server, settings such as the stream resolution and frame rate can be updated through the camera stream’s configuration. While this is true for most cameras, cameras added using the RTSP driver (old cameras and cameras that don’t support ONVIF) cannot be edited through Orchid Core VMS or Orchid Fusion/Hybrid VMS. You will need to access those cameras directly to edit settings. (Refer to the camera manufacturer’s documentation for more details.)

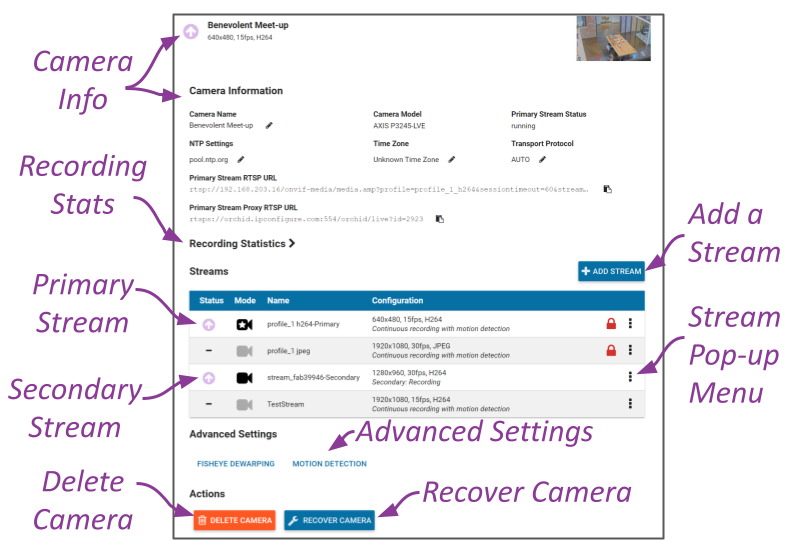

1. From the list of registered cameras on the server’s Cameras tab, click the name of the camera you want to edit. (The list will expand to display all of the information for the selected camera. This includes the camera name, IP address, and all of the available streams.)

Camera Information

1. To change the camera name, click the Edit pencil to the right of the camera name. Enter a new name in the Camera Name field and press the Update Camera button.

This screen also displays the camera model and the status of the Primary camera stream. These settings are informational and cannot be altered here. (Please refer to the System Status section for status descriptions.)

Beginning in version 21.6, Orchid Core VMS will display the NTP settings and the Time Zone setting next. (If the camera was installed while using an earlier version of Orchid, you won’t see these settings. To remedy this, you need to recover your camera.)

2. To change the NTP settings, click the Edit pencil to the right of the NTP settings.

By default, the system will pull the Network Time Protocol (NTP) from the Dynamic Host Configuration Protocol (DHCP) server; this helps to ensure that all of the cameras on the network are using the same system clock.

3. If you need to use a different server, do the following:
   1. Use the NTP Settings drop-down list to select Manual.
   2. Enter the name of the server you want to use.
   3. When all settings are complete, click the Update NTP Settings button.

4. If you need to change the time zone for the camera, do the following:
   1. Click the Edit pencil to the right of the Time Zone.
   2. Use the Time Zone drop-down list to select the appropriate time zone.
   3. Mark the Daylight Saving Time checkbox if your region observes daylight saving time.
   4. When all settings are complete, click the Update Time Zone Settings button.

Beginning in version 22.3, the system will display the Transport Protocol setting. This gives you a chance to specify how the video will be transported from the camera to the Orchid Core VMS server.

5. To change the Transport Protocol setting, click the Edit pencil to the right of the Transport Protocol setting.

The Edit Camera Transport Protocol screen will appear. By default, the system will use the AUTO setting. This means that the system will attempt to connect using UDP and will automatically rollover to TCP if it cannot establish a connection.

6. If you want to select a different setting, do the following:
   1. Use the drop-down list to find the setting you want to use. Available settings include: AUTO, UDP, UDP_MCAST, HTTP, AND TCP.
   2. After you make your selection, click the Update Transport Protocol button.

The Primary Stream RTSP URL status fields are typically used for troubleshooting. These allow for a comparison of the video coming from the camera and the video as received by Orchid Core VMS to determine where a problem might be occurring.

• The Primary Stream Camera RTSP URL (which contains the camera’s IP address) represents the video stream that Orchid Core VMS is recording.
• The Primary Stream Proxy RTSP URL represents the video that Orchid Core VMS is showing on the Stage. (For more details, please refer to the section titled How Orchid Fusion/Hybrid VMS’s Proxy Works, and the two topics that follow it.)


Recording Statistics

The Recording Statistics section can be expanded to show the average percentage of packet loss and the average bit rates for the Primary recording stream. These values are typically used for troubleshooting. (For more details, please refer to the Orchid Core VMS Administrator Guide.)

Streams

A camera stream is a profile with all of the basic settings used by Orchid Core VMS to record video from the camera. Beginning in version 21.12, Orchid Core VMS and Orchid Fusion/Hybrid VMS support multiple active streams. Each of the available camera streams will be either a Primary stream, a Secondary stream, or a Disabled stream. You can identify them (and assign them) as described below.

1. To reassign a stream, click the Camera icon located in the Mode column to the left of the name of the stream you want to change. A pop-up menu will appear.
   1. Click on the Primary camera icon () to make this the Primary stream. (The original Primary stream will become disabled.)
   2. Click on the Secondary camera icon () to make this the Secondary stream. (You may have more than one Secondary stream. Keep in mind, however, that each stream that is set to record video will consume additional storage space.)
   3. Click on the Disabled camera icon () to make this an inactive stream.

*The system allows only one Primary stream per camera at a time. However, multiple stream profiles from the same camera can be used as the Primary stream if the camera is added multiple times. This feature is especially useful for cameras with multiple lenses.

Camera Stream Pop-Up Menu

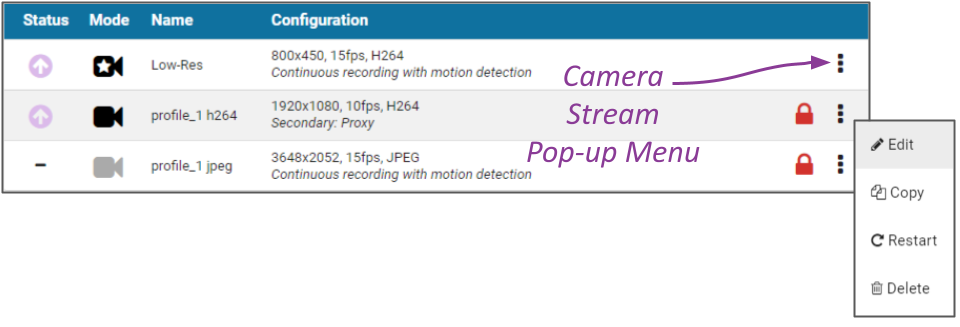

To the right of each camera stream, you’ll find a pop-up menu.

2. Click on the menu to work with each camera stream. (The contents of the pop-up menu will vary based on the stream.)

	This is the Edit pencil icon. Click this icon to make changes to the stream settings.
	This is the Copy Stream icon. Click this icon to copy these stream settings to other camera streams.
	This is the Restart icon. Click this icon to refresh the connection to this camera stream. This option is not available on inactive streams.
	This is the Delete icon. Click this icon to delete the camera stream. This option is not available on locked streams.

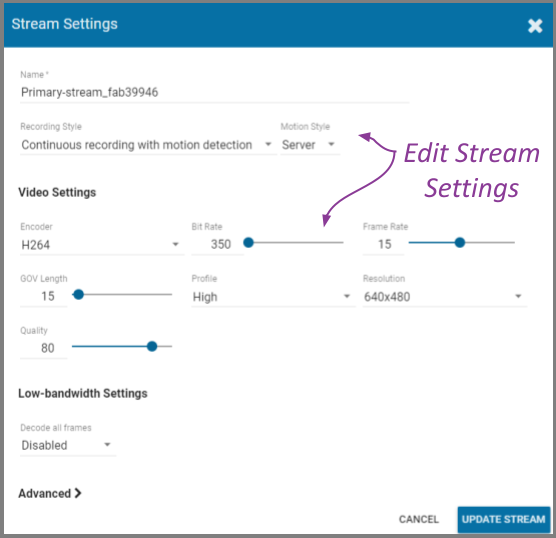

3. To edit a stream, click the stream’s pop-up menu and then click the Edit pencil icon. After clicking the Edit icon, a screen will appear with all of the stream settings available for editing.

*If you are editing a JPEG stream, available settings may be limited.

*The Motion Style setting (pictured below) will only be available on Axis, Hanwha, and Vivotek cameras.

4. Review or change the stream name so users can easily identify the camera stream. (This is especially helpful on Primary and Secondary streams.)
5. Review or change the Recording Style for the camera stream. (Review the information below before making a selection.)

Recording Style

Orchid Core VMS offers five different recording styles to choose from. These recording styles will impact video availability (as shown in the descriptions and table below). (Secondary streams are limited to the following recording styles: Continuous Recording without Motion Detection, and Proxy Only.)

• Continuous Recording with Motion Detection: Orchid Core VMS will continuously record video from the camera and perform motion detection. This is the default and recommended setting. (This recording style is not available on Secondary streams.)
• Continuous Recording without Motion Detection: Orchid Core VMS will continuously record video from the camera, but will not perform motion detection. This option offers a modest reduction in CPU load on the Orchid Core VMS server.
• Continuous Recording with Motion Adaptive Frame Rate: Orchid Core VMS will record at a higher frame rate while motion is detected, and a different (slower) frame rate while no motion is detected. These frame rates are user-selectable (as shown in the screenshot following the table). Due to the way H264 compresses video, this recording style typically shows significant savings in disk usage only for inexpensive cameras with noisy sensors, or cameras in low-light environments. (This recording style is not available on Secondary streams.)
• Proxy Only: Orchid Core VMS will provide live video from the camera but will not record video.
• Recording Only When Motion Detected: Orchid Core VMS will only record video from the camera when motion is detected. This may result in a reduction in disk usage on the Orchid Core VMS server, however, motion detection accuracy may vary and result in video loss. (This recording style is not available on Secondary streams.)

	Continuous recording with motion detection – Default	Continuous recording without motion detection	Continuous recording with motion adaptive frame rate	Proxy only, no video will be recorded	Recording only when motion is detected
Recording and playback are available	Yes	Yes	Yes	No	Yes – When motion is detected
Live view is available in low-bandwidth mode	Yes	No	Yes	No	Yes
Thumbnail previews are available	Yes	Yes	Yes	No	Yes

Motion Style

If you choose a Recording Style with motion detection, and you are using an Axis, Hanwha, or Vivotek camera, Orchid Core VMS will allow you to select either camera-based or server-based motion detection for each camera stream. (For more details on these Motion Styles, please refer to the Orchid Core VMS Administrator Guide.)

6. Use the Recording Style drop-down list to select a new recording style.
7. If you select a Recording Style that includes motion detection, you may need to make additional selections.
   1. Use the Motion Style drop-down list to select a motion style. Options include Camera and Server (the default).
      1. If you select the Camera motion style, use the Camera Event drop-down list to select the criteria the camera will use to detect motion. Available selections will vary based on the camera and may require some experimentation. (For more details on Camera Events, please refer to the Orchid Core VMS Administrator Guide.)

*If you are using an Axis, Hanwha, or Vivotek camera, and the Motion Style drop-down list appears to be unavailable, you should try recovering the camera.

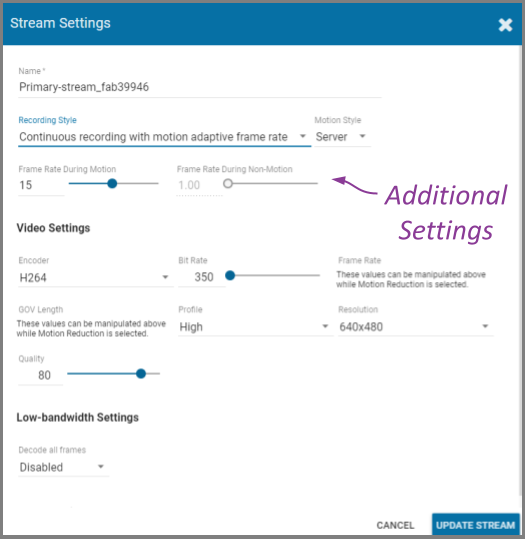

8. If you select the Continuous recording with motion adaptive frame rate recording style, you will need to set both the Frame Rate During Motion and the Frame Rate During Non-Motion. (The Frame Rate During Motion will dictate the available settings for the Frame Rate During Non-Motion. Allowable settings for the Frame Rate During Non-Motion range from 1 up to a setting that is less than or equal to the Frame Rate During Motion.)

*If you are using Server-based motion detection, you may use the advanced Motion Detection settings on the Camera Configuration screen to further customize motion detection.

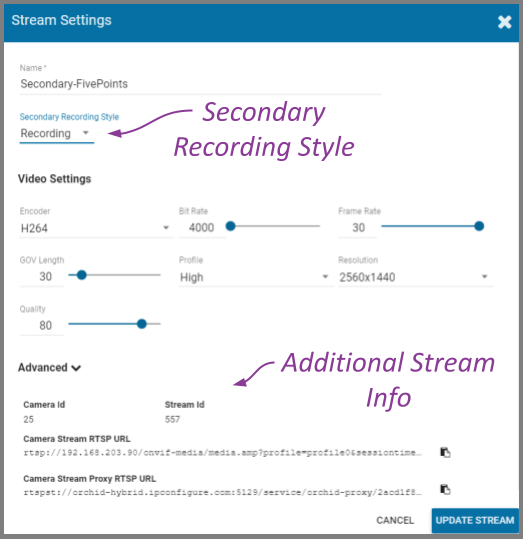

9. If you are editing a Secondary stream, you will notice that the Recording Style drop-down list will only offer two options: Recording and Proxy. The Recording setting will provide continuous recording without motion detection, and the Proxy setting will provide live video only.

10. Continue to review and change camera stream settings for video, audio and bandwidth as needed. Refer to the definitions below for help in selecting settings.

*You may need to use the scroll bar to view the additional settings in the lower portion of the screen.

Video Settings

Each camera type reports its own default values provided by the camera manufacturer. Use those default values unless otherwise noted.

• Encoder: The type of compression used for the camera’s video. In WebRTC mode, Orchid Core VMS only supports H264 video. In Low-bandwidth mode, Orchid Core VMS supports JPEG, MPEG4, and H264 (recommended). (Available selections depend on the camera.)
• Bit Rate: The target data size (in kilobits per second) of the compressed video. Increasing this value will typically improve image quality at the expense of increased disk usage and reduced retention. In WebRTC mode, bit rates of 2000 kbps or less tend to work best. The default value is recommended.
• Frame Rate: The number of frames per second transmitted within the video stream. Most Orchid Core VMS users are best served by values between 7 and 12. Higher frame rates provide more video detail at the expense of reduced video retention and increased bandwidth usage.
• GOV Length: When using H264 compression, this value specifies how often the camera sends a full image frame (instead of a “change frame” which only describes differences between frames). For example, if this is set to 15, Orchid Core VMS will send a full image frame once every 15 frames. Be aware of how this setting may impact video quality. As the GOV length decreases, the system will need to send more keyframes of video (within the set bit rate). This may result in a loss of quality for those keyframes. The default value is recommended.
• Profile: When using H264 compression, this specifies an H264 Profile of either Baseline, Main, or High. Higher profiles offer better compression (which means increased retention and lower bandwidth usage) at the expense of increased CPU utilization when decoding video. The highest available profile is recommended.
• Resolution: The resolution of video transmitted by the camera. Higher values increase video detail at the expense of reduced video retention and increased bandwidth usage. Most Orchid Core VMS users are best served by resolutions between 1280×720 and 1920×1080.
• Quality: This value affects how much the video is compressed. Higher values increase video quality at the expense of increased storage requirements (and thus reduced video retention). The default value is recommended.

Audio Settings (if supported)

Beginning in Orchid Fusion/Hybrid VMS 2.10, audio control is no longer supported at the Player/Stage level. However, the Orchid Core VMS server is still recording audio for those cameras that support it, and this audio will be available in exported video files. Future versions of Fusion/Hybrid will support audio over WebRTC.

These Audio Settings will appear on the screen only if the camera supports audio and will determine how the Orchid server records the audio. Each camera type reports its own default settings. Use those default values unless otherwise noted.

• Encoder: The type of compression used by the camera’s audio. Orchid Core VMS supports “None” (audio is disabled), G711, and AAC (recommended if audio is desired).
• Bit Rate: The target data size (in kilobits per second) of the compressed audio. The default value is recommended.
• Sample Rate: Affects the quality of recorded sound. The default value is recommended.

Low-bandwidth Settings

• Decode all frames: This setting applies to viewing Live video in Low-bandwidth mode. When Decode all frames is disabled, Orchid Core VMS will display only full frames (per the configured GOV length) when viewing live video in Low-bandwidth mode. When Decode all frames is enabled, Orchid Core VMS will display every available frame from the camera (regardless of GOV length) when viewing live video in Low-bandwidth mode, assuming sufficient bandwidth exists. Decode all frames is disabled by default because enabling this setting will increase CPU use on your Orchid Core VMS server. (For more details on Low-bandwidth mode, please refer to the Advanced Topics section.)

Advanced

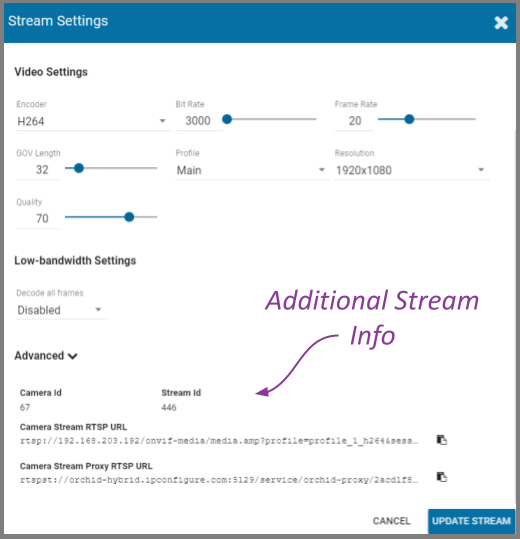

The last section on the screen provides additional information about the camera stream. This includes the Camera ID, the Stream ID, and the URLs, all of which may be helpful for troubleshooting the camera stream.

11. Click the Expand icon () to view the Advanced stream information.
12. Click the Condense icon () to close the Advanced stream information.

13. Once the stream settings have been updated, click the Update Stream button to save the new stream settings. It may take a few seconds for the settings to change based on the camera being updated.
14. You may review the impact that the stream settings have on video playback for each camera. Simply click on the corresponding thumbnail to watch a current live video feed.
