4.4. The Interface

Containers and Panels

The HitFilm interface is designed using a mixture of Containers and Panels, and is fully customizable. A container can hold multiple panels. Each panel will have a tab, and you can click the tabs to switch between panels.

You can customize the size and layout of the containers and panels in various ways:

• The size of containers can be adjusted by dragging on the container’s edges.
• Panels can be moved between containers by clicking and dragging on the panel’s tab.
• Containers can be moved around the screen by clicking and dragging on an empty area of the container’s title bar.

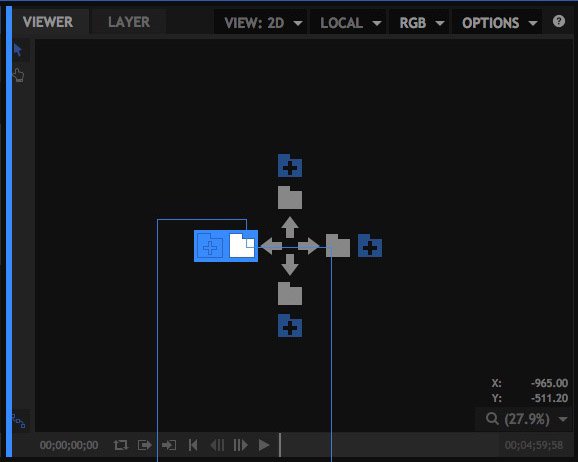

• Dragging a container over another container will display a 4-way drop zone indicator.



As you drag the container onto any zone, a blue line appears along the corresponding edge of the container, indicating where the container will be placed when you drop it. Dropping the container onto the relevant zone will insert the container to the left/right/top/bottom of the affected container, where the blue line was.

Floating Containers

Containers can also be separated from the main window and moved into their own ‘floating’ windows. These can then be dragged anywhere around your desktop. This can be useful for computer setups using multiple displays, for example.

To float a container, simply right click its title bar and select Float Container.

To move a floating container back into the main interface click the workspace icon in the floating container’s title bar.

You can also drag a floating panel back into the interface, by choosing a new container location and dragging the tab of the floating panel into the header of that container.

The View Menu

The View menu is your center for navigating and customizing the interface. It displays controls for turning individual panels on and off, switching between workspaces, and managing your custom workspaces.

Screens

The first three items in the menu give you direct access to the different screens of the interface.

• Home: Takes you to the Home screen, where you can access online training content, the user manual, and a list of your recent projects.
• Edit: Takes you to the Edit screen, where your projects are constructed and all editing is done.
• Export: Takes you to the export screen, where you can export your timelines to create new video files for use outside of HitFilm.

Panels

The individual panels that make up the interface of the Edit Screen can be shown or hidden, to limit the visible controls for what you need for your current task. Particularly if you have a smaller display, hiding controls that you don’t need will make more room for the controls you do need, so you can better see what you are doing and keep things efficient.

Almost all panels included in the HitFilm interface are listed in the panels menu, and can be toggled visible or hidden at any time. A green check mark indicates visible panels. Panels without a check mark are currently hidden. Details about each panel are available on The Panels page of this manual.

Some panels are permanent, and must always be visible:

• Editor: The Editor timeline cannot be hidden, and is not listed in the panels menu.
• Media: The Media panel cannot be hidden, and is not listed in the panels menu.
• Text: The Text panel cannot be hidden, and is not listed in the panels menu.
• Viewer: The Viewer panel cannot be hidden, and is not listed in the panels menu.

Workspaces

Workspaces are preset combinations of panels in a specific layout, to help you quickly display the tools needed for specific tasks. HitFilm offers a variety of standard workspaces, to suit many common tasks.

• 360 Video Editing: Optimized for working with 360 degree video.
• All Panels: A feature-rich workspace with all panels enabled. Easy access to all editing and compositing features, if you have a large enough display to fit it.
• Audio: Focuses on the Audio mixer and other tools for editing and fine tuning your audio tracks.
• Classic: Based on the default layout in HitFilm 2 Ultimate. This retro option might be more familiar to users coming from a very early version of the software.
• Colorist: Scopes and large viewports facilitate accuracy and ease of use while you work on dialing in perfect colors.
• Compositing: Optimized for compositing, with emphasis on the controls and effects panels.
• Editing: Optimized for editing, with emphasis on the trimmer, media panel and viewer. This workspace is ideal for reviewing the contents of each clip in your media panel, selecting the portions you want to use in the trimmer, and adding them to the timeline.
• Organize: Makes it easier to organize complex projects, when you have numerous imported files to go through, select, and rename.

Designing Your Own Workspaces

If you customize the interface to use a different layout than any of the default workspaces, you can save your own layout to create a new workspace template. Details on how to customize the layout of the panels and containers that make up the HitFilm interface are provided above.

When you have a layout that you wish to save for later use, open the View menu and select Save Workspace. A new window will appear, where you can name your new workspace. After you click OK, your new workspace will be available through the View > Workspaces menu.
