5250 PC Workstation Image Viewer Configurations

There are 5 possible 5250 PC Workstation Configurations to use with One Look.

The option is set on the IBMi using the RVI Maintenance Menu.

*To access the RVI menu, RVILIB must be in your library list. To add RVILIB to your library list, type ADDLIBLE RVILIB from an IBM i command line.

From an IBM i command line, type GO IMAGE

1. Option 8 Maintenance Menu
2. Option 7 Maintain PC Workstation Configuration
3. F10 = Add A Record
   (If the device or user is already listed in the table, put an X next to the record to edit.)

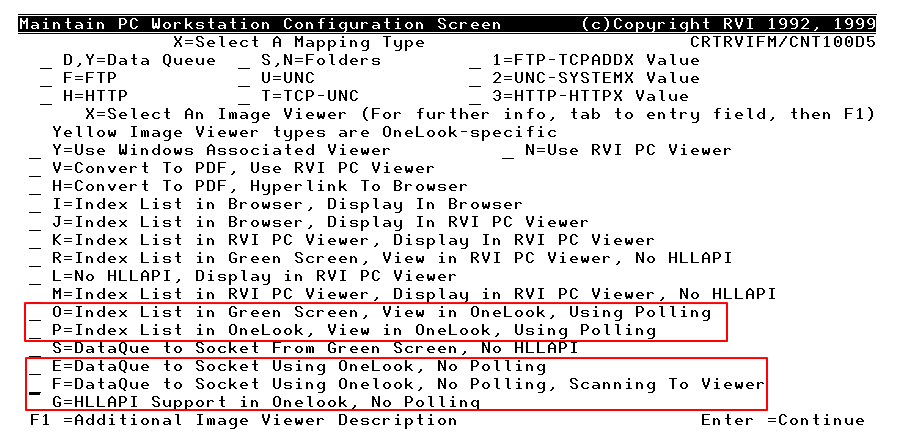

4. Set Image Viewer to O, P, E, F, G
