2.3. Transporting Devices

Transporting by Foot

When transporting the SL-RAT® TX and RX components by foot, follow the procedures in this section to reduce the possibility of damage.

1. Place TX and RX in closed/transport position. See Figure 3.
2. Securely tighten the two lock knobs on both the TX and RX. See Figure 3.
3. When transporting the SL-RAT TX and RX by foot over short distances, carry in a closed/transport position. See Figure 3.

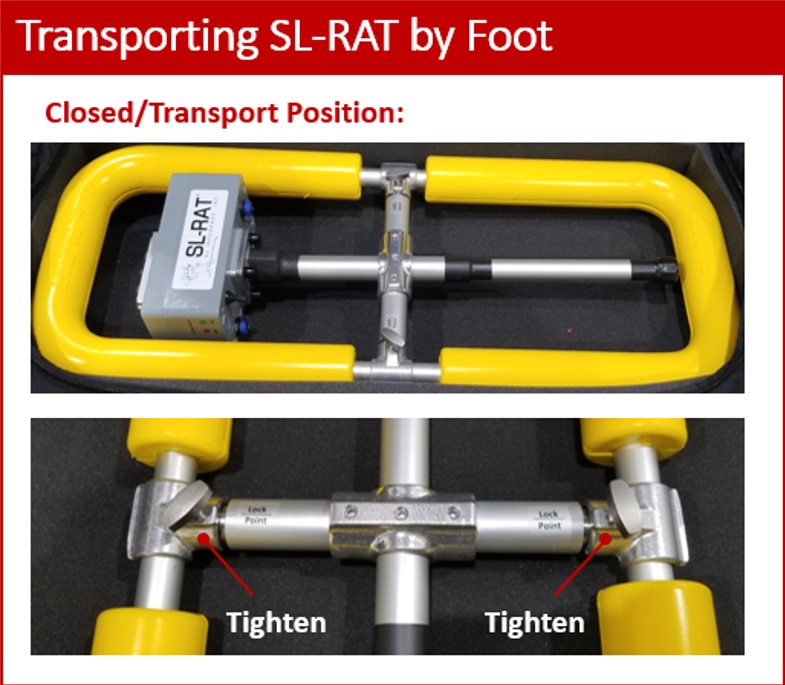

Figure 3. Transporting SL-RAT by foot – tighten lock knobs to secure in closed position

Transporting by Vehicle

When transporting the SL-RAT TX and RX components by vehicle the procedures in this section are required to reduce the possibility of damaging the TX and RX components and to comply with the SL-RAT warranty.

1. Place TX and RX in closed/transport position. See Figure 3.
2. Securely tighten the two lock knobs on both the TX and RX. See Figure 3.
3. Place TX in the carrying case on top of first foam insert. See Figure 4.
4. Place second foam insert on top of TX.
5. Place RX in the carrying case on top of second foam insert. See Figure 4.
6. Place third foam insert on top of RX.
7. Securely close the carrying case. See Figure 4.

Figure 4. Transporting SL-RAT by Vehicle

*If dirty, we recommend wiping down the components prior to placing in the carrying case with a non-abrasive cleaning agent or damp cloth (see Section 8.2.1 on General Cleaning Recommendation). This will reduce fouling of the Foam Inserts and extend the service life of the carrying case. Additionally, it is a good habit to inspect the components prior to transport for damage, for battery charge level, and for dirt or other foreign material that may have become lodged in the microphone or speaker housings.
