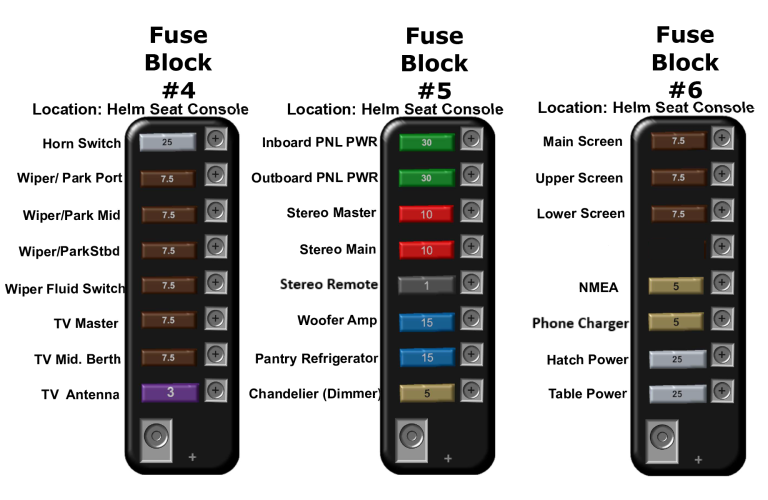

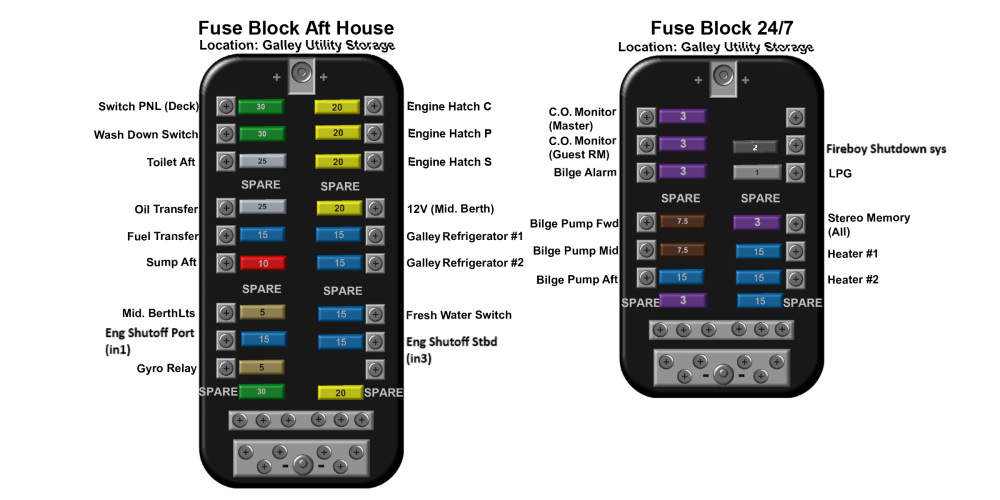

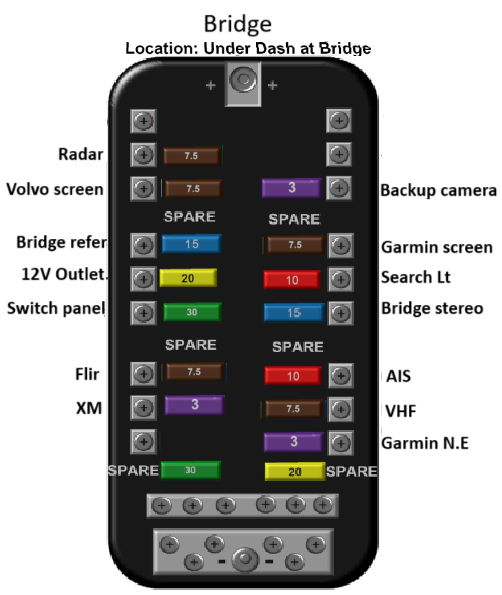

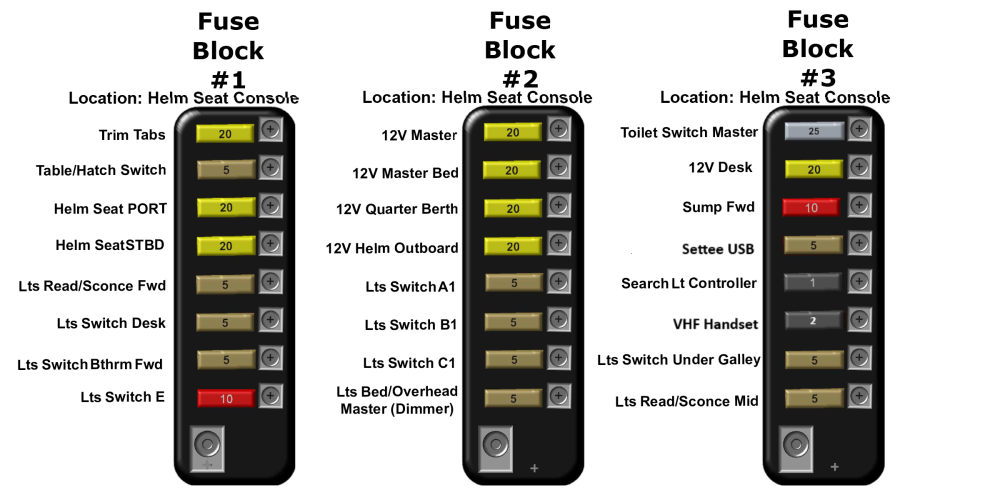

Fuse Location & Values

Standard Features

The bilge pumps operate automatically with electronic float switches when all switches and breakers are in the OFF position.

*The BILGE PUMP and BILGE PUMP2 will run continuously once their switches are placed in the on position. Monitor the outflow accordingly. Do not run when dry.
Thruster Battery and Engine Battery fuse blocks are energized even when the battery switch is off.
