Fuse Location & Values

Fuel System
Main Cabin and Cockpit Lights

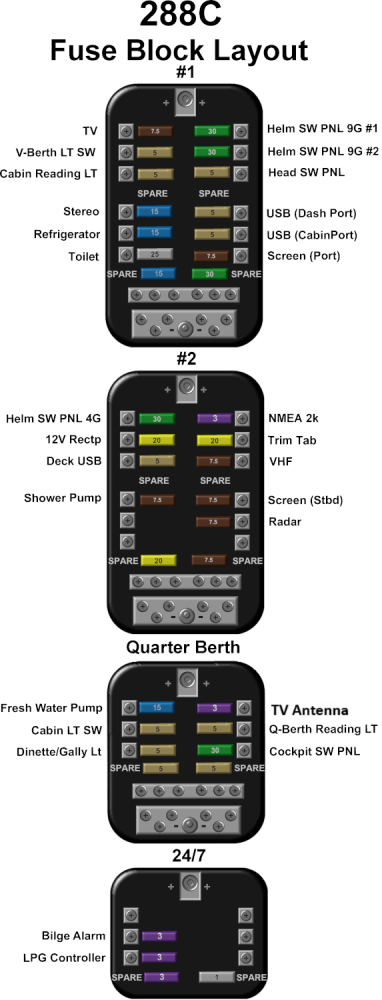

  • Dash fuse blocks are located behind the hinged wood access panel in the head.
  • The 24/7 fuse block is located beneath the control panel in the mid-berth.
  • Fuses are automotive blade type and all values shown below are in amps.
