Battery Configuration

[Northwest Edition]
2 house batteries, 2 engine batteries, 1 thruster batter.

[Luxury Edition]
With lithium battery option – 2 (280A/h) total lithium house batteries, 2 engine batteries, 1 thruster battery.

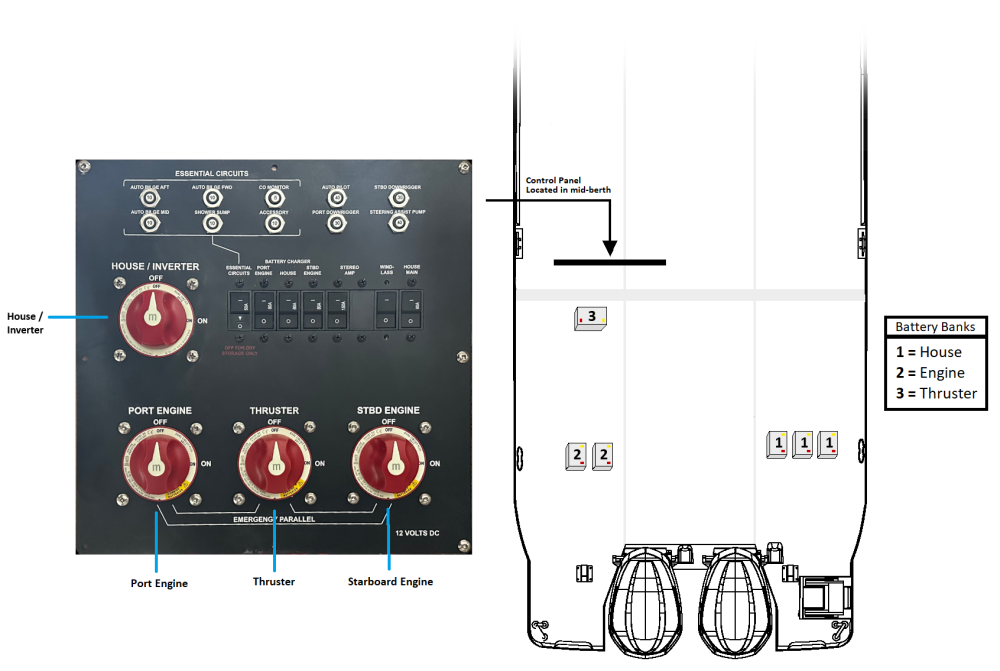

House, engine, emergency parallel and thruster switches are located in the mid-berth. Inverter battery switch and circuit breaker are located in the port-side lazarette.

*The EMERGENCY PARALLEL switch is used in the event that the engine battery drops below the level of charge necessary to start the engine. Use only for EMERGENCY starting of the engine. Once the EMERGENCY PARALLEL switch is placed in the ON position power from the THRUSTER battery will be transferred to the ENGINE battery. Once the engine is running, turn the EMERGENCY PARALLEL switch to the OFF position.
