There may be instances when you want to return a ConveyLinx-Ai Family Module to its “factory default” state. The procedure to do this is the following:
- Unplug all sensors, devices, motors, and network cables such that the only thing connected is power

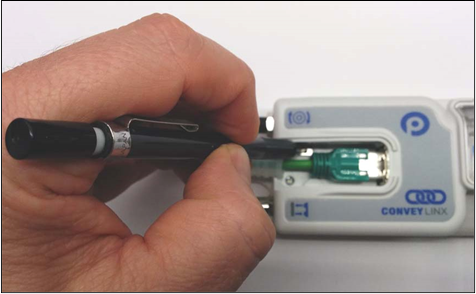

- Press and hold the Module Replacement Button until the Module LED begins to flash and then release
- When the Module Status LED blinks green, the procedure is complete
|
![]() |
Factory Default Settings
| Item |
Value or Setting |
| IP Address Settings |
IP: 192.168.21.20 |
| Subnet Mask: 255.255.128.0 |
| Default Gateway: 192.168.202.1 |
| Left & Right Motor Settings |
Senergy ECO |
| Normal Braking |
| 1 m/s Speed |
| CW Direction |
| 30 mm Acceleration |
| 30 mm Deceleration |
| Module Mode |
PLC I/O |
| Look Ahead & Timing Settings |
JAM Timer = 5.00 |
| Auto Clear Timer = 5.00 |
| Run After Timer = 5.00 |
| Sensor Debounce = 0.10 |
| All Induct Timers = 0.00 |
| Sensors |
Sensors are “ON is Blocked” |
| Connections |
All are Cleared |
