Create Print Rules

Print Rules let you define the availability of a printer and how a print job should be handled, depending on:

• The day of week/time of day.
• Who the sender is
• The value of an attribute of the print job (For example, the page count of a print job)

Notes:

• For Print Direct, you create Print Rules on a Celiveo Virtual Printer. The Celiveo Virtual Printer is a module you deploy on a user’s workstation, in order to capture print jobs.
• For Pull Printing, if you want to apply a print rule universally for all printers, you place the rule on a Celiveo Virtual Printer. If you want to apply a rule to a specific printer only, you place the rule on that printer.
• Make sure that the maximum job file name size sent to a physical printer is 35 characters and 95 for a job sent to a virtual printer.
• IMPORTANT: Rules for a Celiveo Shared Virtual Printer must not have USER OU as a criteria.

Let’s create print rules for the following examples:

1. Example 1 – Force behavior
2. Example 2 – Control printer availability
3. Example 3 – Override restrictions

Example 1:

*Force color print jobs to be converted to grayscale, if the page count is larger than 10 pages.

Stage 1: Select Printer

1. At the Main menu, click . The Printers List is displayed.
2. Select a Celiveo Virtual Printer you want to apply the rule to, and click . Access & Rules is displayed.

Stage 2: Create a New Access & Rules Profile

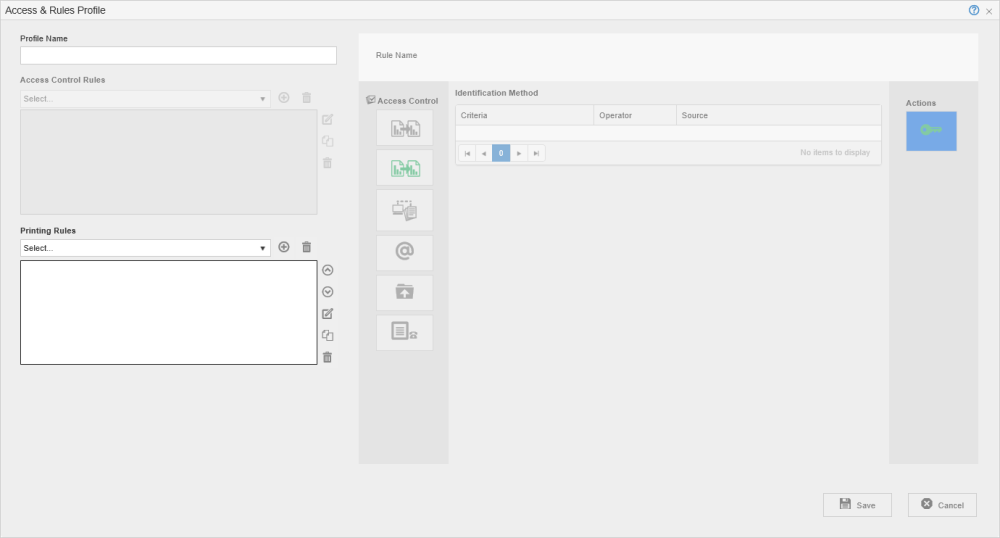

1. Click . The Access & Rules Profile for the new rule is displayed.

2. At [Profile Name] box, specify a unique name (for this example, we will use Rules for Color Printing as the name) for the Access & Rules Profile.
3. Click , located next to the [Printing Rules] drop-down, to add a new rule.

Stage 3: Configure the New Rule

1. At [Rule Name], specify a unique name for the rule (for the purpose of this example we will use Large color jobs as the name).

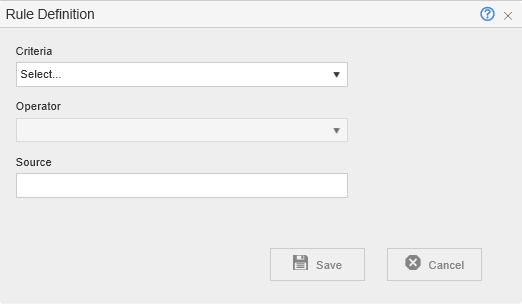

2. Click , located next to [Add]. The Rule Definition displays.

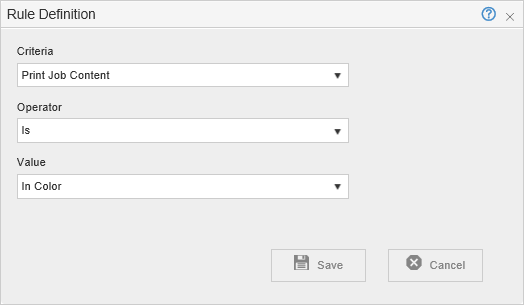

3. From the drop-down lists in the Rule Definition, select options as shown below and click [Save].

4. Once again click , located next to [Add]. The Rule Definition displays.

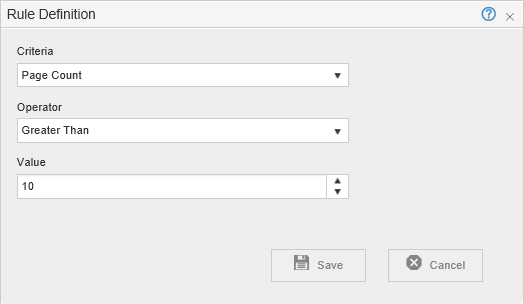

5. Specify options as below and click [Save].

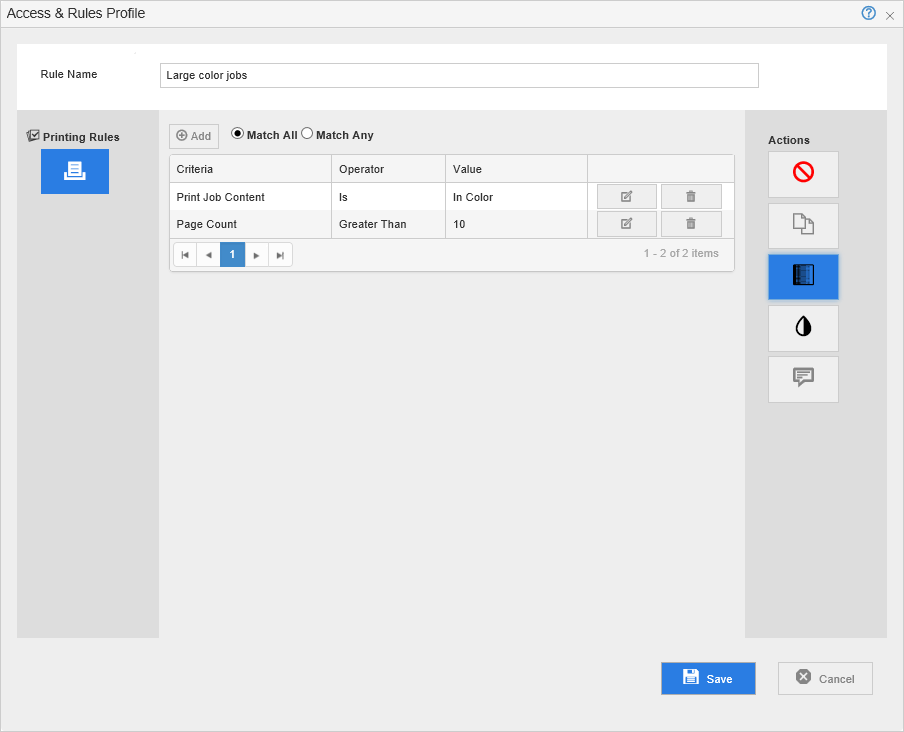

6. In the [Actions] panel, click . The Access and Rules profile should now resemble the illustration below:

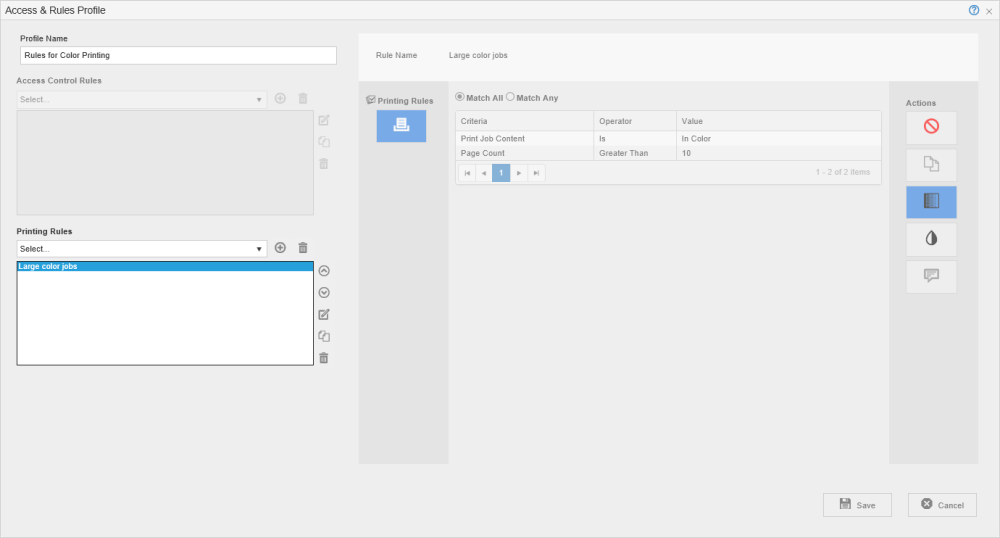

7. Click [Save]. Large color jobs rule is now listed under [Printing Rules].


Example 2:

*Make Printing unavailable outside regular office hours (8.30 AM and 7.30 PM). Notify users if they attempt to print.

Stage 1: Load Access & Rules Profile

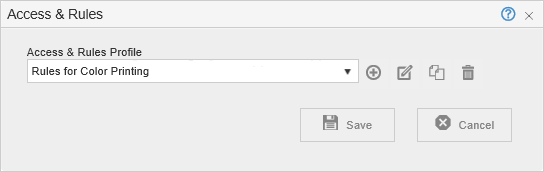

1. From the Printer List, select the printer you modified in the last example and click . Access & Rules is displayed.

2. Click . The Access & Rules Profile displays.

3. Click , located next to the [Printing Rules] drop-down, to add a new rule.

Stage 2: Configure the New Rule

1. At [Rule Name], specify a unique name for the rule (for the purpose of this example we will use No Printing Outside Office Hours as the name).

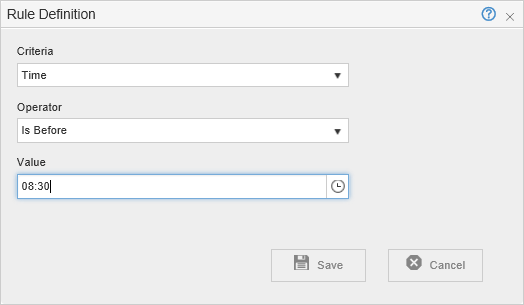

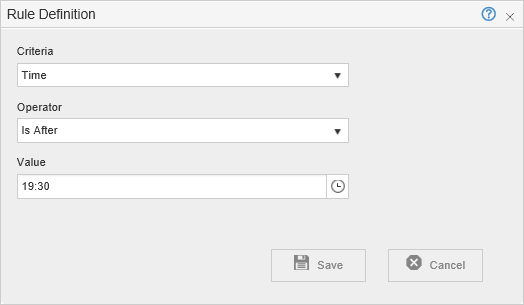

2. Follow the workflow outlined in stage 3 of example 1 to create the two criteria shown below.

3. Select [Match Any].

4. Click .
5. Click . The icon appears next to the button.

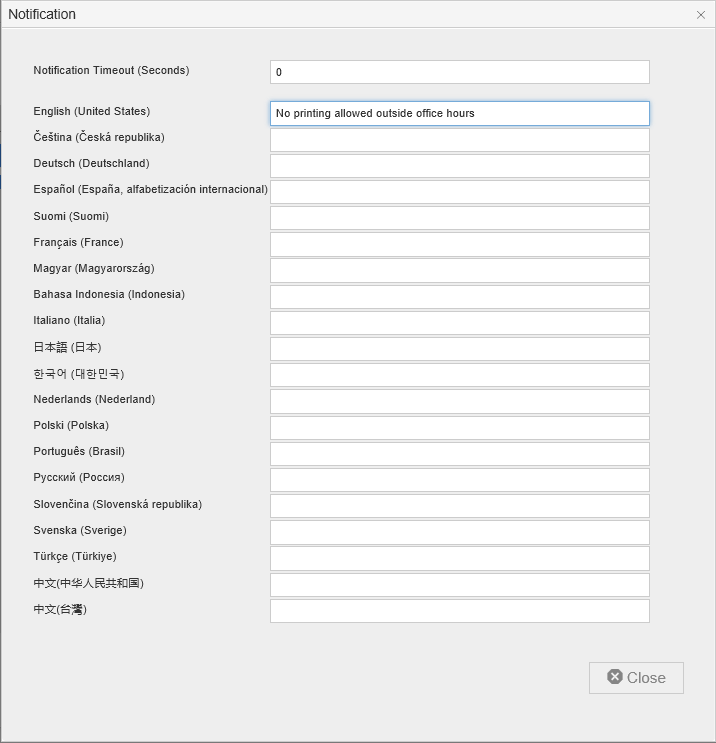

6. Click . and specify the notification as shown below:

7. Click [Close].

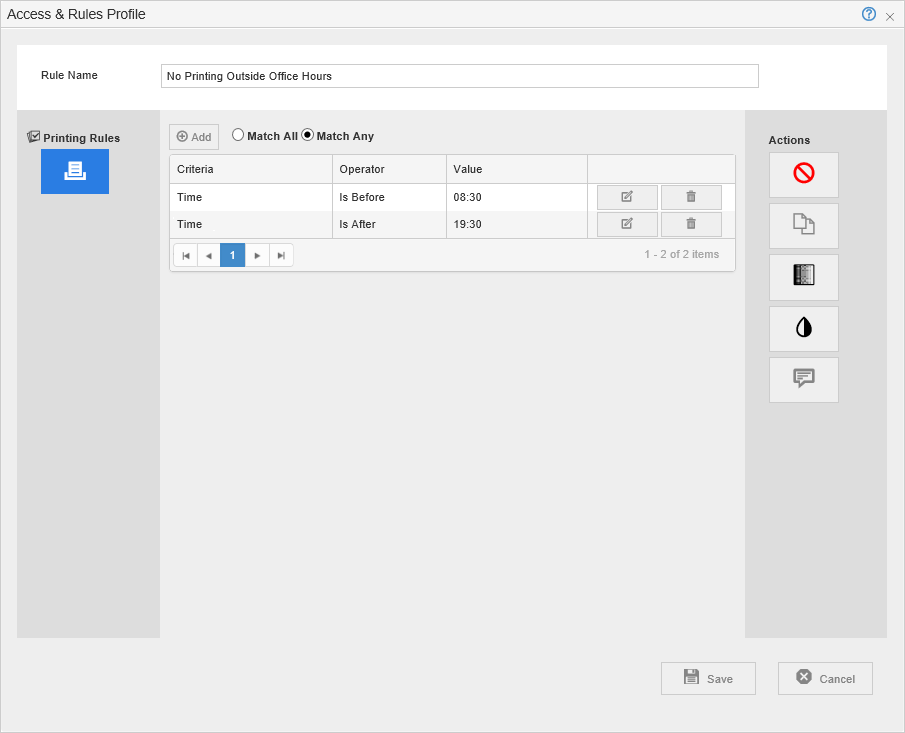

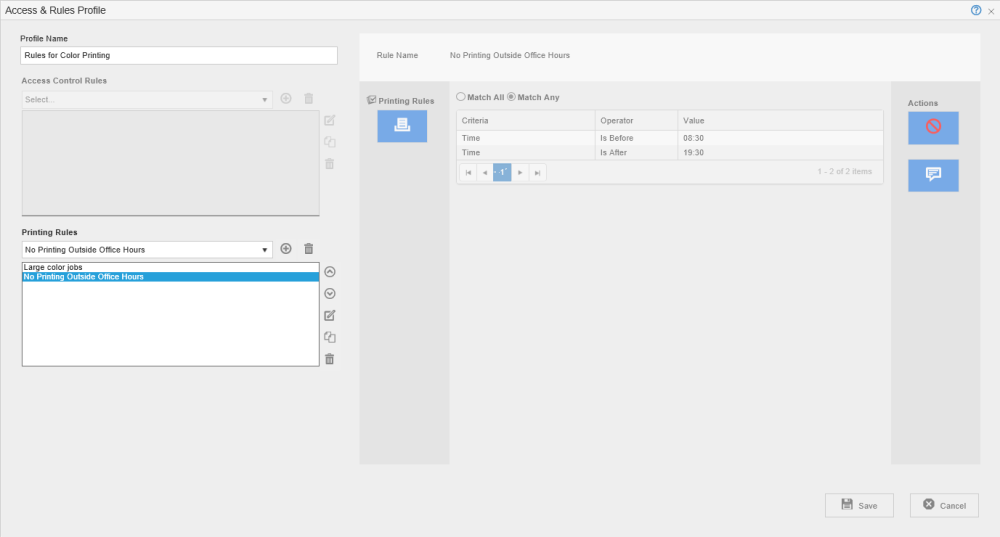

8. Click [Save]. The screen should now look like this:


Example 3:

*Remove all restrictions for head of department.

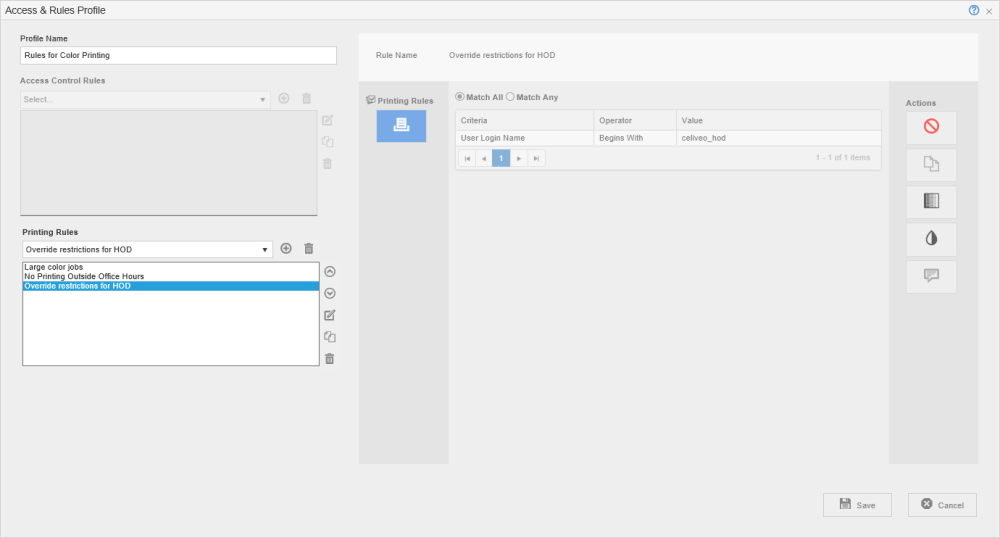

1. Follow the procedure outlined in example 2 and create a new rule as shown in the image below:

2. Click [Save]. You are returned to the Access and Rule Profile.

3. Click to ensure that the Override Restrictions for HOD rule is placed as the first rule.

Note: The first rule is processed before all others. Because the rule triggered by the user name that begins with Celiveo_hod is processed first, that user has unrestricted access. Hence, the subsequent rules do not apply to that user.

Important information

The CVP rules and Printer print rules are complementary and do not replace one another.
CVP rules act and inform the user at the PC level, the admin-defined message (optional) shows up immediately in a popup window to inform the user the job has been cancelled as it breaks the rules.
Printer print rules are run at the printer level and will inform the user (if a message is defined) on the jobs list (job list in color when the printer technology allows it, plus admin-defined message in job details).

Example:

You can define the corporate rules in the CVP:

• Printout from Outlook shall be duplex, toner saving, b&w
• Jobs with CONFIDENTIAL in title shall be stopped
• Any print job that may cost more then 10$ shall be stopped


Rules in printers are ideally device-centric, made to lower cost and avoid errors by end-users (trying to print a paper format not available on that printer model):

You can define the following rules on small non-duplex A4 printers:

• No print job of more than 25 pages
• No A3 paper print job
• No duplex job (printer is not duplex)


You can define the following rules on duplex and A3-capable printers:

• No print job of more than 100 pages, ask users to contact print room service


Limitations

Forced B/W, Forced Duplex, and Toner Saving actions are supported only by the following printers:

• HP
• Konica Minolta
• Ricoh Smart SDK (SOP2)
• Toshiba
• Lexmark
• Xerox
