Wiring Diagrams for the following modules:
EZ-QUBE-N – Article Number 1510-5000
EZ-QUBE-HTBF-N – Article Number 1510-4120
EZ-QUBE-W – Article Number 1510-2060 (When Speed Out is set to NPN from Mobile App)
EZ-QUBE-W-Ai – Article Number 1521-0060 (When Speed Out is set to NPN from Mobile App)
Single NPN Module Wiring

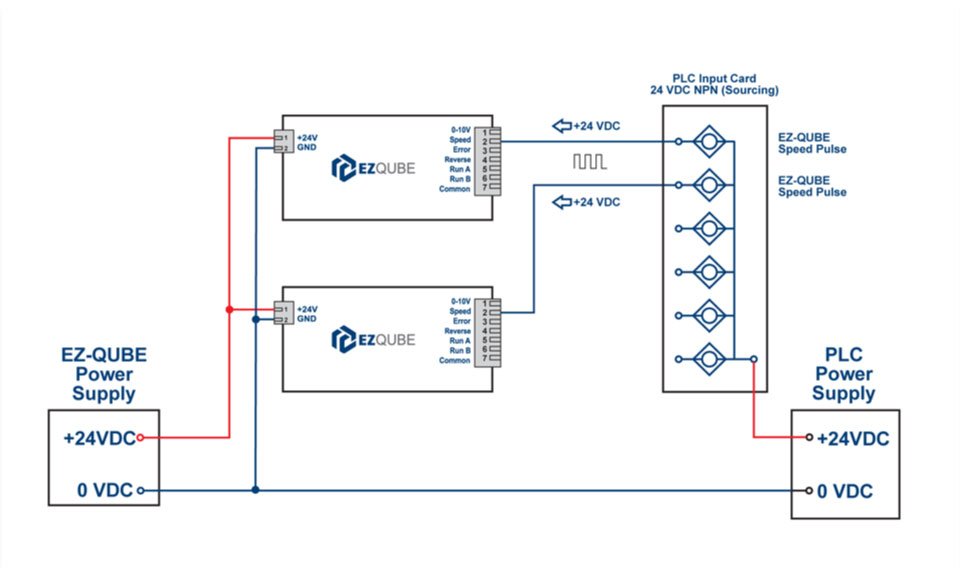

Wiring Multiple NPN Modules in Parallel
