After you have connected to the Web Server, using the instructions provided in earlier sections that are listed on the previous page, the configuration screen will be presented.

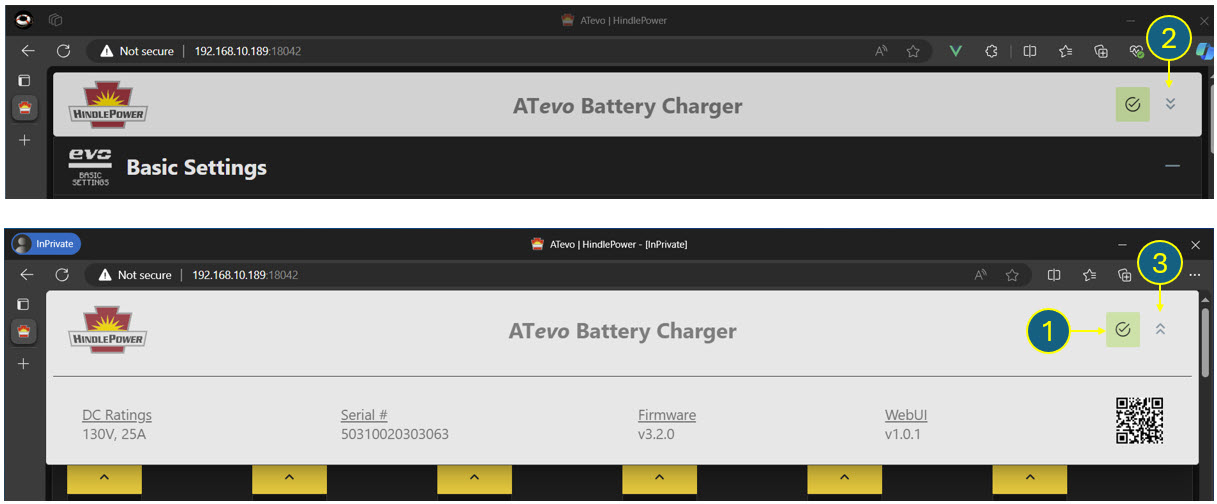

Information Header
- The
![]()
button can be used to log out and end the session. - Use the dropdown button
![]()
to show additional information about the connected charger. - Hide the expanded header with the
![]()
button.
button can be used to log out and end the session.
to show additional information about the connected charger.
button.
Configuration Panels
Configurable items are grouped into Panels. Each Panel corresponds to an item on the Display’s Main Menu as shown in Section 3.3.1 of the Operations Manual. Refer to the Operations Manual or relevant option manual for further information about any of these configurable items.

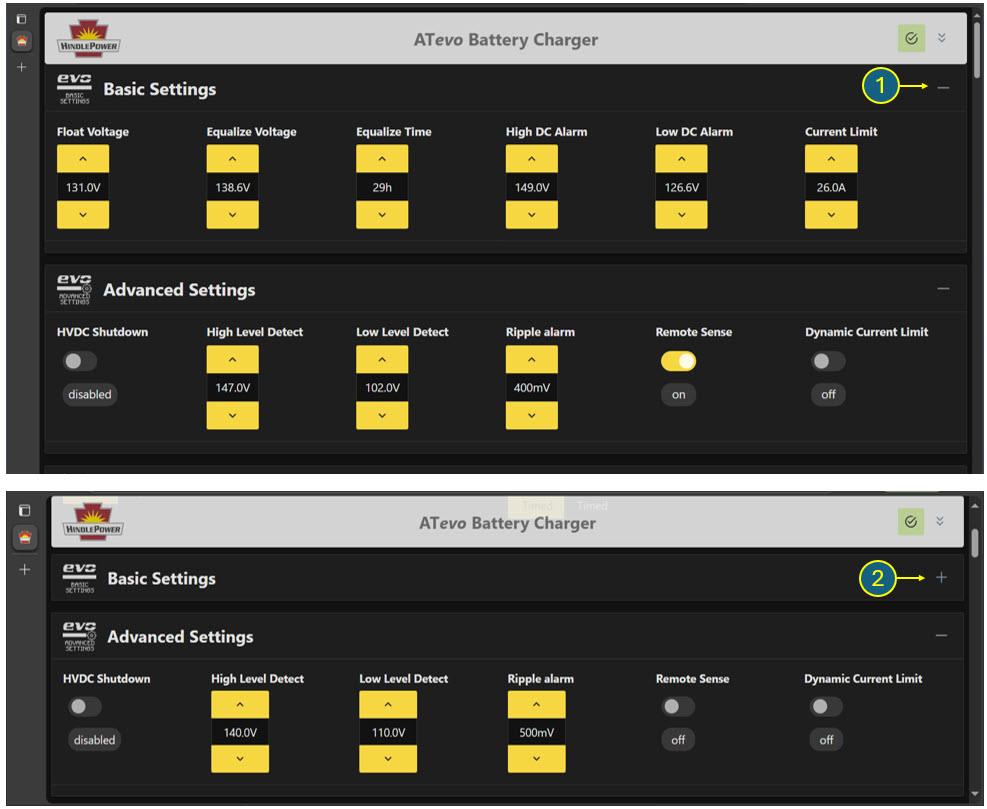

Hiding or Revealing Panel
- To hide a panel, use the minus
![]()
button in the upper right hand corner of each panel. The default state on page load is ‘revealed’. The state is not stored. - To reveal a panel’s contents if it has been hidden, use the plus
![]()
button in the upper right hand corner of each panel.
button in the upper right hand corner of each panel. The default state on page load is ‘revealed’. The state is not stored.
button in the upper right hand corner of each panel.

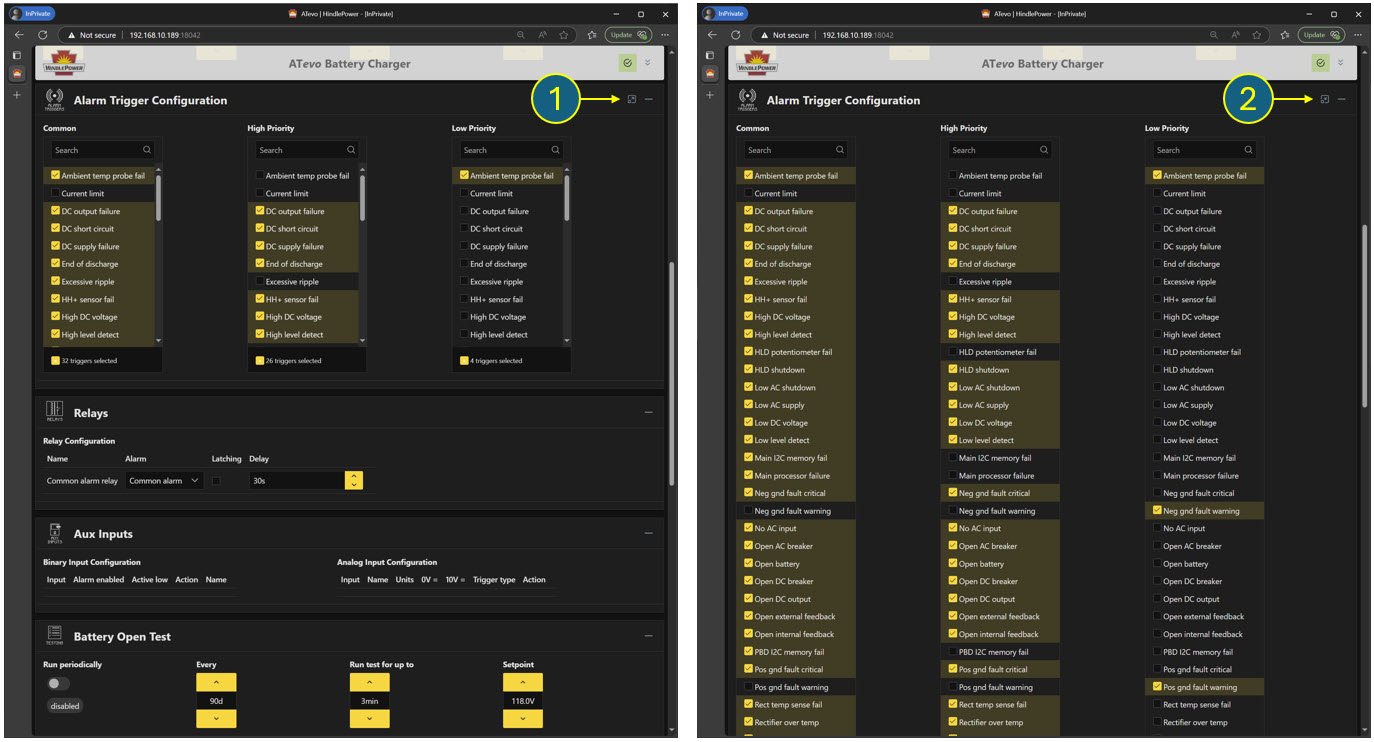

Viewing Full List or Scrollable View – Select Panels
- If a panel has a list shown in a scrollable view (its default state) and you wish to see the full list, use the
![]()
button. Note: This change in state will not be stored for the next time you view the Web Server Configuration screen. - If you wish to restore a full list to its scrollable view, use the
![]()
button.
button. Note: This change in state will not be stored for the next time you view the Web Server Configuration screen.
button.
