/BTI/TE_INT_MAP is a standard configuration table as part of the Integration Framework. It is used to define the mapping between ActiveControl fields values and their equivalent in the 3rd Party System – at a Business Task level.

Field Explanation of Field
EXTSYS_NO Integration system number [from /BTI/TE_INT_SYST]
EXTSYS_NAME External System Name [from /BTI/TE_INT_SYST]
DIRECTION Not required for ChaRM Integration.
SEQUENCE_NO Numerical sequence of the fields.
TEFIELDREF This is the source field of the mapping. This table name is required in the field as well.
EXTERNAL_REF This is the same field as above. (it is just the way the Integration works)
KEY_FIELD Not required for ChaRM Integration.
TECUSTFLD_REF Not required for ChaRM Integration.
DEFAULT_VALUE Not required for ChaRM Integration.

Example Customer Configuration

The below illustrates some example configuration of /BTI/TE_INT_MAPP table at a customer implementation of the ActiveControl ChaRM integration.

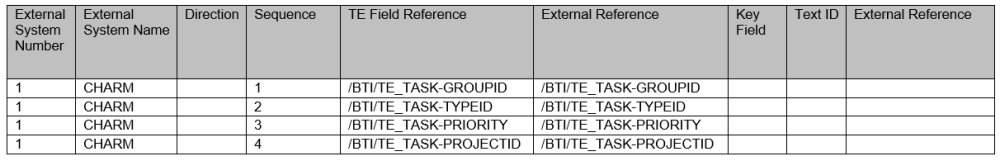

Figure: Example customer configuration of /BTI/TE_INT_MAPP
