4.13 Security Certificates

Site Builder is deployed with a self-signed SSL certificate, but optionally can be configured with a certificate from a private or public certificate authority.

Site Builder supports SSL certificates generated using its own private key or using an external private key.

Method 1 – Use Site Builder’s private key

1. Select Security Certificate from the System menu

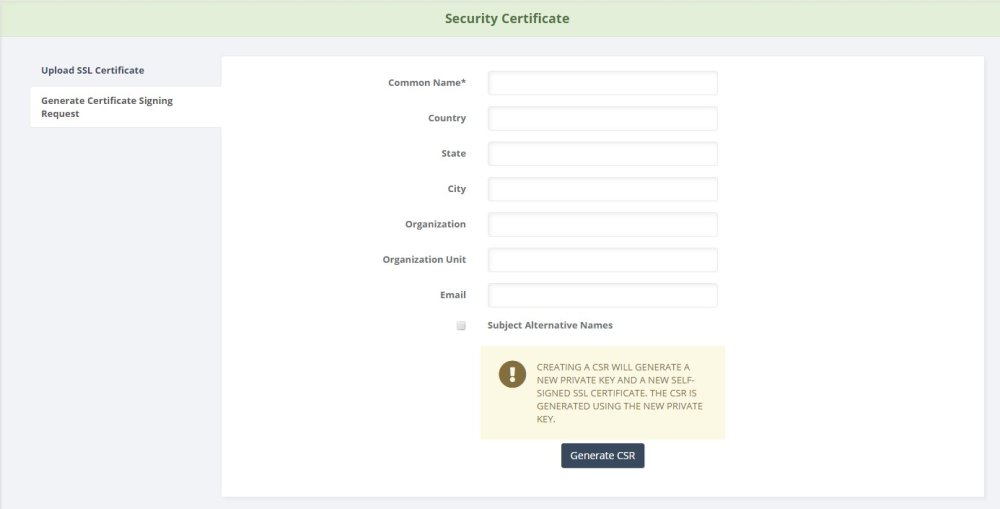

2. Select the Generate Certificate Signing Request tab
3. Complete the Certificate Signing Request form

!The common name must match the fully qualified domain name of the server.

1. When complete, click Generate CSR
2. Download the CSR file
3. On your Certificate Authority, generate a certificate using the CSR

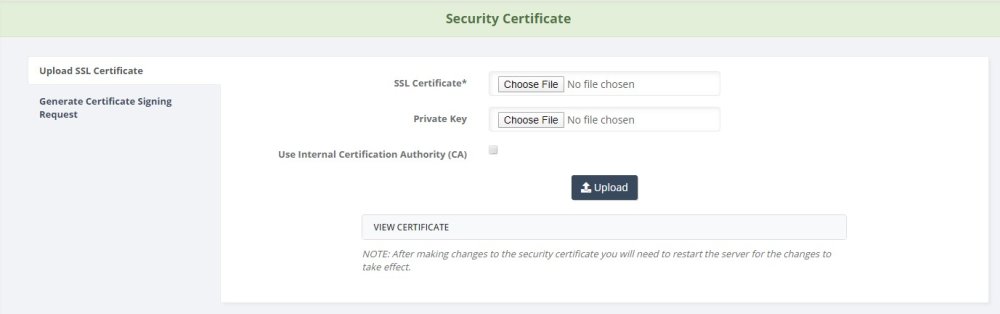

1. Select the Upload SSL Certificate tab
2. Click Choose File to the right of SSL Certificate and upload the certificate generate by your certificate authority

*Uploading a Private Key is not necessary as the certificate was generated using Provisioning Manager’s private key

3. If the certificate was generated using a Public Certificate Authority, click Upload to complete the process
4. If the certificate was generated using an Internal Certificate Authority, select the Use Internal Certificate Authority (CA) check box
5. Upload the Root Certificate from your Internal CA
6. Click Upload to complete the process

*Site Builder must be restarted for the changes to take affect. This can be done using the Appliance Manager CLI or using VMWare tools.

Method 2 – Use an external private key

1. Select Security Certificate from the System menu
2. Select the Generate Certificate Signing Request tab
3. Complete the Certificate Signing Request form

!The common name must match the fully qualified domain name of the server.

1. When complete, click Generate CSR
2. Download the CSR file
3. On your Certificate Authority, generate a certificate using the downloaded CSR
4. Select the Upload SSL Certificate tab
5. Click Choose File to the right of SSL Certificate and upload the certificate generate by your certificate authority
6. Click Choose File to the right of Private Key and upload the private key from your certificate authority
7. If the certificate was generated using a Public Certificate Authority, click Upload to complete the process
8. If the certificate was generated using an Internal Certificate Authority, select the Use Internal Certificate Authority (CA) check box
9. Upload the Root Certificate from your Internal CA
10. Click Upload to complete the process
