Motor Rotation Definition
The EQUBE Module uses a Clock-Wise (CW) and Counter Clock-Wise (CCW) motor rotation definition. The reference for this distinction is based upon viewing the MDR from the cable exit end of the roller.

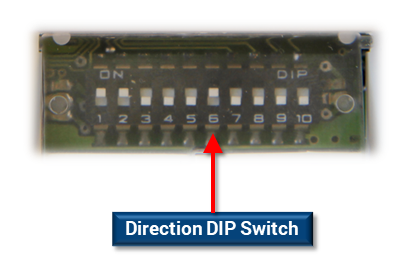

| Switch | Function | OFF | ON |
|---|---|---|---|
| 6 | Direction of Rotation | CW | CCW |
