12V Helm Control Operation

The bilge pumps operate automatically. The bilge pump switches control the 3 bilge pumps. The aft and mid pumps will run continuously once their switches are placed in the ON position. Monitor the outflow accordingly. Do not run when dry.

Helm Control (Left)

1. Horn
2. Docking Light
3. Wiper Port Side
4. Wiper Starboard Side
5. Forward Flood Light
6. Aft Flood Light

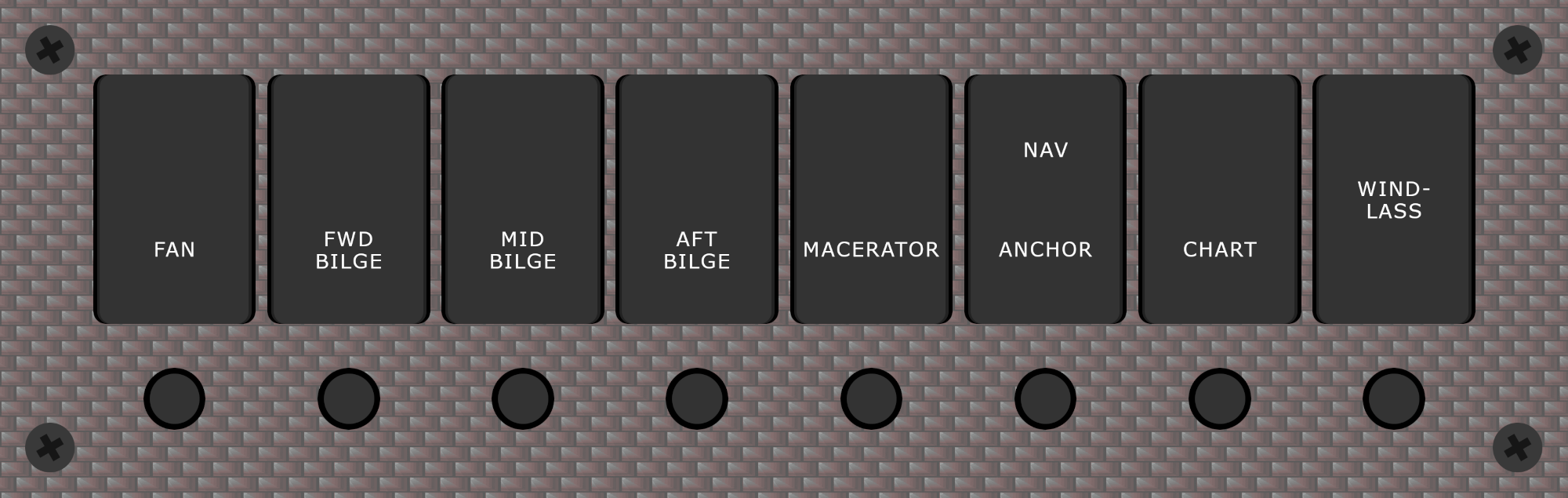

Helm Control (Right)

1. Dashboard Fan
2. Forward Bilge Pump
3. Mid Bilge Pump
4. Aft Bilge Pump
5. Macerator Pump
6. Nav Light / Anchor Light
7. Chart Light
8. Windlass (Up/Down)
