Fault Injection View

The [Fault Injection] view provides the feature for inserting the code needed to test additionally into the specific area of the function to be tested.

1. Drag and drop the function that you want to inject a fault from [Test Navigator view] or [Unit Test view] to [Fault Injection view].

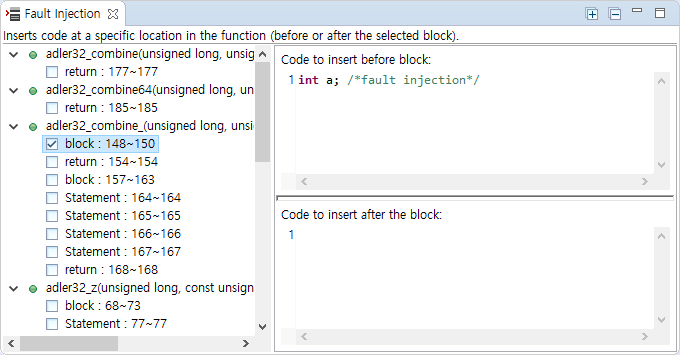

2. In the tree structure on the left of the view, click the node that you want to inject a fault and, on the right of the view, enter the user code to insert before/after the block.

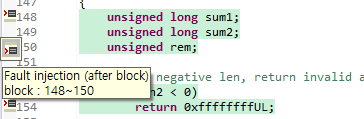

   • When check checkboxes of nodes to insert, the user codes are applied. In the source code editor, (before the block), (after the block) markers appear at that nodes. When mouse is on the markers, the tooltip about fault injection information appears.


!Single-line comments (//) cannot be used.

Toolbar menu in the Fault Injection view

Toolbar icon	description
Expand All	Expand all function trees in Fault Injection view.
Collapse All	Collapse all function trees in Fault Injection view.

Context menu in the Fault Injection view

Context menu of function nodes

Menu	Description
Delete	Delete the function inserted by users.

Context menu of block nodes

Menu	Description
Cut Contents	Cut the contents inserted by user before/after the block.
Copy Contents	Copy the contents inserted by user before/after the block.
Paste Contents	Paste the contents inserted by user before/after the block.
Delete Contents	Delete the contents inserted by user before/after the block.
Select	Select the checkboxes of the selected nodes.
Deselect	Deselect the checkboxes of the selected nodes.

*When modifying the source code, contents of the fault injection may not be properly reflected. In case of modification, contents of the fault injection must be rewritten.
