The architecture of Testimony comprises four types of systems as below:
- Central system (usually Solution Manager)
- Source system to be recorded (e.g. ECC development, test and production)
- Target system to be played back into (e.g. Copies of ECC production)
- Bot systems to run the bots used for playback (Windows machines)

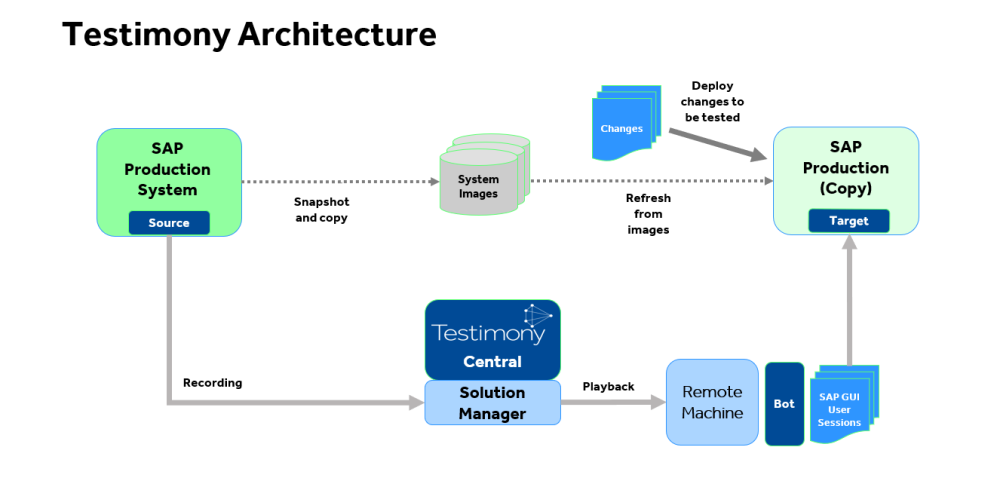

The relationship between the systems is as per the image below:
