This table is used within the Integration Framework to define the Process Identifiers that are used within the Integration.

As part of Jenkins integration, only CREATE process code is used. However it is a slightly unique use of CREATE, as in most other existing Integrations such as with ServiceNow and JIRA, the CREATE is used to create a Business Task within ActiveControl.

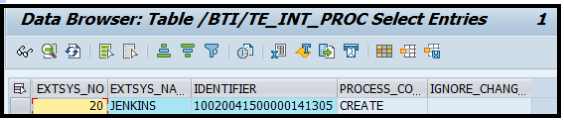

Figure: Only the CREATE proces code is used as part of the Jenkins integration


  1. EXTSYS_NO needs to match the Number configured in /BTI/TE_INT_SYST.
  2. The Identifier is the Deployment Status GUID from /BTI/TE_TASKSTAT at which point the Integration is being triggered. For the triggering of automated testing, it will be Deployment Status of the Test Queue at which point Jenkins should be triggered.
