Working with the Events Screen

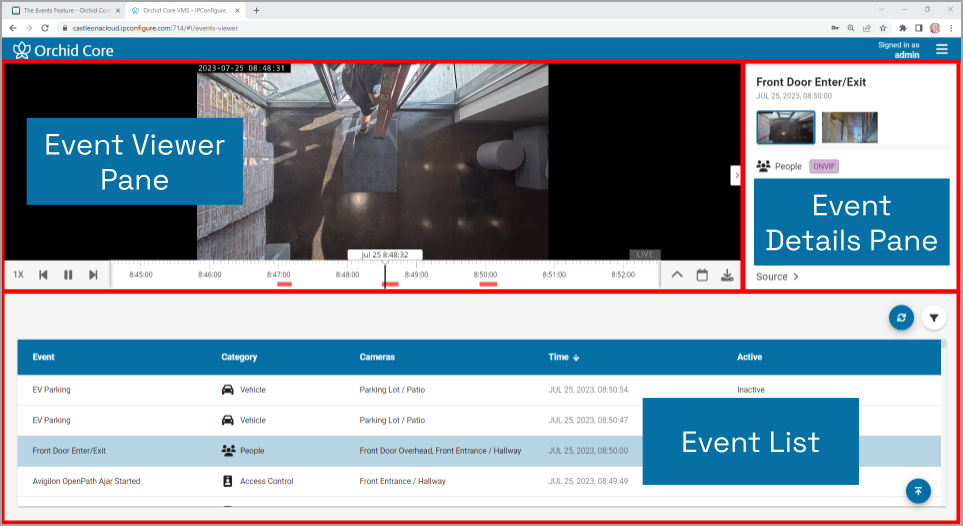

The Events screen is comprised of three main sections: the Event List, the Event Viewer, and the Event Details pane. You’ll use the Event List to select an event, the Event Viewer to view the video (if any) associated with the event, and the Event Details pane to view specific event information or to switch cameras (if multiple cameras are available).

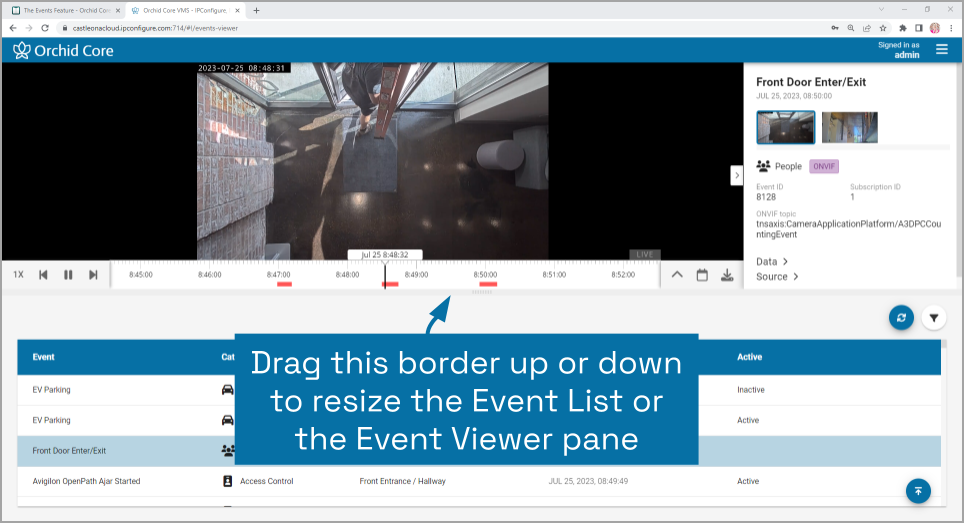

The Event Viewer and the Event List sections are resizable.

1. Click on the border between these sections to resize them.
   1. Drag the border up to increase the size of the Event List pane.
   2. Drag the border down to increase the size of the Event Viewer pane.

The Event List

	Click this icon to filter the Event List
	Click this icon to update/refresh the Event List
	Click this icon to return to the top of the Event List
	Click this arrow icon to re-order the Event List by the date and time of the events (newest to oldest, or oldest to newest)

The Event List displays each occurrence of any event defined by the Administrator. For each event, the system provides the event name, category, associated cameras (if any), the date and time of the event, and the active/inactive status.

1. Use the scrollbar on the far right side to scroll up and down through the list.
2. Click on any event to access it.
   1. If one or more cameras are associated with this event, video will appear in the Event Viewer pane.
   2. Event details will appear in the Event Details pane (in the upper right corner of the screen). (If the Event Details pane is not open, click the left arrow icon at the right edge of the Event Viewer pane.)
3. To refresh the list (with the most current events), click the Refresh icon.
4. To return to the top of the event list, click the Return to Top icon.

Sorting the Event List

You can sort the Event List by the time of the event, so you can start your review with the latest events or the oldest events.

1. To sort the list, click the arrow icon at the top of the Time column.
   1. Each time you click the icon, the sort order will switch between ascending and descending.

Filtering the Event List

The Event List may be filtered to display only the events that you specify. You may filter the list by category, by date, or by a combination of category and date.

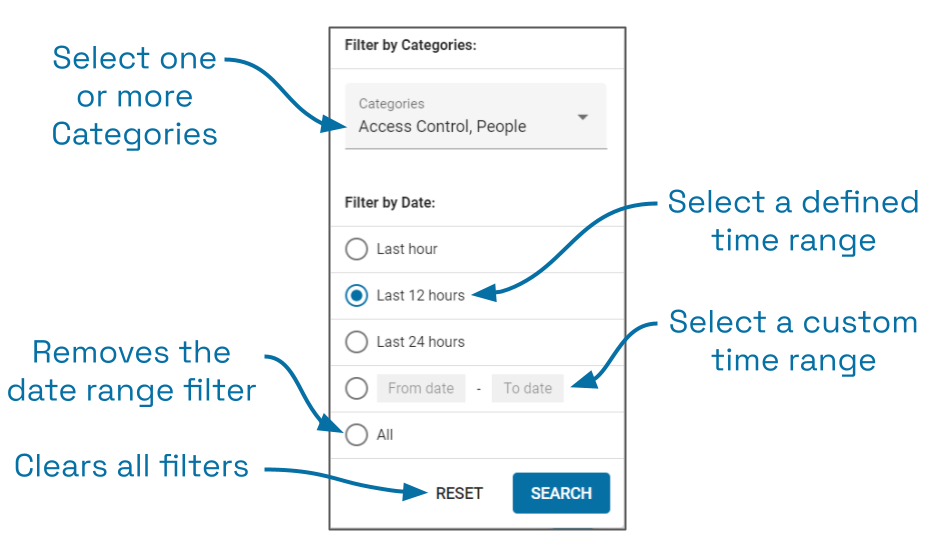

1. To filter the Event List, click the Filter icon. The filter dialog will open. This gives you the ability to filter by category or by date (or both).

2. To filter the list by category, click on the Categories drop-down list.
3. Mark the checkboxes that correspond to the categories that you want to view.
   1. Un-mark the categories that you don’t want to view.
   2. Click outside of the Categories drop-down to continue.
4. Click the Search button to apply your filter and view the updated list.

5. To filter the list by date, click any of the available radio buttons.
   1. Selections include the Last hour, the Last 12 hours, and the Last 24 hours.
   2. The All selection essentially clears the date filter and displays all of the events that meet the category filter (if applicable).
6. To set a custom date and time range, click on the From date – To date radio button, then click the From date – To date label.

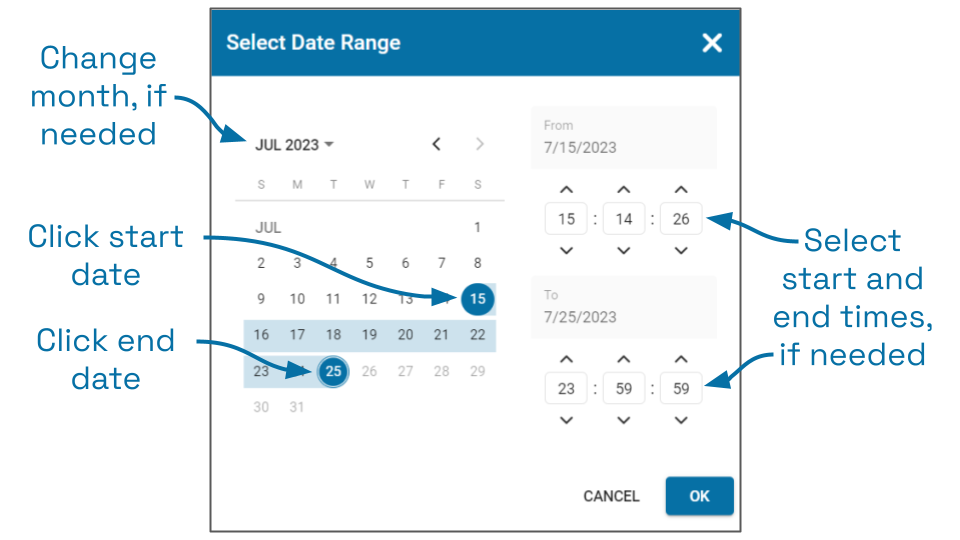

7. When the Select Date Range dialog opens, use the calendar to select your start and end dates.
   1. Click your start date first.
   2. Then click your end date.
   3. These dates will be shown in the From and To fields, respectively.
8. Next, use the From and To sections to enter custom start and end times, if needed.
9. Click the OK button to finalize your custom date filter.
10. Click the Search button to apply your filter and view the updated list.

11. To clear all filters, click the Reset button.
12. Click the Search button to view the updated list.

The Event Viewer

	Click this icon to open the Event Details pane
	Click this icon to close the Event Details pane

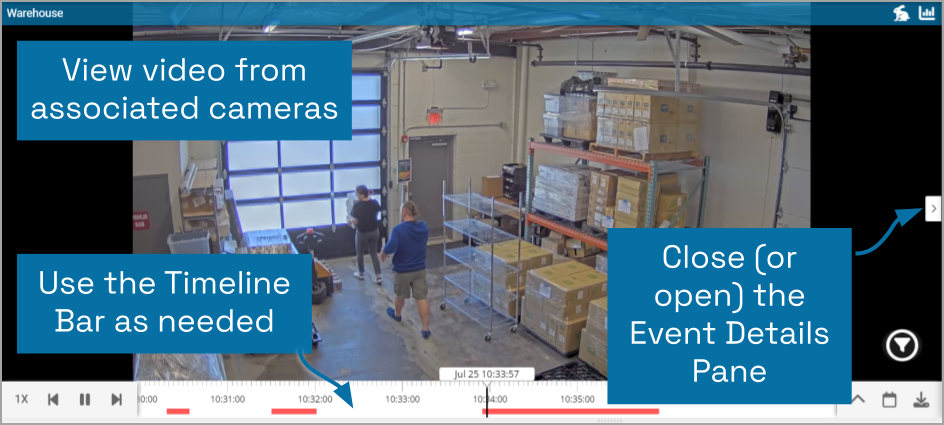

The Event Viewer pane allows you to view video from any cameras that are associated with the event, one Player at a time.

When you select an event from the Event List, video from that specific date and time will appear in the Event Viewer (if associated cameras were selected). The Timeline Bar and viewing controls should all be functional, so you can use the Event Viewer pane much like you use the main Stage screen. Refer back to the Timeline Bar Overview, Viewing Video, and Exporting Video sections for more details.

From the Event Viewer, you can open and close the Event Details pane.

1. Click the left arrow icon to open the Event Details pane.
2. Click the right arrow icon to close the Event Details pane.


The Event Details Pane

	Click this icon to see more details for an event data point
	Click this icon to hide details for an event data point

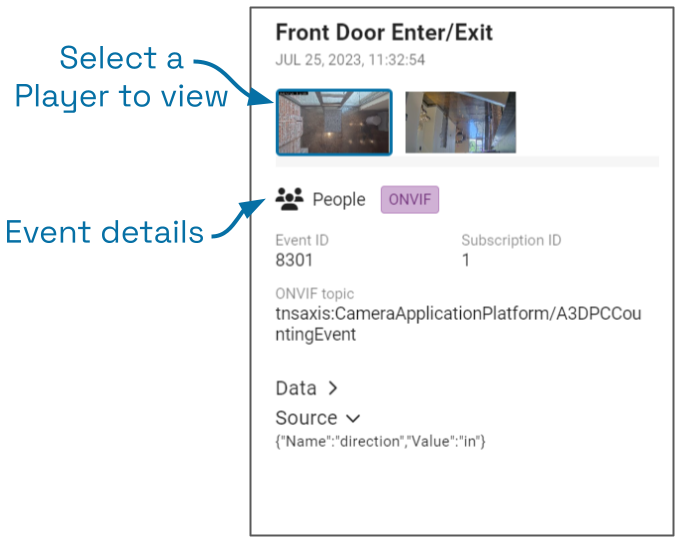

The Event Details pane allows you to view the details associated with the event.

When you select an event from the Event List, the details pane will be updated with all of the related information. The details pane will show the event name, a thumbnail from each of the associated cameras (if any), the category, the event type, and the details about the input that triggered the event (if available).

1. To open (or close) the Event Details pane, use the tab on the right edge of the Event Viewer pane.
2. Click on any available thumbnail to display it in the Event Viewer pane. (When you switch Players, the Timeline Bar will return to the start time of the event.)
3. Click on any Expand icon to view more details about a listed data point.
   1. Click on the Condense icon to hide the extra details.
