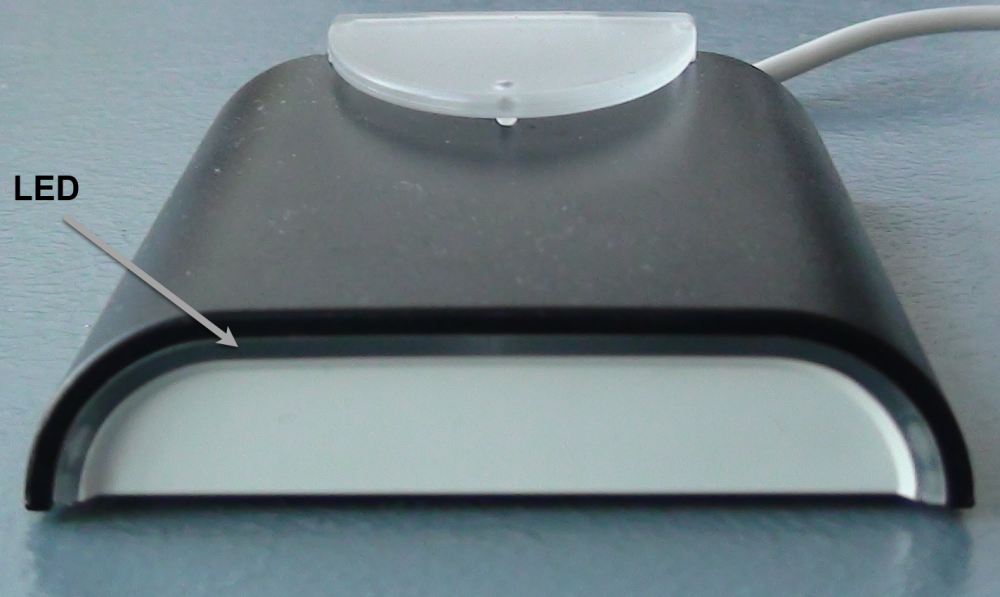

LED Behavior
- LED Flashes 3 times: The user does not have any pending job.
- LED Flashes 6 Times: The user is not found\authenticated.
| Card Type | |
| 125 Khz | Casi Rusco, HID Prox, Indala Prox |
| 13.56Mhz | HID iCLASS, ISO1569, ISO14443A, Legic, Mifare DesFire, |
| General Specifications | |
| Supply Voltage | 25ºC |
| Recommended USB Operating Voltage | 4.35 ‐ 5.00 VDC |
| Operating and Storage Environments | |
| Operating Temperature Range | 0° ‐ 50° C (32° ‐ 122° F) |
| Storage Temperature Range | 20° ‐ 65° C (‐4° ‐ 149° F) |
| Relative Humidity, non‐condensing 25ºC: | 10 ‐ 90% Relative Humidity |
| Reader Interface Connection | USB Type‐A standard |
| USB Compliance | 1.1, 2.0 |
| Interface | |
| Visual | Status indicators: Dual color LED Embedded: Green = Ready, Red = Busy External: White = Ready, Blue = Busy |
| Audible | Frequency: 2800 Hz |
| Mechanical | |
| Dimension | 66 mm x 55 mm x 9 mm / 2.59” × 2.17” × 0.35” |
| Weight | 14 grams / 0.03 lbs |
| Color | Black |
| Electrical Specifications | |
| Typical Read Height | 25.4 mm Typical; Up to 76.2 mm Dependent on Proximity Card type and Environmental Conditions |
| Certifications | |
| Canada | ICES |
| European Union | CE, RoHS (REACH), WEEE |
| USA | FCC, UL |
