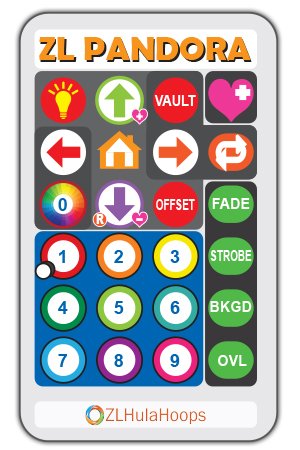

ZL Pandora 24 Key Remote is used to configure and customize the hoop. The hoop always starts in shuffle mode and last configurations that was saved.

ZL Pandora Smart Led Hoop Remote

RED MODES – Always ON, User Customization
zlp_RED MODES

GREEN MODES – On/Off, SFX add onto Patterns and Hoop
zlp_Green Modes

RED MODES – Configuration Buttons
1- ZLP Red Brightness Button Brightness Button
2- ZL Red Pattern Vault Button Pattern Vault Button
3- ZL Red Color Wheel Button Color Wheel Button
4- ZL Red Pattern Vault Button Offset Button

GREEN MODESSFX Add On Configuration Buttons
1- ZLP Green SFX Fade Button Fade Button
2- ZLP Green SFX Strobe Button Strobe Button
3- ZLP Green SFX Background Button Background Button
4- ZLP Green SFX Overlay Button Overlay Button

DARK ORANGE MODE – Shuffle Configuration Button
1- ZLP Dark Orange SFX Shuffle Button Shuffle Config Button
2- ZLP Magenta Arrow Down Button Reset Arrow Down Button when in Shuffle Config Off Mode

PINK MODE – Save Favorite Patterns & Save Favorite Groups Button
1- ZLP Pink Save Pattern-Group Button Save Favorite Pattern/Group Button
2- ZLP Green Arrow Up Button In Save Favorite Pattern save in multiple slots
3- ZLP Magenta Arrow Down Button In Save Favorite Pattern delete multiple slots

LIGHT ORANGE MODE – Home Mode & Fast Config Change + Smart SFX & Color Wheel On/Off
1- ZLP Light Orange Home Button Home Button
2- ZLP Green Arrow Up Button Arrow Up Smart SFX Mode On/Off
3- ZLP Magenta Arrow Down Button Arrow Down Smart Color Wheel Mode On/Off
4- ZLP Red Arrow Left Button Fast Color Wheel Mode Option Change Button
5- ZLP Dark Orange Arrow Left Button Fast Shuffle Mode Option Change Button

BLUE Numeric Keypad & Color Keys – Starts ZL Pandora Shuffle Mode
1- zlp Blue Numeric Keypad Button Numeric Keypad Buttons / Use Colors to Start in Selected Color
2- ZLP Red Number 1 Button Toggle button Red Color/White Color/Leds Off

WHITE Arrow Keys – Used in Modes to Select Options & Settings
1- ZLP White Arrow Left Right Button Left Right Buttons for Selection when Options/Settings LEDS are white
2- ZLP White Arrows Up Down Button Up Down Buttons for Selection when Options/Settings LEDS are white
