Module Configuration Screen Tabs / Main /

Motor Info Tool Tip	ConveyLinx ERSC ✅	ConveyLinx-Ai 24V ✅	ConveyLinx-Ai 48V ✅
	ConveyLinx-ECO ✅	ZPA Mode ✅	PLC I/O Mode ✅

When you are Online with a ConveyLinx module; on the Main Tab you can hover your mouse over the graphic of a motor (Left or Right) and a Tool Tip will display showing the available motor information. Depending on the ConveyLinx module type, the amount of motor information displayed will vary.

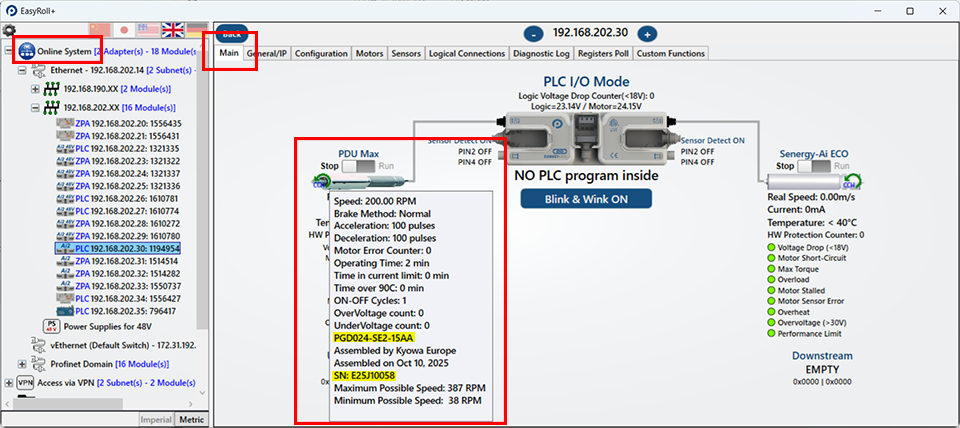

ConveyLinx-Ai/Ai2/Ai3 24V and 48V Family

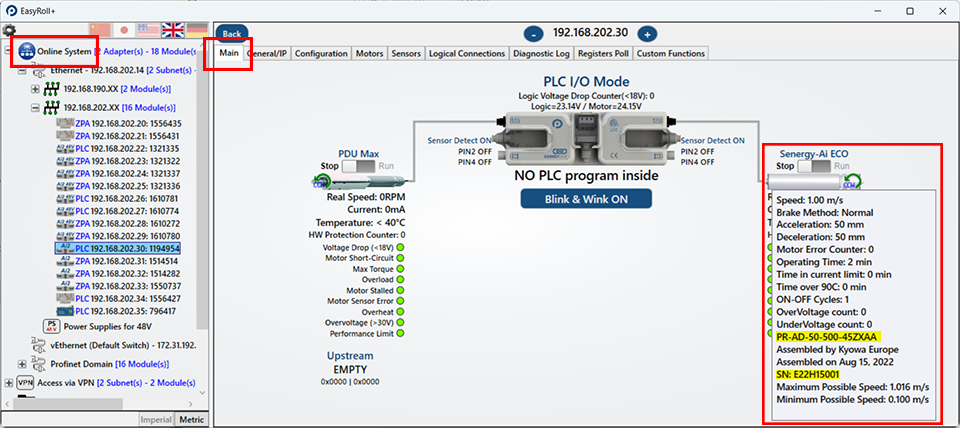

Please note that for Senergy-Ai series motors, the ConveyLinx module motor Tool Tip will display the Part Number and Serial Number of the connected Pulseroller drive.

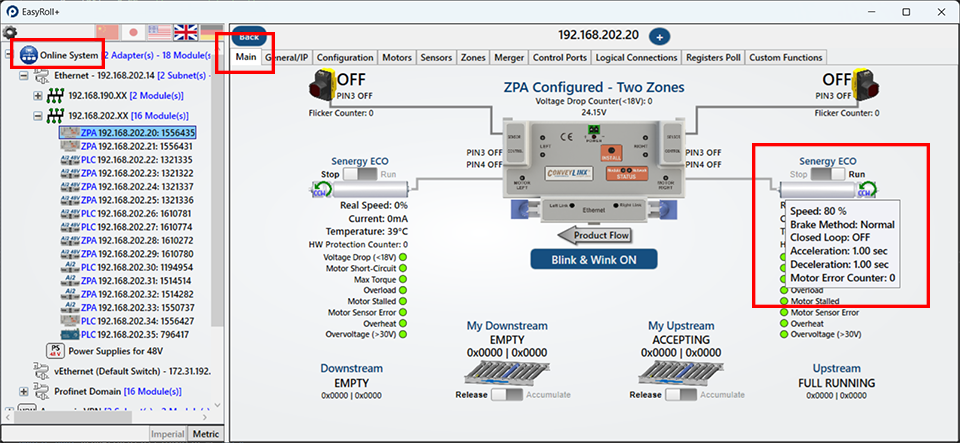

ConveyLinx-ERSC Family

*Any non-Senergy-Ai motor unit does not have the ability to provide the Part Number or Serial Number data

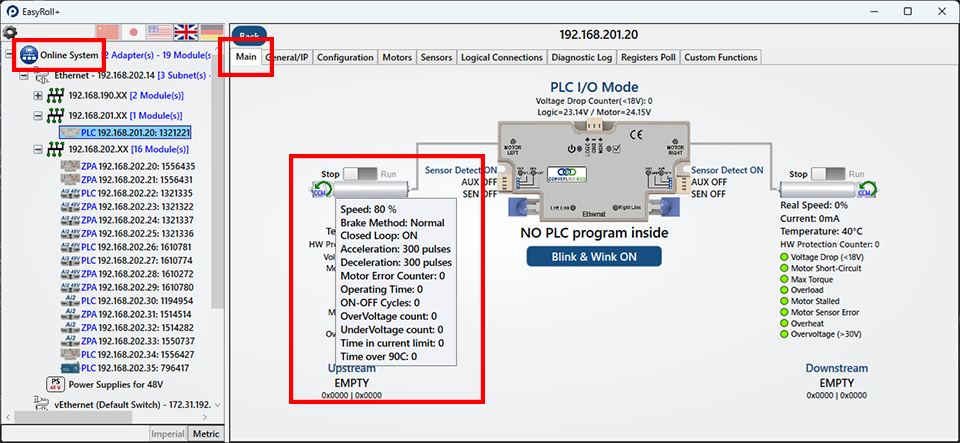

ConveyLinx-ECO

*Any non-Senergy-Ai motor unit does not have the ability to provide the Part Number or Serial Number data
