Module Configuration Screen Tabs / Merger /

Enabling ConveyMerge from EasyRoll+	ConveyLinx ERSC ✅	ConveyLinx-Ai 24V ✅	ConveyLinx-Ai 48V ✅
	ConveyLinx-ECO ✅	ZPA Mode ✅	PLC I/O Mode ❌

• Open EasyRoll or EasyRoll+
• Connect and navigate to the ConveyLinx module that will control the Merge Zone.
• For EasyRoll Press CTRL+SHIFT+M to open the ConveyMerge Configuration Screen
• For EasyRoll+ Select the Merger tab to open the Merger Configuration Screen

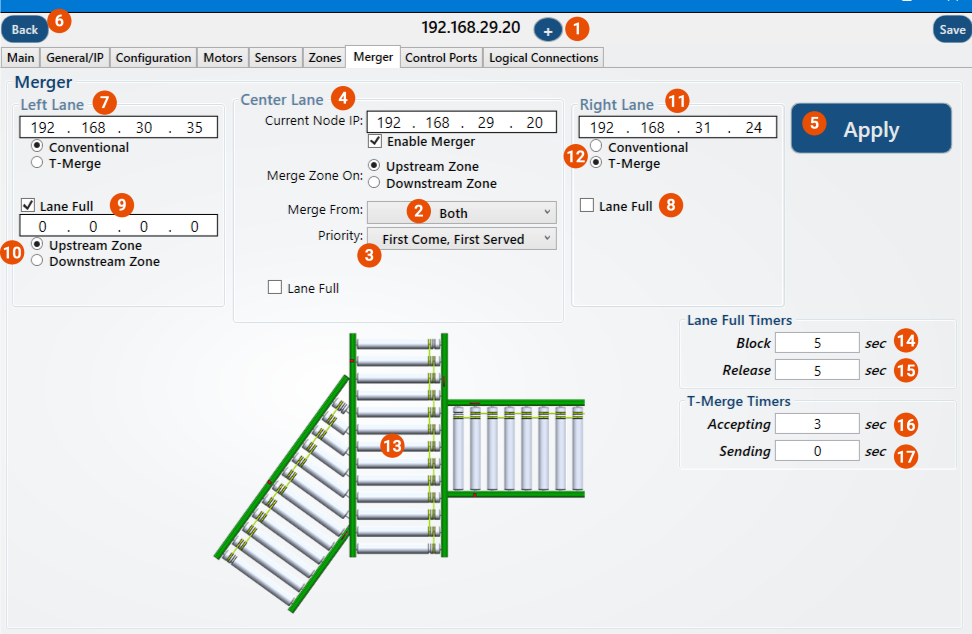

Item	Description
	Navigation Buttons for module selection
	Drop down selector for Merge Type – Left, Right, or Both
	Drop down for Merge Priority
	Display of IP Address for the ConveyLinx module selected that will contain the Merge Zone
	User button to click to apply the settings to the affected modules
	User button to cancel any changes made and close the screen
	Field to enter the IP Address of the Left Line’s most downstream ConveyLinx module
	Checkbox to enable Merge Line Full functions
	IP Address of the ConveyLinx module that contains the zone being defined as the Monitor Zone for the Merge Line Full function
	Radio buttons to select whether the upstream or downstream zone of the ConveyLinx module identified in Item 9 will be used as the Monitor Zone
	Field to enter the IP Address of the Right Line’s most downstream ConveyLinx module
	User checkbox to select T-Merge type
	Graphical representation of the merge. Please note this will update and change as settings and configuration is modified
	Merge Line Full Block Timer preset value
	Merge Line Full Clear Timer preset value
	T-Merge Accept Timer preset value
	T-Merge Send Timer preset value
