IOX Interface Module /
Hardware Controlled Mode
From EasyRoll+ you can place the ConveyLinx-Ai Family Module into Hardware Mode which disables all ZPA Mode and PLC I/O Mode functionality and allows the Left and Right side motors to be controlled independently with hardwired signals to their respective Left and Right Control Ports.
Control Port Pin Out for Hardware Controlled Mode
| Pin | Signal | Description |
|---|---|---|
| 1 | Vcc | Module 24VDC Supply |
| 2 | P2 Input | When P4 is energized, run motor opposite of default direction |
| 3 | GND | Module DC Common |
| 4 | P4 Input | Run motor in default direction |
Learn how to configure Hardware Controlled Mode in EasyRoll+

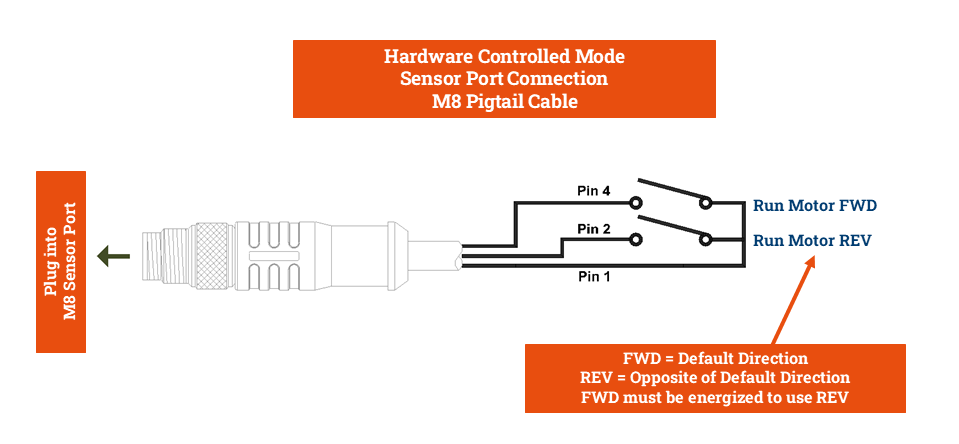

Wiring with Single M8 Pigtail Cable

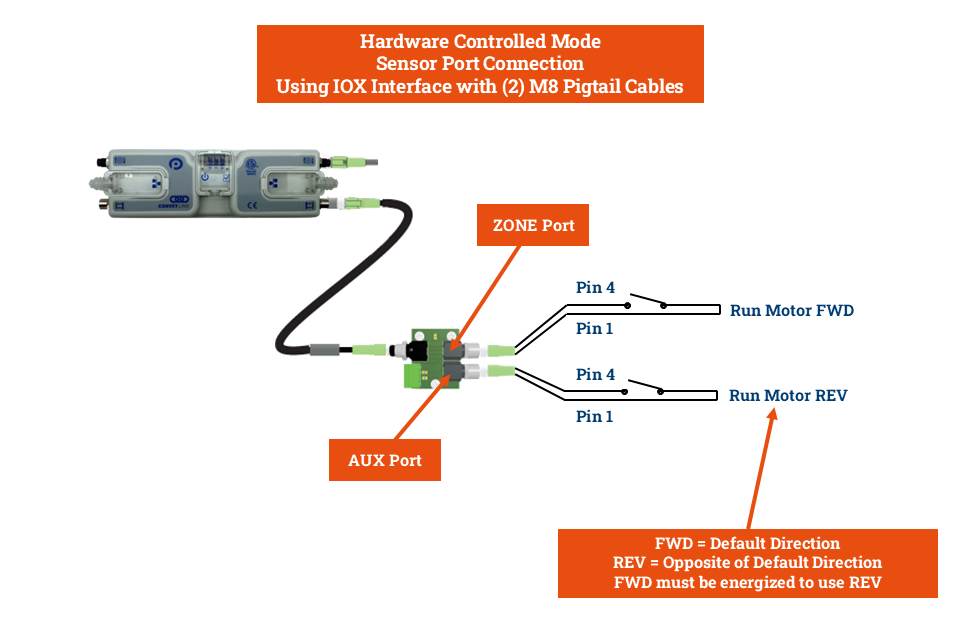

Wiring with 2 Identical M8 Cables and IOX Interface
