8.1.1.13. Thyssen CMC3

1. Required elements

  • Thyssen CMC3 cable
THY CMC3 Toolkit

2. Connection

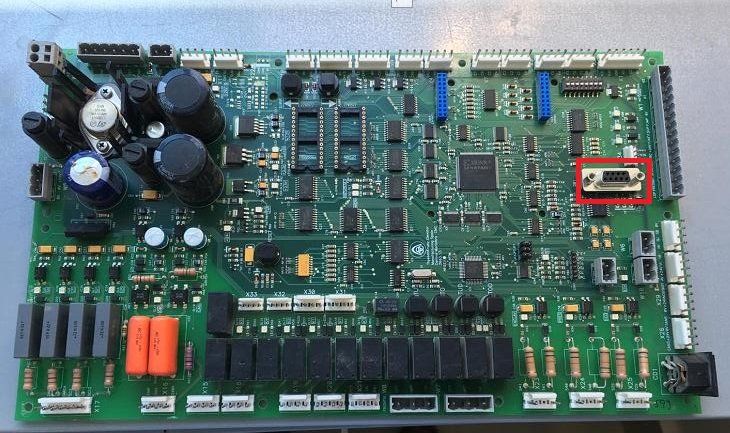

1. Locate the connector RS232.

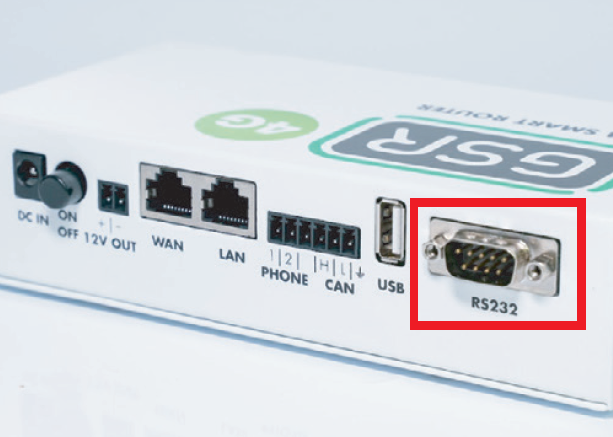

2. Connect the Thyssen CMC3 cable to connector RS232 and to GSR’s RS232 port.

3. Make the connection.
