Using External Storage

Organizations can have databases containing information, passwords, and other credentials. Typically, you cannot migrate existing data storage to a Keycloak deployment so Keycloak can federate existing external user databases. Keycloak supports LDAP and Active Directory, but you can also code extensions for any custom user database by using the Keycloak User Storage SPI.

When a user attempts to log in, Keycloak examines that user’s storage to find that user. If Keycloak does not find the user, Keycloak iterates over each User Storage provider for the realm until it finds a match. Data from the external data storage then maps into a standard user model the Keycloak runtime consumes. This user model then maps to OIDC token claims and SAML assertion attributes.

External user databases rarely have the data necessary to support all the features of Keycloak, so the User Storage Provider can opt to store items locally in Keycloak user data storage. Providers can import users locally and sync periodically with external data storage. This approach depends on the capabilities of the provider and the configuration of the provider. For example, your external user data storage may not support OTP. The OTP can be handled and stored by Keycloak, depending on the provider.

Adding a provider

To add a storage provider, perform the following procedure:

Procedure

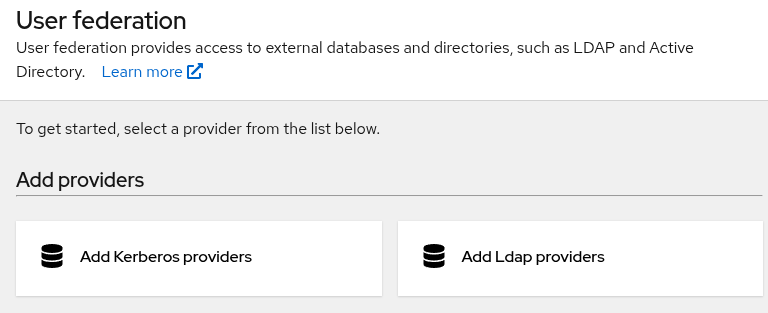

1. Click User Federation in the menu.


1. Choose to add a Kerberos or LDAP provider
   Keycloak brings you to that provider’s configuration page.

Dealing with provider failures

If a User Storage Provider fails, you may not be able to log in and view users in the Admin Console. Keycloak does not detect failures when using a Storage Provider to look up a user, so it cancels the invocation. If you have a Storage Provider with a high priority that fails during user lookup, the login or user query fails with an exception and will not fail over to the next configured provider.

Keycloak searches the local Keycloak user database first to resolve users before any LDAP or custom User Storage Provider. Consider creating an administrator account stored in the local Keycloak user database in case of problems connecting to your LDAP and back ends.

Each LDAP and custom User Storage Provider has an enable toggle on its Admin Console page. Disabling the User Storage Provider skips the provider when performing queries, so you can view and log in with user accounts in a different provider with lower priority. If your provider uses an import strategy and is disabled, imported users are still available for lookup in read-only mode.

When a Storage Provider lookup fails, Keycloak does not fail over because user databases often have duplicate usernames or duplicate emails between them. Duplicate usernames and emails can cause problems because the user loads from one external data store when the admin expects them to load from another data store.

Lightweight Directory Access Protocol (LDAP) and Active Directory

Keycloak includes an LDAP/AD provider. You can federate multiple different LDAP servers in one Keycloak realm and map LDAP user attributes into the Keycloak common user model.

By default, Keycloak maps the username, email, first name, and last name of the user account, but you can also configure additional mappings. Keycloak’s LDAP/AD provider supports password validation using LDAP/AD protocols and storage, edit, and synchronization modes.

Configuring federated LDAP storage

Procedure

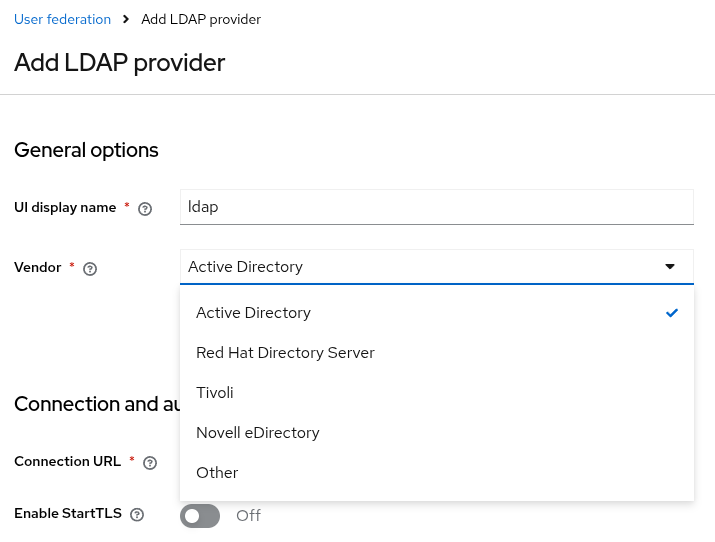

1. Click User Federation in the menu.


1. Click Add LDAP providers.
   Keycloak brings you to the LDAP configuration page.

Storage mode

Keycloak imports users from LDAP into the local Keycloak user database. This copy of the user database synchronizes on-demand or through a periodic background task. An exception exists for synchronizing passwords. Keycloak never imports passwords. Password validation always occurs on the LDAP server.

The advantage of synchronization is that all Keycloak features work efficiently because any required extra per-user data is stored locally. The disadvantage is that each time Keycloak queries a specific user for the first time, Keycloak performs a corresponding database insert. Also, when imported users are returned as part of a search operation, a corresponding LDAP search is performed for each one to check if the user still exists in LDAP and do some basic validation.

You can synchronize the import with your LDAP server. Import synchronization is unnecessary when LDAP mappers always read particular attributes from the LDAP rather than the database.

You can use LDAP with Keycloak without importing users into the Keycloak user database. The LDAP server backs up the common user model that the Keycloak runtime uses. If LDAP does not support data that a Keycloak feature requires, that feature will not work. The advantage of this approach is that you do not have the resource usage of importing and synchronizing copies of LDAP users into the Keycloak user database.

The Import Users switch on the LDAP configuration page controls this storage mode. To import users, toggle this switch to ON.

*If you disable Import Users, you cannot save user profile attributes into the Keycloak database. Also, you cannot save metadata except for user profile metadata mapped to the LDAP. This metadata can include role mappings, group mappings, and other metadata based on the LDAP mappers’ configuration. When you attempt to change the non-LDAP mapped user data, the user update is not possible. For example, you cannot disable the LDAP mapped user unless the user’s enabled flag maps to an LDAP attribute.

*When working with imported users, Keycloak performs a LDAP search when the user is queried to validate the user and decorate it so that the configured mappers work properly. This means that extra care must be taken when performing unfiltered user searches that may fetch a big number of users as a LDAP search will be issued for every imported user that is found, possibly affecting the performance in a negative way. Operations that fetch a single user (for example during login) are usually cached and should not be impacted by this extra LDAP search that is performed when the user is fetched for the first time.

Edit mode

Users and admins can modify user metadata, users through the Account Console, and administrators through the Admin Console. The Edit Mode configuration on the LDAP configuration page defines the user’s LDAP update privileges.

READ_ONLY
You cannot change the username, email, first name, last name, and other mapped attributes. Keycloak shows an error anytime a user attempts to update these fields. Password updates are not supported.

WRITABLE
You can change the username, email, first name, last name, and other mapped attributes and passwords and synchronize them automatically with the LDAP store.

UNSYNCED
Keycloak stores changes to the username, email, first name, last name, and passwords in Keycloak local storage, so the administrator must synchronize this data back to LDAP. In this mode, Keycloak deployments can update user metadata on read-only LDAP servers. This option also applies when importing users from LDAP into the local Keycloak user database.

*When Keycloak creates the LDAP provider, Keycloak also creates a set of initial LDAP mappers. Keycloak configures these mappers based on a combination of the Vendor, Edit Mode, and Import Users switches. For example, when edit mode is UNSYNCED, Keycloak configures the mappers to read a particular user attribute from the database and not from the LDAP server. However, if you later change the edit mode, the mapper’s configuration does not change because it is impossible to detect if the configuration changes changed in UNSYNCED mode. Decide the Edit Mode when creating the LDAP provider. This note applies to Import Users switch also.

Other configuration options

Console Display Name
The name of the provider to display in the admin console.

Priority
The priority of the provider when looking up users or adding a user.

Sync Registrations
Toggle this switch to ON if you want new users created by Keycloak added to LDAP.

Allow Kerberos authentication
Enable Kerberos/SPNEGO authentication in the realm with user data provisioned from LDAP. For more information, see the Kerberos section.

Remove invalid users during searches
Remove users from the local database if they are not available from the user storage when executing searches. If this is true, users no longer available from their corresponding user storage will be deleted from the local database whenever trying to look up users. If false, then users previously imported from the user storage will be kept in the local database, as read-only and disabled, even if that user is no longer available from the user storage. For example, user was deleted directly from LDAP or the Users DN is invalid. Note that this behavior will only happen when the user is not yet cached.

Relative User Creation DN
Relative DN from the Users DN where new users will be created. This allows users to be created in a sub-DN of the parent Users DN when using a subtree search scope. For example, if the Users DN is set to ou=people,dc=myorg,dc=com and the Relative User Creation DN is set to ou=engineering, users will be fetched from the Users DN and all sub-DNs, but new users will be stored in ou=engineering,ou=people,dc=myorg,dc=com. In other words, Keycloak concatenates the Relative User Creation DN with the Users DN (a comma is added automatically when concatenating the DNs) and uses this resulting DN to store users

A similar property is also available in the group and role mappers, allowing groups and roles to be added to a sub-DN of the base DN that is used to search for the groups/roles.

Other options
Hover the mouse pointer over the tooltips in the Admin Console to see more details about these options.

Connecting to LDAP over SSL

When you configure a secure connection URL to your LDAP store (for example,ldaps://myhost.com:636), Keycloak uses SSL to communicate with the LDAP server. Configure a truststore on the Keycloak server side so that Keycloak can trust the SSL connection to LDAP – see Configuring a Truststore guide.

The Use Truststore SPI configuration property is deprecated. It should normally be left as Always.

Synchronizing LDAP users to Keycloak

If you set the Import Users option, the LDAP Provider handles importing LDAP users into the Keycloak local database. The first time a user logs in or is returned as part of a user query (e.g. using the search field in the admin console), the LDAP provider imports the LDAP user into the Keycloak database. During authentication, the LDAP password is validated.

By default, Keycloak does not support the username and email attributes with case-sensitive values when storing users to the local database. The value for these attributes will be stored in lower-case in the local database. However, if the Import Users option is disabled, Keycloak will not lower-case the username and email attributes when querying users from LDAP. This behavior allows you to use case-sensitive usernames and emails when Import Users is disabled. Note that this behavior applies only to username and email attributes. Other attributes remain case-sensitive.

It is recommended to not use case-sensitive usernames and emails when using LDAP with Keycloak, as some features in Keycloak may not work correctly with case-sensitive usernames and emails.

If you want to sync all LDAP users into the Keycloak database, configure and enable the Sync Settings on the LDAP provider configuration page.

Two types of synchronization exist:

Periodic Full sync
This type synchronizes all LDAP users into the Keycloak database. The LDAP users already in Keycloak, but different in LDAP, directly update in the Keycloak database.

Periodic Changed users sync
When synchronizing, Keycloak creates or updates users created or updated after the last sync only.

The best way to synchronize is to click Synchronize all users when you first create the LDAP provider, then set up periodic synchronization of changed users.

LDAP mappers

LDAP mappers are listeners triggered by the LDAP Provider. They provide another extension point to LDAP integration. LDAP mappers are triggered when:

• Users log in by using LDAP.
• Users initially register.
• The Admin Console queries a user.

When you create an LDAP Federation provider, Keycloak automatically provides a set of mappers for this provider. This set is changeable by users, who can also develop mappers or update/delete existing ones.

User Attribute Mapper
This mapper specifies which LDAP attribute maps to the attribute of the Keycloak user. For example, you can configure the mail LDAP attribute to the email attribute in the Keycloak database. For this mapper implementation, a one-to-one mapping always exists.

FullName Mapper
This mapper specifies the full name of the user. Keycloak saves the name in an LDAP attribute (usually cn) and maps the name to the firstName and lastname attributes in the Keycloak database. Having cn to contain the full name of the user is common for LDAP deployments.

*When you register new users in Keycloak and Sync Registrations is ON for the LDAP provider, the fullName mapper permits falling back to the username. This fallback is useful when using Microsoft Active Directory (MSAD). The common setup for MSAD is to configure the cn LDAP attribute as fullName and, at the same time, use the cn LDAP attribute as the RDN LDAP Attribute in the LDAP provider configuration. With this setup, Keycloak falls back to the username. For example, if you create Keycloak user “john123” and leave firstName and lastName empty, then the fullname mapper saves “john123” as the value of the cn in LDAP. When you enter “John Doe” for firstName and lastName later, the fullname mapper updates LDAP cn to the “John Doe” value as falling back to the username is unnecessary.

Hardcoded Attribute Mapper
This mapper adds a hardcoded attribute value to each Keycloak user linked with LDAP. This mapper can also force values for the enabled or emailVerified user properties.

Role Mapper
This mapper configures role mappings from LDAP into Keycloak role mappings. A single role mapper can map LDAP roles (usually groups from a particular branch of the LDAP tree) into roles corresponding to a specified client’s realm roles or client roles. You can configure more Role mappers for the same LDAP provider. For example, you can specify that role mappings from groups under ou=main,dc=example,dc=org map to realm role mappings, and role mappings from groups under ou=finance,dc=example,dc=org map to client role mappings of client finance.

Hardcoded Role Mapper
This mapper grants a specified Keycloak role to each Keycloak user from the LDAP provider.

Group Mapper
This mapper maps LDAP groups from a branch of an LDAP tree into groups within Keycloak. This mapper also propagates user-group mappings from LDAP into user-group mappings in Keycloak.

MSAD User Account Mapper
This mapper is specific to Microsoft Active Directory (MSAD). It can integrate the MSAD user account state into the Keycloak account state, such as enabled account or expired password. This mapper uses the userAccountControl, and pwdLastSet LDAP attributes, specific to MSAD and are not the LDAP standard. For example, if the value of pwdLastSet is 0, the Keycloak user must update their password. The result is an UPDATE_PASSWORD required action added to the user. If the value of userAccountControl is 514 (disabled account), the Keycloak user is disabled.

Certificate Mapper
This mapper maps X.509 certificates. Keycloak uses it in conjunction with X.509 authentication and Full certificate in PEM format as an identity source. This mapper behaves similarly to the User Attribute Mapper, but Keycloak can filter for an LDAP attribute storing a PEM or DER format certificate. Enable Always Read Value From LDAP with this mapper.

User Attribute mappers that map basic Keycloak user attributes, such as username, firstname, lastname, and email, to corresponding LDAP attributes. You can extend these and provide your own additional attribute mappings. The Admin Console provides tooltips to help with configuring the corresponding mappers.

Password hashing

When Keycloak updates a password, Keycloak sends the password in plain-text format. This action is different from updating the password in the built-in Keycloak database, where Keycloak hashes and salts the password before sending it to the database. For LDAP, Keycloak relies on the LDAP server to hash and salt the password.

By default, LDAP servers such as MSAD, RHDS, or FreeIPA hash and salt passwords. Other LDAP servers such as OpenLDAP store the passwords in plain-text unless you use the LDAPv3 Password Modify Extended Operation as described in RFC 3062. Enable the LDAPv3 Password Modify Extended Operation in the LDAP configuration page. See the documentation of your LDAP server for more details. Configure ApacheDS to hash and salt passwords automatically by enabling the passwordHashing interceptor.

!Always verify that user passwords are properly hashed and not stored as plaintext by inspecting a changed directory entry using ldapsearch and base64 decode the userPassword attribute value.

Configuring the connection pool

For more efficiency when managing LDAP connections and to improve performance when handling multiple connections, you can enable connection pooling. By doing that, when a connection is closed, it will be returned to the pool for future use therefore reducing the cost of creating new connections all the time.

The LDAP connection pool configuration is configured using the following system properties:

Name	Description
com.sun.jndi.ldap.connect.pool.authentication	A list of space-separated authentication types of connections that may be pooled. Valid types are “none”, “simple”, and “DIGEST-MD5”
com.sun.jndi.ldap.connect.pool.initsize	The string representation of an integer that represents the number of connections per connection identity to create when initially creating a connection for the identity
com.sun.jndi.ldap.connect.pool.maxsize	The string representation of an integer that represents the maximum number of connections per connection identity that can be maintained concurrently. Note setting this value too low may cause contention in obtaining LDAP connections. See also com.sun.jndi.ldap.connect.timeout.
com.sun.jndi.ldap.connect.pool.prefsize	The string representation of an integer that represents the preferred number of connections per connection identity that should be maintained concurrently
com.sun.jndi.ldap.connect.pool.timeout	The string representation of an integer that represents the number of milliseconds that an idle connection may remain in the pool without being closed and removed from the pool
com.sun.jndi.ldap.connect.pool.protocol	A list of space-separated protocol types of connections that may be pooled. Valid types are “plain” and “ssl”
com.sun.jndi.ldap.connect.pool.debug	A string that indicates the level of debug output to produce. Valid values are “fine” (trace connection creation and removal) and “all” (all debugging information)
com.sun.jndi.ldap.connect.timeout	The string representation of an integer that represents how long in milliseconds obtaining a connection should take. This is also applicable to wait times due to connection pool contention. Effectively defaults to 5000.

By default, connection pooling is enabled for both plain and ssl protocols.

For more details, see the Java LDAP Connection Pooling Configuration documentation.

To set any of these properties, you can set the JAVA_OPTS_APPEND environment variable:

export JAVA_OPTS_APPEND=-Dcom.sun.jndi.ldap.connect.pool.initsize=10 -
Dcom.sun.jndi.ldap.connect.pool.maxsize=50

Troubleshooting

It is useful to increase the logging level to TRACE for the category org.keycloak.storage.ldap. With this setting, many logging messages are sent to the server log in the TRACE level, including the logging for all queries to the LDAP server and the parameters, which were used to send the queries. When you are creating any LDAP question on user forum or JIRA, consider attaching the server log with enabled TRACE logging. If it is too big, the good alternative is to include just the snippet from server log with the messages, which were added to the log during the operation, which causes the issues to you.

• When you create an LDAP provider, a message appears in the server log in the INFO level starting with:

Creating new LDAP Store for the LDAP storage provider: ...

It shows the configuration of your LDAP provider. Before you are asking the questions or reporting bugs, it will be nice to include this message to show your LDAP configuration. Eventually feel free to replace some config changes, which you do not want to include, with some placeholder values. One example is bindDn=some-placeholder . For connectionUrl, feel free to replace it as well, but it is generally useful to include at least the protocol, which was used (ldap vs ldaps)`. Similarly it can be useful to include the details for configuration of your LDAP mappers, which are displayed with the message like this at the DEBUG level:

Mapper for provider: XXX, Mapper name: YYY, Provider: ZZZ ...

Note those messages are displayed just with the enabled DEBUG logging.

• For tracking the performance or connection pooling issues, consider setting the value of property com.sun.jndi.ldap.connect.pool.debug to all. This change adds many additional messages to the server log with the included logging for the LDAP connection pooling. As a result, you can track the issues related to connection pooling or performance. For more details, see Configuring the connection pool.

*After changing the configuration of connection pooling, you may need to restart the Keycloak server to enforce re-initialization of the LDAP provider connection.

If no more messages appear for connection pooling even after server restart, it can indicate that connection pooling does not work with your LDAP server.

• For the case of reporting LDAP issue, you may consider to attach some part of your LDAP tree with the target data, which causes issues in your environment. For example if login of some user takes lot of time, you can consider attach his LDAP entry showing count of member attributes of various “group” entries. In this case, it might be useful to add if those group entries are mapped to some Group LDAP mapper (or Role LDAP Mapper) in Keycloak and so on.

SSSD and FreeIPA Identity Management integration

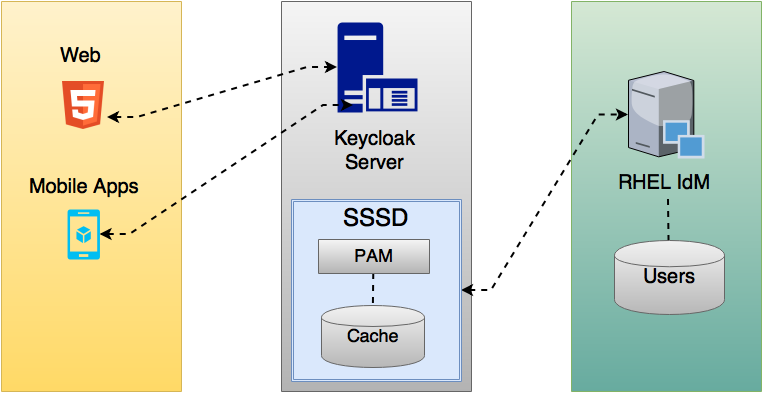

Keycloak includes the System Security Services Daemon (SSSD) plugin. SSSD is part of the Fedora and Red Hat Enterprise Linux (RHEL), and it provides access to multiple identities and authentication providers. SSSD also provides benefits such as failover and offline support. For more information, see the Red Hat Enterprise Linux Identity Management documentation.

SSSD integrates with the FreeIPA identity management (IdM) server, providing authentication and access control. With this integration, Keycloak can authenticate against privileged access management (PAM) services and retrieve user data from SSSD. For more information about using Red Hat Identity Management in Linux environments, see the Red Hat Enterprise Linux Identity Management documentation.

Keycloak and SSSD communicate through read-only D-Bus interfaces. For this reason, the way to provision and update users is to use the FreeIPA/IdM administration interface. By default, the interface imports the username, email, first name, and last name.

*Keycloak registers groups and roles automatically but does not synchronize them. The groups are imported from SSSD the first time the user is accessed and then they are managed entirely inside Keycloak. Any changes made by the administrator in Keycloak do not synchronize with SSSD or vice-versa.

FreeIPA/IdM server

The FreeIPA Container image is available at Quay.io. To set up the FreeIPA server, see the FreeIPA documentation.

Procedure

1. Run your FreeIPA server using this command:


docker run --name freeipa-server-container -it \
 -h server.freeipa.local -e PASSWORD=YOUR_PASSWORD \
 -v /sys/fs/cgroup:/sys/fs/cgroup:ro \
 -v /var/lib/ipa-data:/data:Z freeipa/freeipa-server

The parameter -h with server.freeipa.local represents the FreeIPA/IdM server hostname. Change YOUR_PASSWORD to a password of your own.

2. After the container starts, change the /etc/hosts file to include:

x.x.x.x     server.freeipa.local

If you do not make this change, you must set up a DNS server.

3. Use the following command to enroll your Linux server in the IPA domain so that the SSSD federation provider starts and runs on Keycloak:

ipa-client-install --mkhomedir -p admin -w password

4. Run the following command on the client to verify the installation is working:

kinit admin

5. Enter your password.
6. Add users to the IPA server using this command:

$ ipa user-add <username> --first=<first name> --last=<surname> --email=<email address> --phone=<telephoneNumber> --street=<street> --city=<city> --state=<state> --postalcode=<postal code> --password

7. Force set the user’s password using kinit.

kinit <username>

8. Enter the following to restore normal IPA operation:

kdestroy -A
kinit admin

SSSD and D-Bus

The federation provider obtains the data from SSSD using D-BUS. It authenticates the data using PAM.

Procedure

1. Install the sssd-dbus RPM.


$ sudo yum install sssd-dbus

2. Run the following provisioning script:

$ bin/federation-sssd-setup.sh

The script can also be used as a guide to configure SSSD and PAM for Keycloak. It makes the following changes to /etc/sssd/sssd.conf:

[domain/your-hostname.local]
  ...
  ldap_user_extra_attrs = mail:mail, sn:sn, givenname:givenname, telephoneNumber:telephoneNumber
  ...
  [sssd]
  services = nss, sudo, pam, ssh, ifp
  ...
  [ifp]
  allowed_uids = root, yourOSUsername
  user_attributes = +mail, +telephoneNumber, +givenname, +sn

The ifp service is added to SSSD and configured to allow the OS user to interrogate the IPA server through this interface.

The script also creates a new PAM service /etc/pam.d/keycloak to authenticate users via SSSD:

auth    required   pam_sss.so
account required   pam_sss.so

3. Run dbus-send to ensure the setup is successful.

dbus-send --print-reply --system --dest=org.freedesktop.sssd.infopipe /org/freedesktop/sssd/infopipe org.freedesktop.sssd.infopipe.GetUserAttr string:<username> array:string:mail,givenname,sn,telephoneNumber
dbus-send --print-reply --system --dest=org.freedesktop.sssd.infopipe /org/freedesktop/sssd/infopipe org.freedesktop.sssd.infopipe.GetUserGroups string:<username>

If the setup is successful, each command displays the user’s attributes and groups respectively. If there is a timeout or an error, the federation provider running on Keycloak cannot retrieve any data. This error usually happens because the server is not enrolled in the FreeIPA IdM server, or does not have permission to access the SSSD service.

If you do not have permission to access the SSSD service, ensure that the user running the Keycloak server is in the /etc/sssd/sssd.conf file in the following section:

[ifp]
allowed_uids = root, yourOSUsername

And the ipaapi system user is created inside the host. This user is necessary for the ifp service. Check the user is created in the system.

grep ipaapi /etc/passwd
ipaapi:x:992:988:IPA Framework User:/:/sbin/nologin

Enabling the SSSD federation provider

Keycloak uses DBus-Java project to communicate at a low level with D-Bus and JNA to authenticate via Operating System Pluggable Authentication Modules (PAM).

Although now Keycloak contains all the needed libraries to run the SSSD provider, JDK version 21 is needed. Therefore the SSSD provider will only be displayed when the host configuration is correct and JDK 21 is used to run Keycloak.

Configuring a federated SSSD store

After the installation, configure a federated SSSD store.

Procedure

1. Click User Federation in the menu.
2. If everything is setup successfully the Add Sssd providers button will be displayed in the page. Click on it.
3. Assign a name to the new provider.
4. Click Save.


You can now authenticate against Keycloak using a FreeIPA/IdM user and credentials.

Custom providers

Keycloak does have a Service Provider Interface (SPI) for User Storage Federation to develop custom providers. You can find documentation on developing customer providers in the Server Developer Guide.
