This topic provides a comprehensive guide to the various tags that can be used when creating your object book templates. Below is an preview of the different tag sections you can incorporate:
- Roles & Responsibilities
- Documents
- Risks
- Controls
- Rules
- Objectives, KPI, KRI, and KRI
- Master Data
- Descriptions
- Versions
- Approval

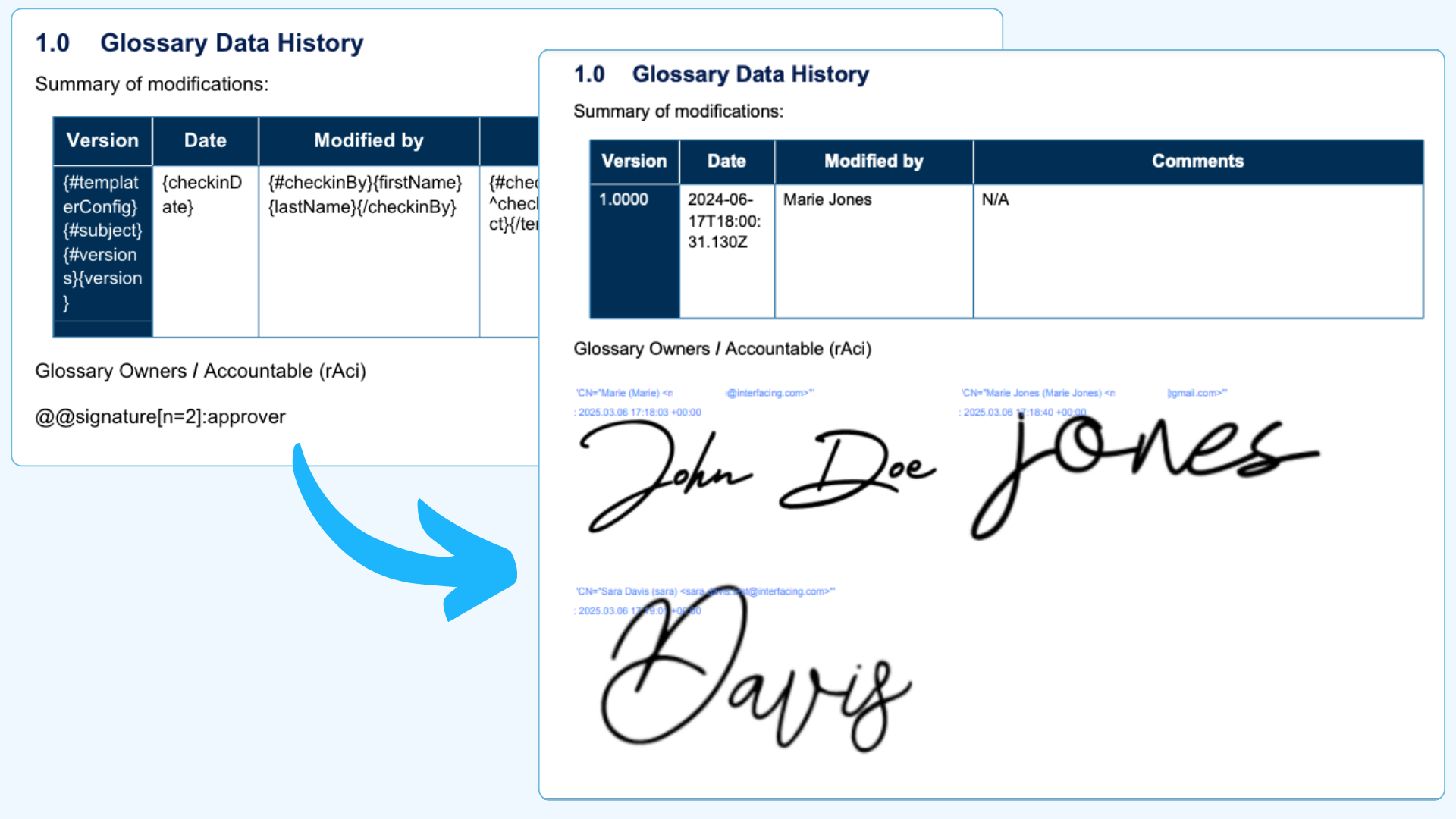

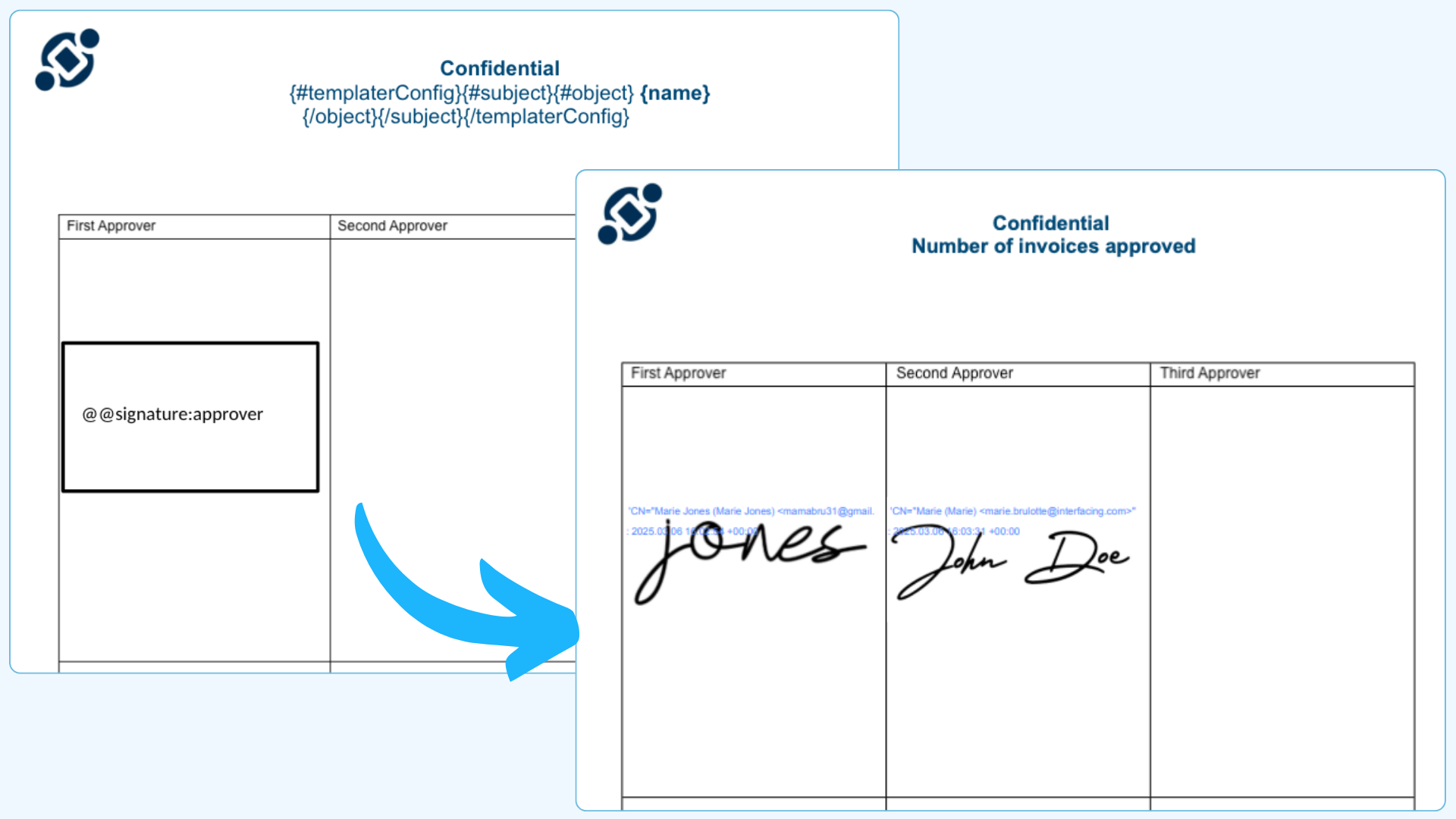

- Approval e-signatures
- Properties
- Impact
- Improvement Requests
High Level Tags
Note that all examples on this page should be written inside a loop/section for objects or templaterConfig/subject. This ensures proper iteration through each object within the system.
For example, if you want to access data within the “object” object, use the following format:
- Example for Object Loop:
{#objects}{#object} {name} {/object}{/objects} - Example for TemplaterConfig/Subject Loop:
{#templaterConfig}{#subject}{#object} {name} {/object}{/subject}{/templaterConfig}
This same concept applies to other key elements like version, properties, etc. The tags should always be written inside their respective loops (e.g., for objects or templaterConfig/subject).
Object Tags
The “object” object contains essential information and associations, which vary based on the object type. For example, a “process” object might contain specific attributes such as defaultView. These tags allow you to pull relevant data related to each EPC object.
Tag Syntax
To retrieve data about an object, the following section syntax is required:
{#object} {name} {/object}
Object Tags
| Tag | Description |
|---|---|
| {nodeType} | The type of node |
| {name} | The name of the object |
| {version} | The version of the object |
| {creationDate} | The date and time the object was created |
| {modificationDate} | The date and time the object was last modified |
| {nodeStatus} | Status of the object (published vs in progress) |
| {checkinDate} | The date and time when the object was published |
| {checkinComment} | The comment associated with the publication for the object |
| {referenceNumber} | The object’s unique identifier |
| {#parent}{name}{/parent} | Name of the object’s parent |
| {#checkinBy}{username}{/checkinBy} | Username of the user who last published the object |
| {#checkinBy}{firstName}{/checkinBy} | First name of the user who last published the object |
| {#checkinBy}{middleName}{/checkinBy} | Middle name of the user who last published the object |
| {#checkinBy}{lastName}{/checkinBy} | Last name of the user who last published the object |
| {#checkinBy}{name}{/checkinBy} | Full name & username of the user who last published the object |
| {#checkinBy}{email}{/checkinBy} | Email of the user who last published the object |
| {#checkinBy}{phone}{/checkinBy} | Phone Number of the user who last published the object |
| {checkinComment} | Comment made by the publisher of the object (current version) |
Associated Roles & Responsibilities Tags
The tags in this section are common across roles, organizational units, resources, and assets. All tags should be included inside the appropriate loop (roles, orgUnits, resources, or assets), which must be written inside the object section.
Example:
{#object}{#roles}{#target} {name} {/target}{/roles}{/object}
Role & Responsibility Tags
| Tag | Description |
|---|---|
| {#target}{name}{/target} | Name of the org unit, role, asset or resource |
| {#target}{version}{/target} | Version of the org unit, role, asset or resource |
| {#target}{nodeType}{/target} | The type of the object (role, resource, asset, org unit) |
| {#target}{creationDate}{/target} | Date of creation of the org unit, role, asset or resource |
| {#target}{modificationDate}{/target} | Last modification date of the org unit, role, asset or resource |
| {#target}{nodeSubTypeName}{/target} | The type of org unit, role, asset or resource |
| {#target}{nodeStatus}{/target} | The status of the org unit, role, asset or resource (in progress vs published) |
| {#target}{checkinDate}{/target} | The date of publication of the org unit, role, asset or resource |
| {#target}{#checkinBy}{username}{/checkinBy}{/target} | The username of the user who last published the object |
| {#target}{#checkinBy}{firstName}{/checkinBy}{/target} | The first name of the user who last published the object |
| {#target}{#checkinBy}{middleName}{/checkinBy}{/target} | The middle name of the user who last published the object |
| {#target}{#checkinBy}{lastName}{/checkinBy}{/target} | The last name of the user who last published the object |
| {#target}{#checkinBy}{name}{/checkinBy}{/target} | The full name and username of the user who last published the object |
| {#target}{#checkinBy}{email}{/checkinBy}{/target} | The email of the user who last published the object |
| {#target}{#checkinBy}{phone}{/checkinBy}{/target} | The phone number of the user who last published the object |
| {#target}{reviewFrequency}{/target} | The set review frequency of the org unit, role, asset or resource |
| {#target}{nextReviewDate}{/target} | The next review date of the org unit, role, asset or resource |
| {#target}{#categories}{name}{/categories}{/target} | The categories in which the object is grouped in |
| {responsible} | Boolean value for Responsible (RASCI-VS) |
| {accountable} | Boolean value for Accountable (RASCI-VS) |
| {support} | Boolean value for Support (RASCI-VS) |
| {consulted} | Boolean value for Consulted (RASCI-VS) |
| {informed} | Boolean value for Informed (RASCI-VS) |
| {verifier} | Boolean value for Verifier (RASCI-VS) |
| {signatory} | Boolean value for Signatory (RASCI-VS) |
Associated Documents Tags
Tags to display information about documents associated with the object must be included within the document loop inside the object section
Example:
{#object}{#documents}{#target} {name} {/target}{/documents}{/object}
Document Tags
| Tag | Description |
|---|---|
| {#target}{nodeType}{/target} | The type of object (document) |
| {#target}{name}{/target} | The name of the document |
| {#target}{version}{/target} | The version of the document |
| {#target}{creationDate}{/target} | The creation date of the document |
| {#target}{modificationDate}{/target} | The last modification date of the document |
| {#target}{nodeSubTypeName}{/target} | The type of document |
| {#target}{nodeStatus}{/target} | The status of the document (in progress vs published) |
| {#target}{referenceNumber}{/target} | The document’s unique identifier |
| {#target}{checkinDate}{/target} | The date the document was published |
| {#target}{#checkinBy}{username}{/checkinBy}{/target} | The username of the user who last published the document |
| {#target}{#checkinBy}{firstName}{/checkinBy}{/target} | The first name of the user who last published the document |
| {#target}{#checkinBy}{middleName}{/checkinBy}{/target} | The middle name of the user who last published the document |
| {#target}{#checkinBy}{lastName}{/checkinBy}{/target} | The last name of the user who last published the document |
| {#target}{#checkinBy}{name}{/checkinBy}{/target} | The full name and username of the user who last published the document |
| {#target}{#checkinBy}{email}{/checkinBy}{/target} | The email of the user who last published the document |
| {#target}{#checkinBy}{phone}{/checkinBy}{/target} | The phone number of the user who last published the document |
| {#target}{reviewFrequency}{/target} | The set review frequency of the document |
| {#target}{nextReviewDate}{/target} | The next review date of the document |
| {#target}{#categories}{name}{/categories}{/target} | The category under which the document is grouped under |
| {#target}{documentType}{/target} | The type of document (URL, file, template, file link) |
| {#target}{url}{{/target} | The URL of the document (only for URL and file link types) |
| {#target}{#fileInfo}{name}{/fileInfo}{/target} | The name of the uploaded file (only for file uploads and templates) |
| {#target}{#fileInfo}{extension}{/fileInfo}{/target} | The extension of the file (only for file uploads and templates) |
Associated Risks Tags
The following tags are used to display information about risks associated with the object. These tags should be placed inside a loop for risks within the object section
Example:
{#object}{#risks}{#target} {name} {/target}{/risks}{/object}
Risk Tags
| Tag | Description |
|---|---|
| {#target}{name}{/target} | Name(s) of the risk(s) associated to the process |
| {#target}{nodeType}{/target} | The type of the object (risk) |
| {#target}{version}{/target} | The version of the risk |
| {#target}{creationDate}{/target} | The date of creation of the risk |
| {#target}{modificationDate}{/target} | The last modification date of the risk |
| {#target}{nodeSubType}{/target} | The type assigned to the risk (user defined) |
| {#target}{nodeStatus}{/target} | The status of the risk (in progress vs published) |
| {#target}{referenceNumber}{/target} | The risk’s unique identifier |
| {#target}{checkinDate}{/target} | The risk’s date of publication |
| {#target}{#checkinBy}{username}{/checkinBy}{/target} | Username of the user who last published the risk |
| {#target}{#checkinBy}{firstName}{/checkinBy}{/target} | First name of the user who last published the risk |
| {#target}{#checkinBy}{middleName}{/checkinBy}{/target} | Middle name of the user who last published the risk |
| {#target}{#checkinBy}{lastName}{/checkinBy}{/target} | Last name of the user who last published the risk |
| {#target}{#checkinBy}{name}{/checkinBy}{/target} | Full name & username of the user who last published the risk* |
| {#target}{#checkinBy}{email}{/checkinBy}{/target} | Email of the user who last published the risk |
| {#target}{#checkinBy}{phone}{/checkinBy}{/target} | Phone Number of the user who last published the risk |
| {#target}{grossImpact}{/target} | Gross impact of the risk |
| {#target}{grossLikelihood}{/target} | Gross likelihood of the risk |
| {#target}{grossDetectability}{/target} | Gross detectability of the risk |
| {#target}{residualImpact}{/target} | Residual impact of the risk |
| {#target}{residualLikelihood}{/target} | Residual likelihood of the risk |
| {#target}{residualDetectability}{/target} | Residual detectability of the risk |
| {#target}{overrideRollup}{/target} | Boolean value for whether the risk values are overriden |
| {#target}{analysisJustification}{/target} | Analysis justification for the risk |
| {#target}{#causalities}{cause}{/causalities}{/target} | Cause of the risk (Cause & Effect) |
| {#target}{#causalities}{effect}{/causalities}{/target} | Effect of the risk (Cause & Effect) |
| {residualScore} | The residual score after controls have been factored in |
| {residualPriority} | The level (numerical) of residual priority |
| {residualPriorityText} | The level (textual) of residual priority (medium, high, etc) |
| {residualPercentage} | The residual percentage of the risk |
| {reviewFrequency} | The set review frequency for the risk |
| {nextReviewDate} | The next review date for the risk |
| {#processControls}{controlName}{/processControls} | The name of the control associated with the risk |
| {#processControls}{impact}{/processControls} | The impact of the control on the risk |
| {#processControls}{likelihood}{/processControls} | The likelihood of the control on the risk |
| {#processControls}{detectability}{/processControls} | The detectability of the control on the risk |
| {#processControls}{priority}{/processControls} | The priority of the control on the risk |
| {#processControls}{score}{/processControls} | The score of the control on the risk |
| {#processControls}{percentage}{/processControls} | The percentage of gross risk for the control |
| {#processControls}{priorityText}{/processControls} | The priority level (textual) of the control (medium, high, etc) |
| {#processControls}{excluded}{/processControls} | Whether the control is excluded from the risk or not |
Associated Controls Tags
These tags are for controls associated with the process. They must be included in a loop for controls inside the object section:
Example:
{#object}{#controls}{#target} {name} {/target}{/controls}{/object}
Control Tags
| Tag | Description |
|---|---|
| {#target}{name}{/target} | The name of the control |
| {#target}{nodeType}{/target} | The type of the object (control) |
| {#target}{version}{/target} | The version of the control |
| {#target}{creationDate}{/target} | The creation date of the control |
| {#target}{modificationDate}{/target} | The last modification of the control |
| {#target}{nodeSubTypeName}{/target} | The assigned type of the control |
| {#target}{nodeStatus}{/target} | The status of the control (in progress vs published) |
| {#target}{referenceNumber}{/target} | The control’s unique identifier |
| {#target}{checkinDate}{/target} | The date of the control’s last publication |
| {#target}{#checkinBy}{username}{/checkinBy}{/target} | The username of the user who last published the control |
| {#target}{#checkinBy}{firstName}{/checkinBy}{/target} | The first name of the user who last published the control |
| {#target}{#checkinBy}{middleName}{/checkinBy}{/target} | The middle name of the user who last published the control |
| {#target}{#checkinBy}{lastName}{/checkinBy}{/target} | The last name of the user who last published the control |
| {#target}{#checkinBy}{name}{/checkinBy}{/target} | The full name and username of the user who last published the control |
| {#target}{#checkinBy}{email}{/checkinBy}{/target} | The email of he user who last published the control |
| {#target}{#checkinBy}{phone}{/checkinBy}{/target} | The phone number of the user who last published the control |
| {#target}{checkinComment}{/target} | The comment attached to the last publication action |
| {#target}{reviewFrequency}{/target} | The set review frequency for the control |
| {#target}{nextReviewDate}{/target} | The next review date for the control |
| {#target}{#categories}{name}{/categories}{/target} | The name of category(ies) under which the control is grouped under |
| {#target}{keyControl}{/target} | Boolean value for whether the control is a key control |
| {#target}{frequency}{/target} | The frequency classification of the control |
| {#target}{effectStyle}{/target} | Preventive or detective control |
| {#target}{operationType}{/target} | Manual or computer control |
| {#target}{itControl}{/target} | Boolean value for whether the control is an IT control or not |
| {#target}{itControlType}{/target} | The type of IT control |
| {#target}{itAssertionCompleteness}{/target} | IT control assertion – boolean value for completeness |
| {#target}{itAssertionAccuracy}{/target} | IT control assertion – boolean value for accuracy |
| {#target}{itAssertionValidity}{/target} | IT control assertion – boolean value for validity |
| {#target}{itAssertionAuthorization}{/target} | IT control assertion – boolean value for authorization |
| {#target}{internalEnvironment}{/target} | COSO component – boolean value for internal environment |
| {#target}{objectiveSetting}{/target} | COSO component – boolean value for objective setting |
| {#target}{eventIdentification}{/target} | COSO component – boolean value for event identification |
| {#target}{riskAssessment}{/target} | COSO component – boolean value for risk assessment |
| {#target}{riskResponse}{/target} | COSO component – boolean value for risk response |
| {#target}{informationCommunication}{/target} | COSO component – boolean value for information & communication |
| {#target}{monitoring}{/target} | COSO component – boolean value for monitoring |
| {#target}{controlActivities}{/target} | COSO component – boolean value for control activities |
| {#target}{controlActivityType}{/target} | COSO component – control activity type |
| {#target}{existenceOccurrence}{/target} | Financial Assertion – boolean value for existence & occurence |
| {#target}{completeness}{/target} | Financial Assertion – boolean value for completeness |
| {#target}{rightsObligations}{/target} | Financial Assertion – boolean value for rights & obligations |
| {#target}{presentationDisclosure}{/target} | Financial Assertion – boolean value presentation & disclosure |
| {#target}{valuationAllocation}{/target} | Financial Assertion – - boolean value for valuation & allocation |
| {#target}{accuracy}{/target} | Financial Assertion – boolean value under Value & Allocation for accuracy |
| {#target}{classification}{/target} | Financial Assertion – boolean value under Value & Allocation for classification |
| {#target}{timingCutOff}{/target} | Financial Assertion – boolean value under Value & Allocation for timing or cut-off |
| {#target}{postingSummarization}{/target} | Financial Assertion – boolean value under Value & Allocation for posting & summarization |
| {#target}{detailTieIn}{/target} | Financial Assertion – boolean value under Value & Allocation for detail tie-in |
| {#target}{realizableValue}{/target} | Financial Assertion – boolean value under Value & Allocation for realizable value |
| {#target}{balanceSheet}{/target} | Financial Statements Impacted – Balance Sheet |
| {#target}{retainedEarnings}{/target} | Financial Statements Impacted – Retained Earnings |
| {#target}{incomeStatement}{/target} | Financial Statements Impacted – Income Statement |
| {#target}{financialStatement}{/target} | Financial Statements Impacted – Financial Statement |
Associated Rules Tags
For rules associated with the process, include the following tags inside the object section within a loop for rules:
Example:
{#object}{#rules}{#target} {name} {/target}{/rules}{/object}
Rule Tags
| Tag | Description |
|---|---|
| {#target}{nodeType}{/target} | The type of object (rule) |
| {#target}{name}{/target} | The name of the rule |
| {#target}{version}{/target} | The version of the rule |
| {#target}{creationDate}{/target} | The creation date of the rule |
| {#target}{modificationDate}{/target} | The last modification date of the rule |
| {#target}{nodeSubTypeName}{/target} | The assigned type of the rule |
| {#target}{nodeStatus}{/target} | The status of the rule (in progress vs published) |
| {#target}{referenceNumber}{/target} | The rule’s unique identifier |
| {#target}{checkinDate}{/target} | The date of publication of the rule |
| {#target}{#checkinBy}{username}{/checkinBy}{/target} | The username of the user who last published the rule |
| {#target}{#checkinBy}{firstName}{/checkinBy}{/target} | The first name of the user who last published the rule |
| {#target}{#checkinBy}{middleName}{/checkinBy}{/target} | The middle name of the user who last published the rule |
| {#target}{#checkinBy}{lastName}{/checkinBy}{/target} | The last name of the user who last published the rule |
| {#target}{#checkinBy}{name}{/checkinBy}{/target} | The full name and username of the user who last published the rule |
| {#target}{#checkinBy}{email}{/checkinBy}{/target} | The email of he user who last published the rule |
| {#target}{#checkinBy}{phone}{/checkinBy}{/target} | The phone number of the user who last published the rule |
| {#target}{reviewFrequency}{/target} | The set review frequency for the rule |
| {#target}{nextReviewDate}{/target} | The next review date for the control |
| {#target}{#categories}{name}{/categories}{/target} | The name of the category(ies) in which the rules are grouped under |
| {#target}{source}{/target} | The source of the rule |
| {#target}{history}{/target} | The history of the rule |
| {#target}{example}{/target} | The example provided for the rule |
Associated Objective, Performance, Control & Risk Indicators Tags
Below are the tags commonly used for Objective, Performance, Control, and Risk Indicators. These tags must be included within a loop for the desired object:
{#objectives}{/objectives}: for objectives{#controlIndicators}{/controlIndicators}: for KCI{#performanceIndicators}{/performanceIndicators}: for KPI{#riskIndicators}{/riskIndicators}: for KRI
Example:
{#object}{#controlIndicators}{#target} {name} {/target}{/controlIndicators}{/object}
Objective, Performance, Control & Risk Indicators Tags
| Tag | Description |
|---|---|
| {#target}{name}{/target} | The name of the indicator |
| {#target}{version}{/target} | The version of the indicator |
| {#target}{creationDate}{/target} | The creation date of the indicator |
| {#target}{modificationDate}{/target} | The last modification date of the indicator |
| {#target}{nodeSubTypeName}{/target} | The assigned type of the indicator |
| {#target}{status}{/target} | The status of the indicator (in progress vs published) |
| {#target}{referenceNumber}{/target} | The indicator’s unique identifier |
| {#target}{checkinDate}{/target} | The publication date of the indicator |
| {#target}{#checkinBy}{username}{/checkinBy}{/target} | The username of the user who last published the indicator |
| {#target}{#checkinBy}{firstName}{/checkinBy}{/target} | The first name of the user who last published the indicator |
| {#target}{#checkinBy}{middleName}{/checkinBy}{/target} | The middle name of the user who last published the indicator |
| {#target}{#checkinBy}{lastName}{/checkinBy}{/target} | The last name of the user who last published the indicator |
| {#target}{#checkinBy}{name}{/checkinBy}{/target} | The full name and username of the user who last published the indicator |
| {#target}{#checkinBy}{email}{/checkinBy}{/target} | The email of the user who last published the indicator |
| {#target}{#checkinBy}{phone}{/checkinBy}{/target} | The phone number of the user who last published the indicator |
| {#target}{checkinComment}{/target} | The comment made at the time of the last publication |
| {#target}{#categories}{name}{/categories}{/target} | The name of the category(ies) under which the indicator is grouped under |
| {#target}{indicatorType}{/target} | The type of indicator (not compatible with objectives) |
| {#target}{thresholdTarget1}{/target} | The first threshold of the indicator (not compatible with objectives) |
| {#target}{thresholdTarget2}{/target} | The second threshold of the indicator* (not compatible with objectives) |
| {#target}{thresholdTarget3}{/target} | The third threshold of the indicator (not compatible with objectives) |
| {#target}{thresholdTarget4}{/target} | The fourth threshold of the indicator (not compatible with objectives) |
| {#target}{unit}{/target} | (not compatible with objectives) |
| {#target}{measureDate}{/target} | The last measurement date for the indicator (not compatible with objectives) |
| {#target}{measureValue}{/target} | The last measurement value for the indicator (not compatible with objectives) |
| {#target}{#performanceScore}{score}{/performanceScore}{/target} | The performance score of the indicator (not compatible with objectives) |
| {#target}{#performanceScore}{color}{/performanceScore}{/target} | The current color of the indicator (not compatible with objectives) |
Master Data Tags (Entities & Attributes)
These tags are used to display information about any master data objects associated with the process. The tags are applicable to both Entities and Attributes.
For the desired object, include the tags within a loop:
{#entities}{/entities}: for entities{#attributes}{/attributes}: for attributes
Example
{#object}{#entities}{#target} {name} {/target}{/entities}{/object}
Master Data Tags
| Tag | Description |
|---|---|
| {#target}{nodeType}{/target} | The type of object (entity or attribute) |
| {#target}{version}{/target} | The version of the object |
| {#target}{creationDate}{/target} | The creation date of the object |
| {#target}{modificationDate}{/target} | The last modification date of the object |
| {#target}{nodeSubTypeName}{/target} | The assigned type of the object |
| {#target}{nodeStatus}{/target} | The status of the object (in progress vs published |
| {#target}{referenceNumber}{/target} | The object’s unique identifier |
| {#target}{checkinDate}{/target} | The date the object was published |
| {#target}{#checkinBy}{username}{/checkinBy}{/target} | The username of the user who last published the object |
| {#target}{#checkinBy}{firstName}{/checkinBy}{/target} | The first name of the user who last published the object |
| {#target}{#checkinBy}{middleName}{/checkinBy}{/target} | The middle name of the user who last published the object |
| {#target}{#checkinBy}{lastName}{/checkinBy}{/target} | The last name of the user who last published the object |
| {#target}{#checkinBy}{name}{/checkinBy}{/target} | The full name and username of the user who last published the object |
| {#target}{#checkinBy}{email}{/checkinBy}{/target} | The email of the user who last published the object |
| {#target}{#checkinBy}{phone}{/checkinBy}{/target} | The phone number of the user who last published the object |
| {create} | Boolean value for the object’s Create permission (CRUD) |
| {read} | Boolean value for the object’s Read permission (CRUD) |
| {update} | Boolean value for the object’s Update permission (CRUD) |
| {delete} | Boolean value for the object’s Delete permission (CRUD) |
Descriptions
Descriptions can be inserted for an object in EPC. The description tags are as follows:
@@richTextDescription:{nodeId}@@ The tag should be inserted in the appropriate loop/section. For instance, to display the description of a rule associated with an EPC object:
{#objects} //open a loop for the objects array
{#object} //open a section for the object
{#rule}{#target} //specify that you want the rule associated to the object
@@richTextDescription:{nodeId}@@ //nodeId will be replaced with the ID of the rule and its description will be inserted
{/target}{/rule} //close the section/loop for rules
{/object} //close the section for the object
{/objects} //end the loop through the objects arrayThe description of objects is dependent on the Node ID. You must ensure to insert the tag in the appropriate section.
Versions
This section contains multiple objects for each version. Tags in this section must be within a loop using the versions array:
Example:
{#versions} {version} {/versions}
Versions Tags
| Tag | Description |
|---|---|
| {version} | The version of the object |
| {checkinDate} | The publication date of the object |
| {checkinBy} | An object containing information on the user who published the object |
| {#checkinBy}{username}{/checkinBy} | The username of the user who published the object |
| {#checkinBy}{firstName}{/checkinBy} | The first name of the user who published the object |
| {#checkinBy}{middleName}{/checkinBy} | The middleName of the user who published the object |
| {#checkinBy}{lastName}{/checkinBy} | The lastName of the user who published the object |
| {#checkinBy}{name}{/checkinBy} | The name of the user who published the object (FName LName (username)) |
| {#checkinBy}{email}{/checkinBy} | The email of the user who published the object |
| {#checkinBy}{phone}{/checkinBy} | The phone of the user who published the object |
Approval Entries
The approvalEntries array contains the approval cycles for an object. It may include multiple objects per approval cycle. Tags under this header should be within a loop for approval entries:
Example:
{#approvalEntries}{#user}{username}{/user}{/approvalEntries}
Approval Tags
| Tag | Description |
|---|---|
| {#target}{nodeType}{/target} | The type of object being reviewed |
| {#target}{name}{/target} | The name of the object being reviewed |
| {#user}{username}{/user} | The username of the user who approved/rejected the cycle |
| {#user}{username}{/user} | The username of the user who approved/rejected the cycle |
| {#user}{username}{/user} | The username of the user who approved/rejected the cycle |
| {#user}{username}{/user} | The username of the user who approved/rejected the cycle |
| {#user}{username}{/user} | The username of the user who approved/rejected the cycle |
| {#user}{username}{/user} | The username of the user who approved/rejected the cycle |
| {#user}{username}{/user} | The username of the user who approved/rejected the cycle |
| {comment} | The comment associated with the approval cycle |
| {status} | The status of the approval cycle (approved/rejected) |
| {entryTime} | The time of approval/rejection |
| {chainType} | The type of approval cycle (serial/parallel) |
Approval E-Signature
The Approval E-Signature tag enables organizations to define exactly where approvers’ e-signatures appear in object books. Below are the different tag formats for placing e-signatures in your template.
| Tag | Description |
|---|---|
@@signature:approver |
Inserts one signature per row. Enclose the tag within a box (mandatory). The box can be positioned anywhere in the template. Adjust signature size by modifying the box dimensions. If multiple signatures are required, they will appear side by side (to the right), maintaining the same size. |
@@signature[n=X]:approver |
Inserts multiple signatures per row. Set the n value to the desired number of signatures per row (e.g., n=2 places two signatures per row).Increasing the number of signatures per row reduces available space and may truncate approvers’ emails. Recommended Values: n=2 for standard templates, n=3 for landscape templates. |
Tag Example A: @@signature:approver
Tag Example B: @@signature[n=2]:approver
Tips & Best Practices:
- Page Break Requirement: Insert a page break immediately after the signature tag to prevent overlap with other content.
- Spacing Considerations: Ensure adequate left and right spacing within the uploaded signature image and around the signature box for optimal alignment.
- Signature Box Alignment: Center the signature tag within the rectangular box. Misalignment (e.g., if the tag is too high or too low) may cause the box or tag to appear in the final document.
- Default Placement: If no signature tag is included, the system will default to placing the signature on the second page of the document.
Properties
The properties array contains all the UDAs of the object. Each object within the array corresponds to one UDA. Tags should be included in a loop for properties:
Example:
{#properties} {attributeName}: {attributeValueText} {/properties}
Properties tags
| Tag | Description |
|---|---|
| {attributeName} | The name of the attribute |
| {attributeValueText} | The text or number value of single value attributes |
| {mandatory} | Boolean for whether the attribute is mandatory |
| {type} | The type of UDA (Duration, Number, Text, Multi List, Currency) |
| {listItems} | Array for values of the UDA for Multi List attributes |
| {#listItems}{indexOrder}{/listItems} | The index order of the multi-value attribute |
| {#listItems}{defaultSelection}{/listItems} | Boolean indicating if this UDA is mandatory |
| {#listItems}{name}{/listItems} | The selected value(s) of the UDA |
Impact
The impacts object contains the impacts of an EPC object. These impacts exclude direct associations since they are already present in the object. Tags in this table should be included within the “impact” section and looped through the appropriate object type:
Example:
{#impact}{#processes} {name} {/processes}{/impact}
Object types include:
- Process: {#processes}…{/processes}
- Flow Objects: {#flowObjects}…{/flowObjects}
- Materials: {#materials}…{/materials}
- Documents: {#documents}…{/documents}
- Org Units: {#orgUnits}…{/orgUnits}
- Roles: {#roles}…{/roles}
- Resources: {#resources}…{/resources}
- Assets: {#assets}…{/assets}
- Objectives: {#objectives}…{/objectives}
- KCIs: {#controlIndicators}…{/controlIndicators}
- KPIs: {#performanceIndicators}…{/performanceIndicators}
- KRIs: {#riskIndicators}…{/riskIndicators}
- Rules: {#rules}…{/rules}
- Risks: {#risks}…{/risks}
- Controls: {#controls}…{/controls}
- Entities: {#entities}…{/entities}
- Attributes: {#attributes}…{/attributes}
Impact Tags
| Tag | Description |
|---|---|
| {nodeType} | The impacted EPC Object type |
| {name} | The name of the impacted EPC Object |
| {nodeStatus} | The status (published vs in progress) of the impacted EPC Object |
| {parent} | Object of the parent of the impacted EPC Object |
| {#parent}{name}{/parent} | The name of the parent |
| {#parent}{nodeType}{/parent} | The object type of the parent |
Improvement Requests (Now Called Change Requests)
The improvementRequests array contains IRs raised on the EPC Object. Only IRs with the status “To Implement” will appear in this array. Tags should be included within the section for Improvement Requests:
Example:
{#improvementRequests} ...{subject}... {/improvementRequests}
Improvement Request (Change Request) tags
| Tag | Description |
|---|---|
| {#author}{username}{/author} | The username of the IR author |
| {#author}{firstName}{/author} | The first name of the IR author |
| {#author}{lastName}{/author} | The flast name of the IR author |
| {#author}{middleName}{/author} | The middle name of the IR author |
| {#author}{name}{/author} | The full name + username of the IR author |
| {#author}{email}{/author} | The email name of the IR author |
| {#author}{phone}{/author} | The phone name of the IR author |
| {#target}{nodeType}{/target} | The type of object the IR was raised on |
| {#target}{name}{/target} | The name of the object the IR was raised on |
| {nodeStatus} | The status (published vs in progress) of the impacted EPC Object |
| {postDate} | The IR’s date of posting |
| {subject} | The IR’s subject line |
| {postType} | The collaboration type (IMPROV_REQ in this case) |
| {systemId} | The IR’s unique identifier (the format will follow IR-YYYY-## where YYYY is the year and ## is the number of the IR |
| {status} | The current status of the IR |
| {priority} | The priority of the IR |
| {impact} | The impact of the IR |
| {value} | The value of the IR |
| {numberOfReplies} | The number of replies on the IR |
| {#fileInfos}{name}{/fileInfos} | The name of the attached file |
| {#fileInfos}{contentLength}{/fileInfos} | The file size (in bytes) of the attached file |
| {#fileInfos}{extension}{/fileInfos} | The extension of the attached file (.docx, .jpeg, .png, etc) |
| {description} | The description of the IR |
| {#children}…{/children} | Replies to the IR* |
Haben Sie noch weitere Fragen?
Visit the Support Portal
